42 GS 461

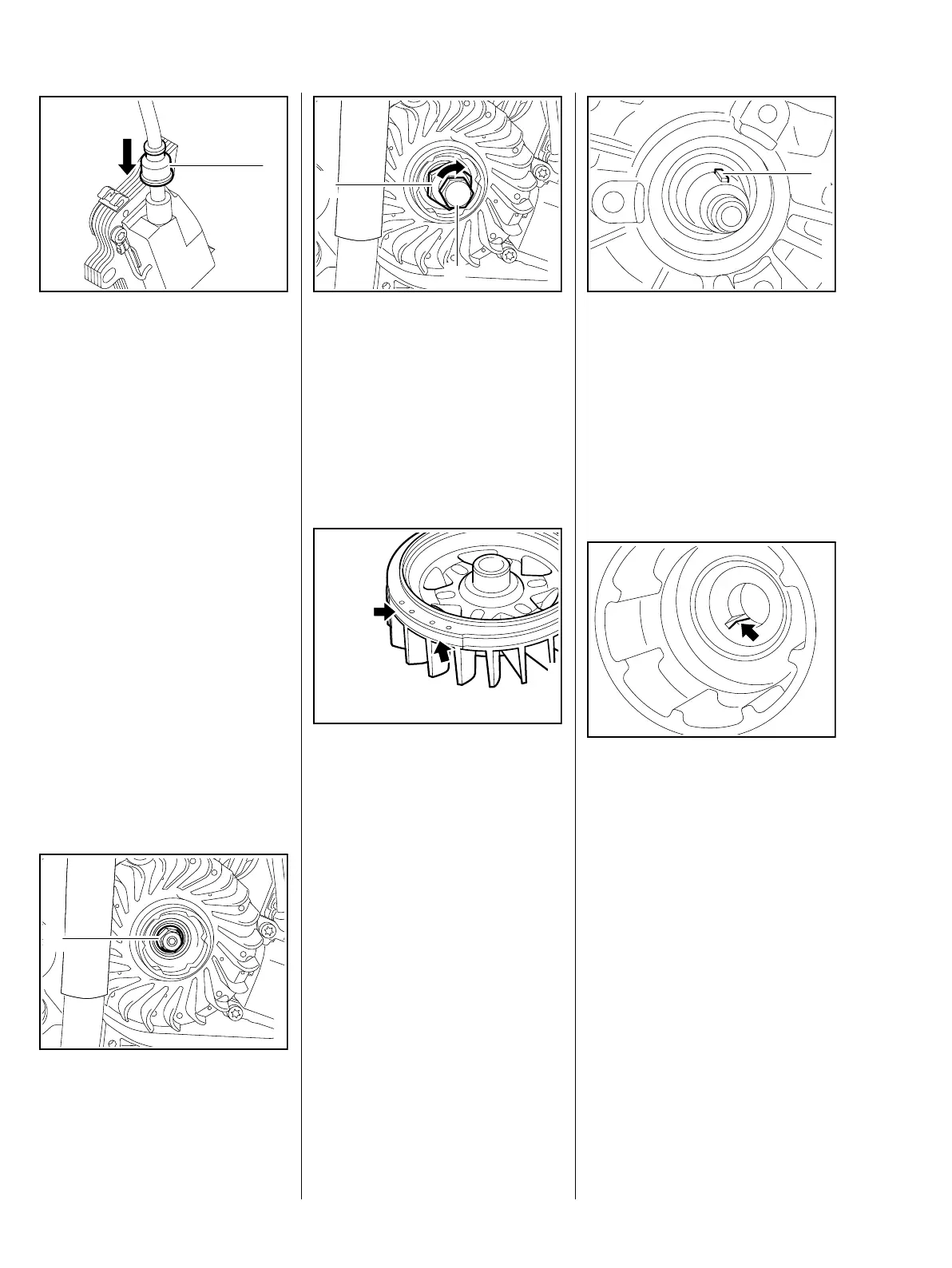

– Push grommet (1) onto ignition
lead
– Screw the ignition lead into the
ignition module.
: Push on the grommet (1)
– Install the ignition module and
adjust the air gap between
ignition module and flywheel,
b 6.2
– Reassemble remaining parts in
reverse order
6.5 Flywheel
– Remove shroud, b 5.4
– Remove starter, b 7.2
– Block the piston with the locking
strip, b 4.2
: Unscrew the flywheel nut (1)
3443RA186 TG
1
3443RA196 TG
1
: Screw puller (1) 1110 890 4500
as far as it will go into the flywheel
: Turn screw (2) clockwise until the
flywheel comes off the crankshaft
stub
– Unscrew puller (1)
1110 890 4500 from flywheel
: Flywheel and magnet poles
(arrows) must not show any signs
of damage or blue discoloration,
otherwise the flywheel must be
replaced
3443RA197 TG
1
2
3443RA198 TG
: Check the woodruff key (1),
replace if necessary
: Make sure that the woodruff
key (1) is properly seated, align if
necessary
Connection between crankshaft and
flywheel must be degreased and oil-
free
If the groove is worn (arrow),
replace the flywheel.
Ensure that the woodruff key
engages in the groove (arrow).
– Adjust the air gap between
ignition module and flywheel,
b 6.2
– Reassemble remaining parts in
reverse order
3443RA200 TG
1
3443RA201 TG
