Stihl GS 461 - Pin; hand guard

18 GS 461

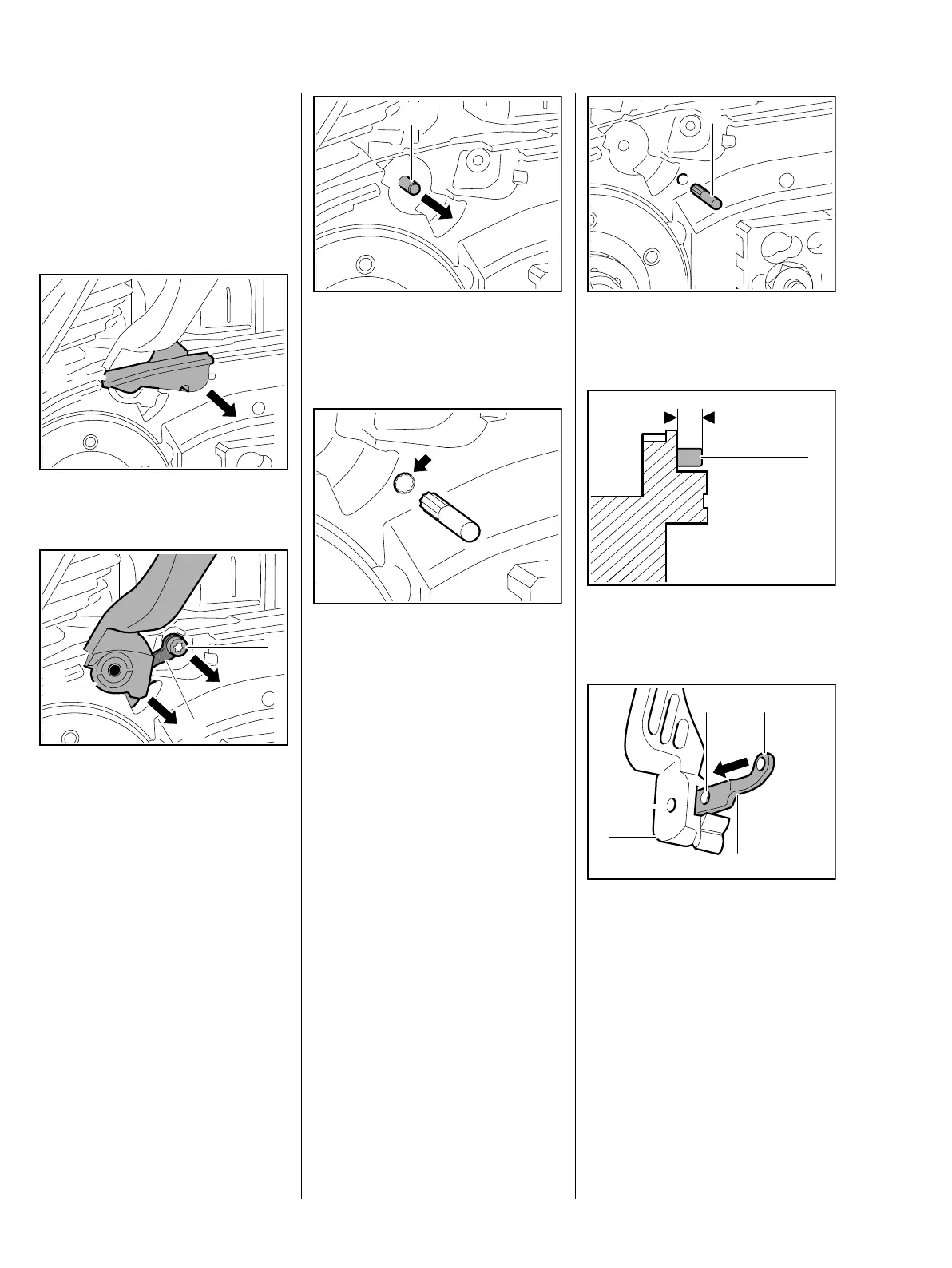

4.3 Pin / hand guard
The pin ensures that the hand guard
is securely mounted. If it is worn,
replace the pin.
– Remove starter, b 7.2
: Pull out rubber buffer (1)
: Unscrew the screw (1)
: Draw hand guard (2) with
insert (3) off the pivot pin
simultaneously
– Pull insert out of hand guard
– Remove washer
1
2411RA006 TG2411RA007 TG
1
2
3
: Disassemble bolt (1)
Installation
– Coat the knurled area of the new
pin with Loctite before fitting the
pin, b 12
: The pin must be inserted in the
hole (arrow) so that the knurling
on the pin engages the knurled
profile
Turn the pin back and forth slightly
until it fits.
The pin must be driven in square.
2411RA008 TG
1
2411RA009 TG
: Drive in pin (1) in accordance
with the following information
: Pin (1) a =
approx. 10.3...10.5 mm
: Orient insert (1) so that the
tab (2) is at the top
: Slide insert (1) into recess in
hand guard (3) until the holes (4)
and (5) are lined up
2411RA010 TG
1
a
1
2411RA011 TG
2411RA012 TG
1
25
4
3
