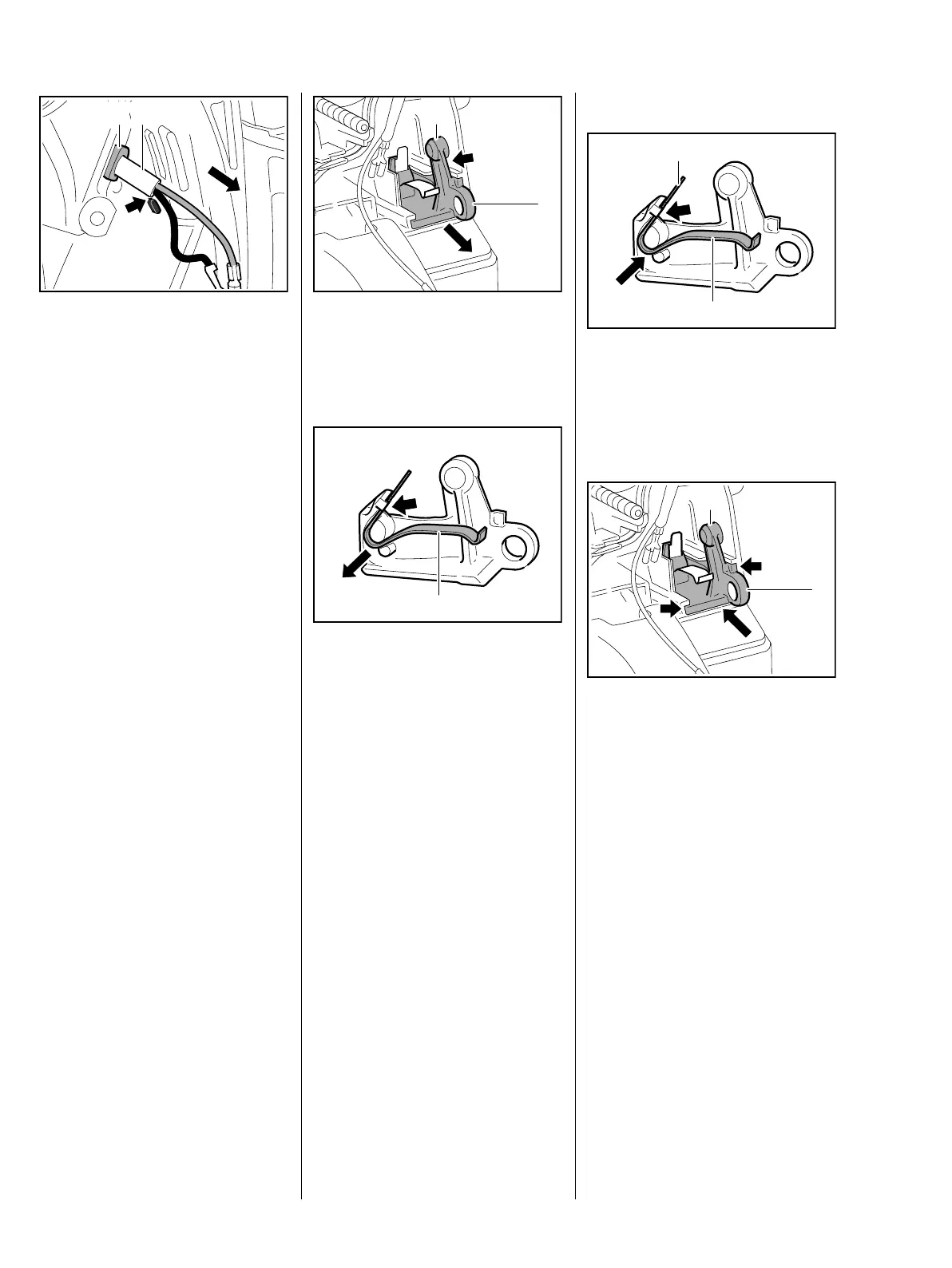

Grommet (1) must be pushed on.
– Use STIHL press fluid to simplify
assembly, b 12
: Push wiring harness (2) through
the opening and press
grommet (1) completely into the
opening
: Pull wiring harness (2) further in
until the start of the protective
tube is at the fin (arrow)
– Install ignition module, b 6.2
– Reassemble remaining parts in
reverse order
6.6.4 Contact spring
– Remove throttle rod, b 9.3
– Remove switch shaft, b 9.1
– Remove ground wire
3443RA461 TG
1 2
: At the recess (arrow), lift tab (1)
until the peg no longer engages
in the housing wall and pull out
switch housing (2)
: Lift contact spring (1) over the tab
(arrow) and pull out of guide
– Check contact spring and switch
housing, replace if necessary
2411RA067 TG
2
1
2411RA068 TG
1
Installation
: Push contact spring (1) into the
guide so that the connector
tab (2) faces upwards – contact
spring (1) must be behind the tab
(arrow)
: Push switch housing (1) into the
guide (arrows) until the peg of the
tab (2) engages in the hole of the
housing wall – switch housing is
secured
– Install switch shaft, b 9.1
2411RA069 TG
1
2
2411RA070 TG
1
2
