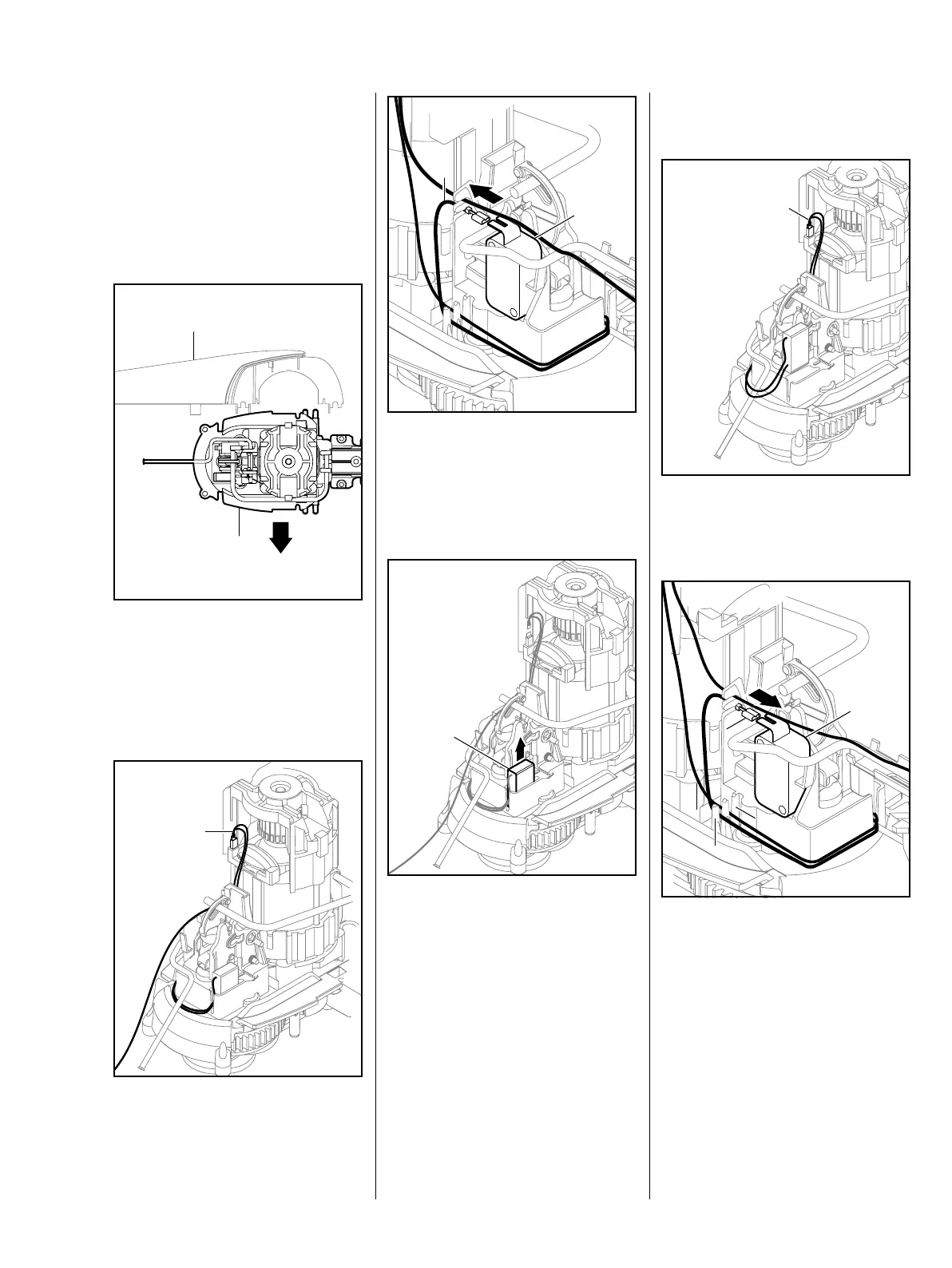

9HSE 61, HSE 71, HSE 81
3.4.3 Removing the wiring
harness with capacitor
Open the housing, b 6.1.
Open the rear handle, b 6.4.1.
Disassemble the rear handle,
b 6.4.2.
: Take the gear housing (1) with its
components out of the motor
housing (2). Pull off the gearbox
housing (1) in the direction of the
arrow.
: Disconnect the black wire (1)
from the motor.
2
1
1
Disconnect the blue wire from the
switch (2).
: Disconnect the black wire (1)
from the switch (2).
: Remove the capacitor (1) from its
holder in the direction of the
arrow.
1
2
1
3.4.4 Installing the wiring
harness with capacitor
: Connect the black wire (1) to the
motor.
: Connect terminal socket of black
wire (1) to switch (2) and push it
together with wire (3) into the
retaining slots (4) (see
illustration).
1
2
1
3
4
4
