18 HSE 61, HSE 71, HSE 81
4.2 Servicing the Cutting
Attachment

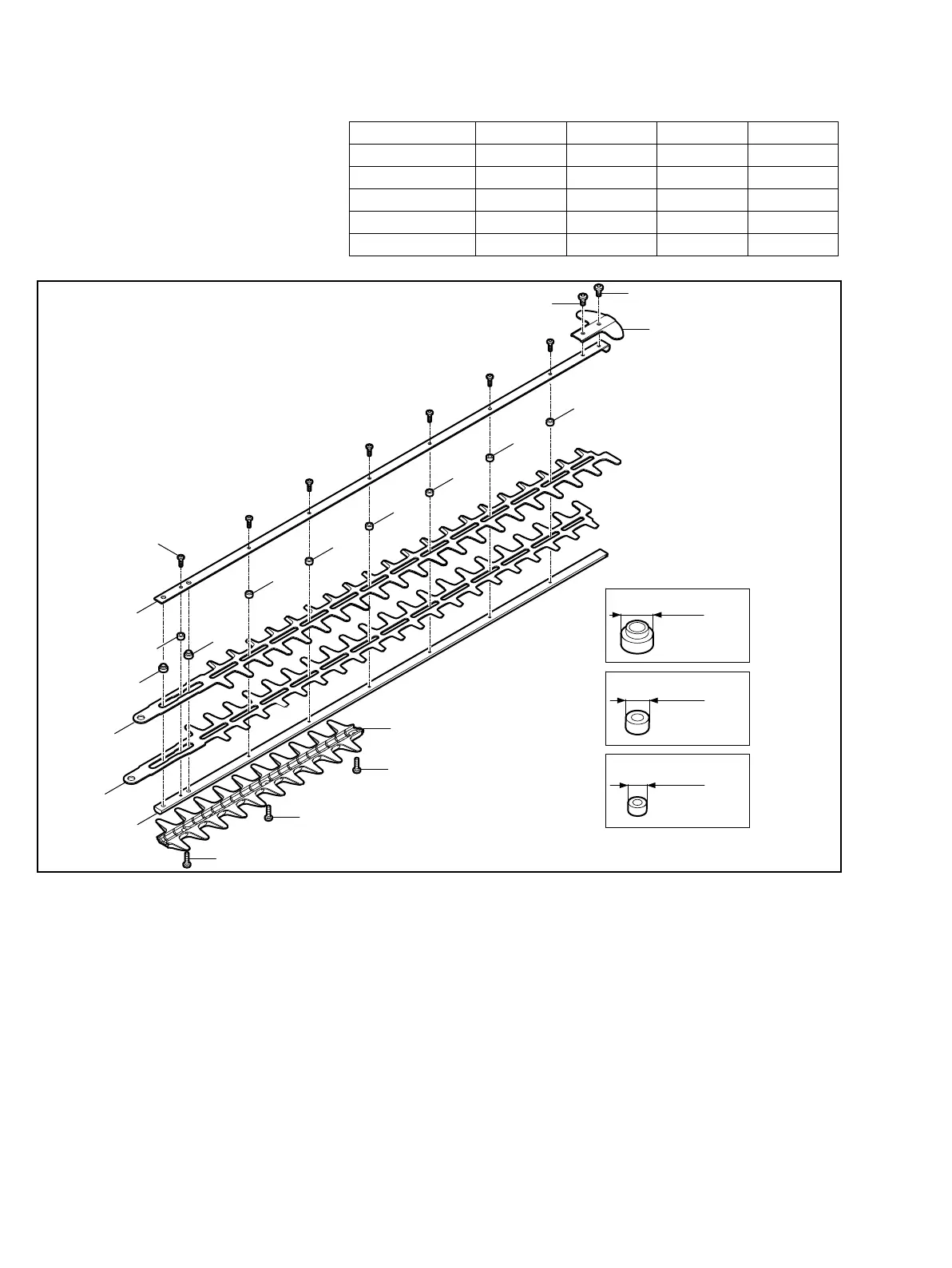

4.2.1 Disassembling the
cutting attachment
– Remove the cutting attachment,
b 4.1.1.
: Loosen the screws (4).
: Loosen the screws (9) and
remove the tip guard (6).
Only one screw (9) needs to be
removed on units up to serial
number 9 72 318 871
(TI 09.2006).
: Remove the guide (5).
: Lift away the blade (7) and blade
(8) separately.
: Remove the sliders (1), (2) and
(3) (for quantities of sliders (1),
(2) and (3) see table).
: Take out the screws (12) and
remove the cutter guard (11)
(HSE 81).
4
5
2
3
3
3
3
3
3
9
9
6
1
1
7
8
10
11
12
12
12
10mm
8mm
7mm
A
B
C12
1234
HSE 61 2xA 1xC 4xB 5x
HSE 71 2xA 1xC 5xC 6x
HSE 71 2xA 1xC 6xC 7x
HSE 81 2xA 1xC 5xC 6x
HSE 81 2xA 1xC 6xC 7x
