Stihl HSE 81

55HSE 61, HSE 71, HSE 81

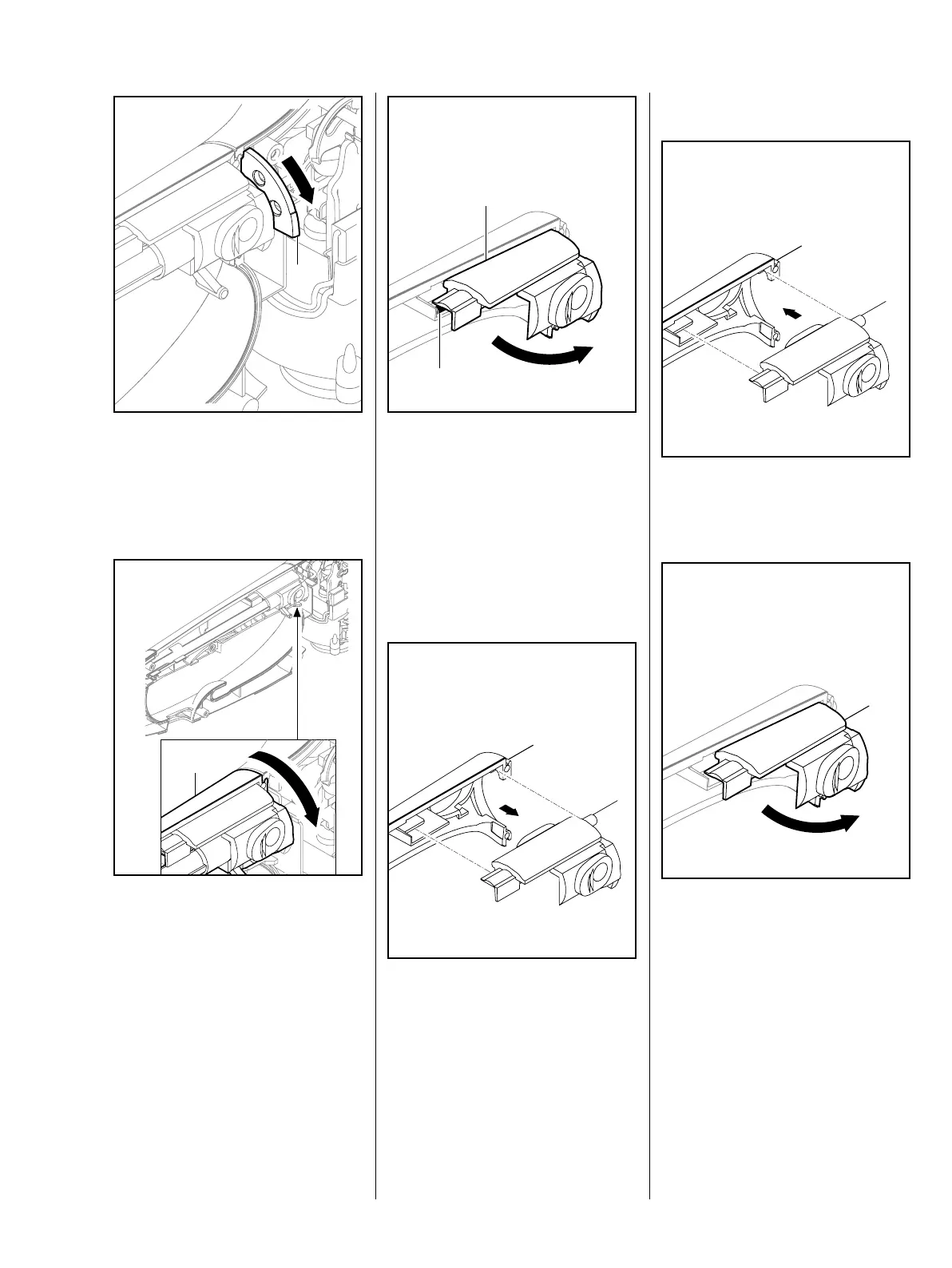

: Rotate the quadrant (1) in
direction of arrow and remove it
from the housing.
– Release the slide.
: Rotate handle molding with slide
(1) 90° as shown and lift it away.
1
1
Important:
The spring is under tension. Take
care to ensure that the spring
does not pop out.
: Turn the slide (1) slightly in the
direction of the arrow.
: Take the spring (2) out of the
slide.
: Remove the slide (1) from the
handle molding (2).
1
2
2
1
7.6.2 Installing the slide
: Place the slide (1) in the handle
molding (2).
: Turn the slide (1) slightly in the
direction of the arrow.
2
1
1
