Stihl HSE 81 User Manual

6 HSE 61, HSE 71, HSE 81

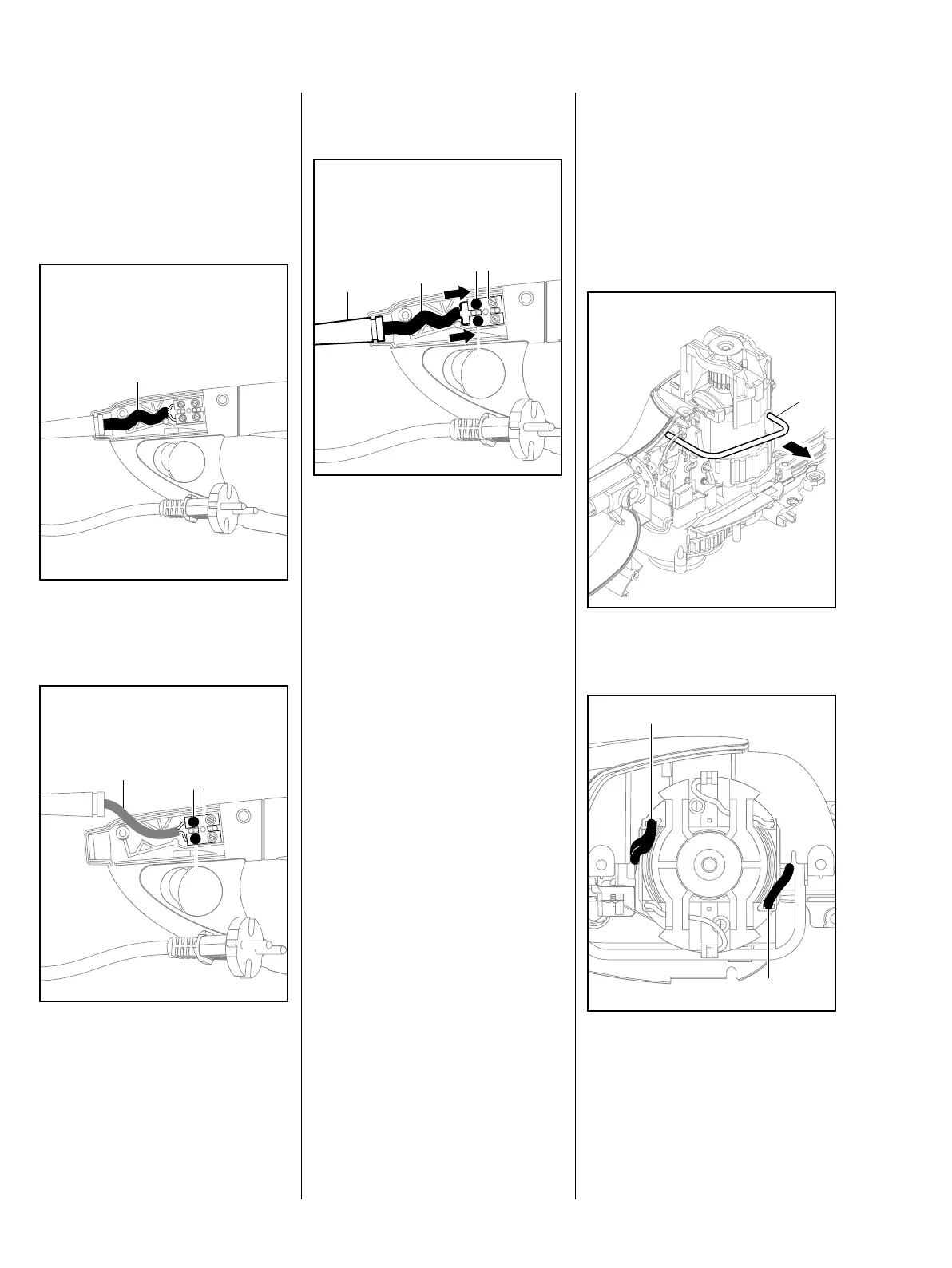

3.2 Replacing the
Connecting Cord
3.2.1 Removing the
connecting cord
– Remove the cap, b 6.1.3.
: Lift the connecting cord (1) out of
the housing.
: Loosen the screws (3) on
terminal block (2) to disconnect
the connecting cord (1).
: Remove the connecting cord (1).
1
1
3
3
2
3.2.2 Installing the connecting
cord
: Secure the connecting cord (1) to
the terminal block (2) by
tightening down the screws (3)
(0.5 Nm).
: Fit the terminal block (2) in the
housing.
: Position the connecting cord (1)
in the strain relief guide as shown
in the illustration.
: Engage the cord protector (4) in
the end of the handle.
– Fit the cap, b 6.2.3.
4
1
32
3
3.3 Replacing the Motor
3.3.1 Removing the motor
– Remove the cutting attachment,
b 4.1.1.
– Open the housing, b 6.1.
– Expose the drive gear, b 6.1.1.
: Remove the front switch rod (1).
: Disconnect the blue wire (1) and
black wire (2) from the motor.
1
2
1

Stihl HSE 81 Specifications

General

Blade size	700 mm
Blade type	Double blade
Cutting length	500 mm
Sound power level	96 dB
Vibration emission	2.9 m/s²
Sound pressure level	85 dB
Engine power	650 W
Power source	AC
AC input voltage	230 - 240 V

Weight and Dimensions

Depth	1330 mm
Weight	4100 g
