Stihl HSE 81

46 HSE 61, HSE 71, HSE 81
7. Switch Components
7.1 Replacing the switch
lever
– Service the rear handle, b 6.4.
7.2 Servicing the control unit
7.2.1 Disassembling the
control unit
– Open the housing, b 6.1.
– Expose the drive gear, b 5.1.1.
– Open the rear handle, b 6.4.1.
– Disassemble the rear handle,
b 6.4.2.

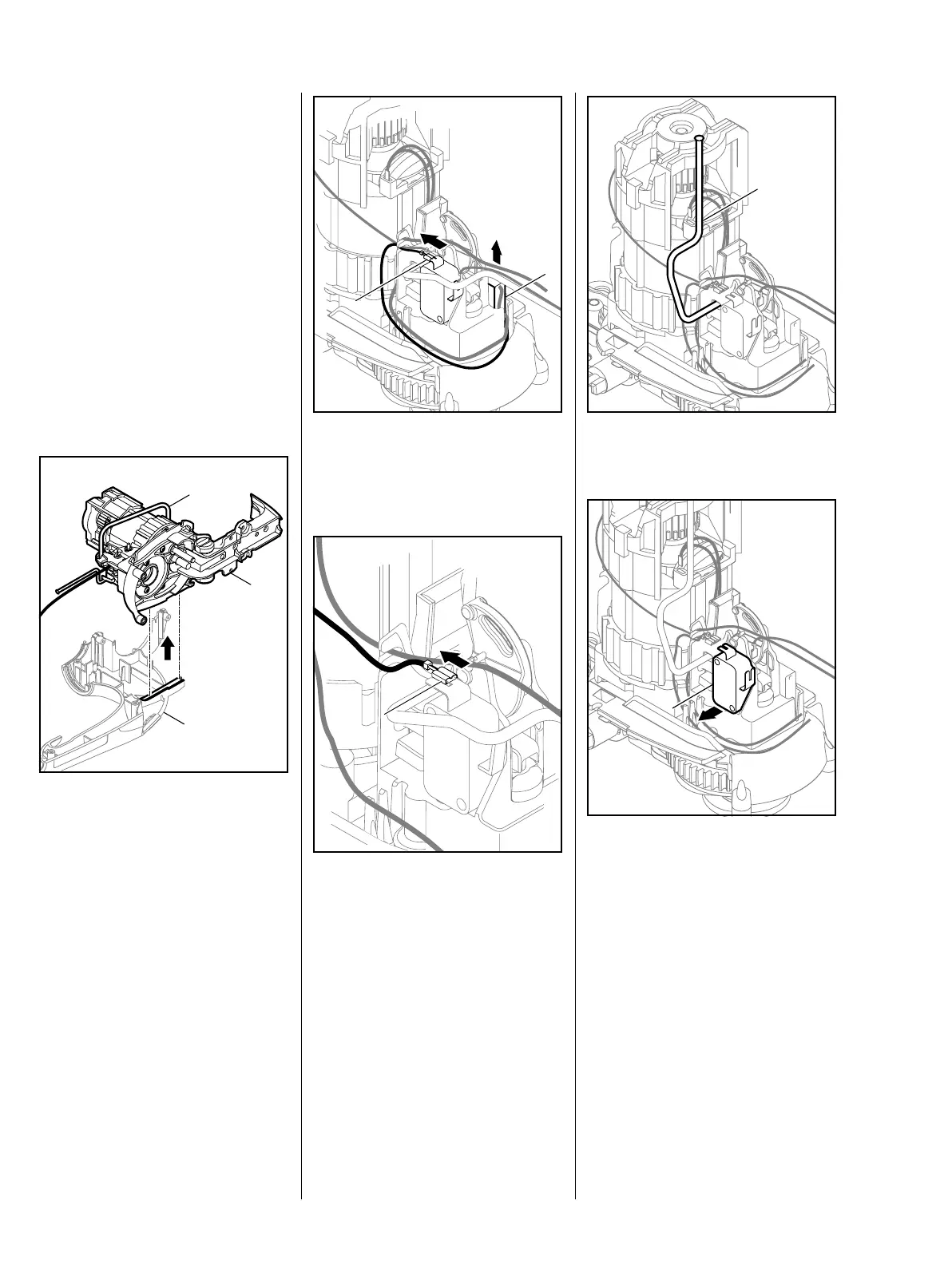

: Take the gear housing (1) with its
components out of the motor
housing (2).
: Remove the switch rod (3).
3
1
2
: Remove the capacitor (1) and
disconnect the wire (2) from the
microswitch (3).
: Disconnect the blue wire (1) from
the microswitch.
1
2
3
1
: Swing the rod (1) up.
: Remove the microswitch (1) from
the control unit.
1
1
