7HSE 61, HSE 71, HSE 81

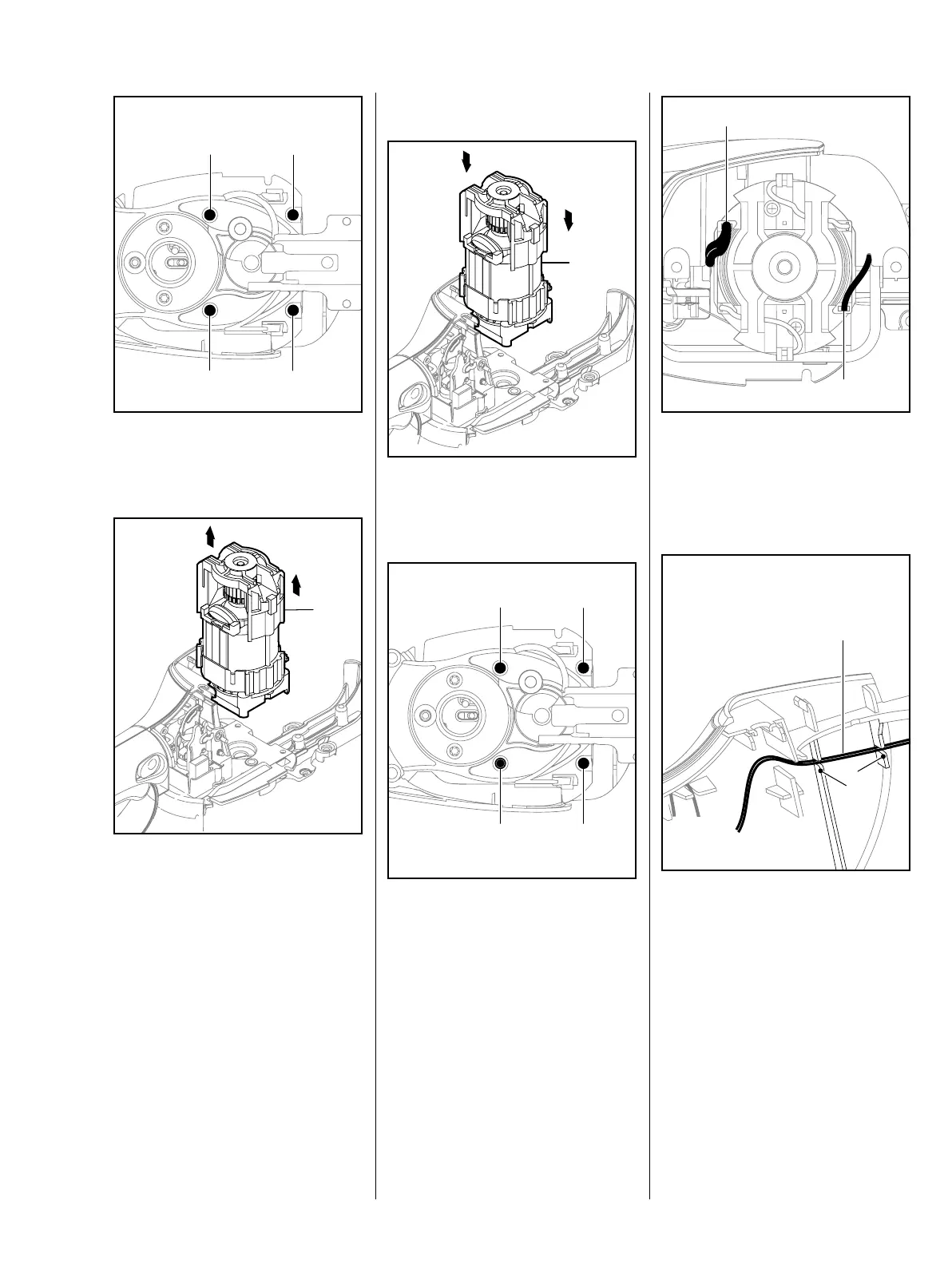

: Take out the motor mounting
screws (1).
: Remove the motor (1) in direction
of arrows.
11
1
1
1
3.3.2 Installing the motor
: Fit the motor (1) in direction of
arrows.
: Insert the motor mounting screws
(1) and tighten them down firmly
to a torque of 1.5 Nm.
1
1
1
1
1
: Connect the blue wire (1) at the
front side of the motor and the
black wire (2) at the rear of the
motor (see illustration).
: Push the blue wire (1) into the
two slots (2) in the housing and
secure in position.
– Install the drive gear, b 5.1.5.
– Close the housing, b 6.2.
2
1
1
2
2

Stihl HSE 81 Specifications

General

Blade size	700 mm
Blade type	Double blade
Cutting length	500 mm
Sound power level	96 dB
Vibration emission	2.9 m/s²
Sound pressure level	85 dB
Engine power	650 W
Power source	AC
AC input voltage	230 - 240 V

Weight and Dimensions

Depth	1330 mm
Weight	4100 g
