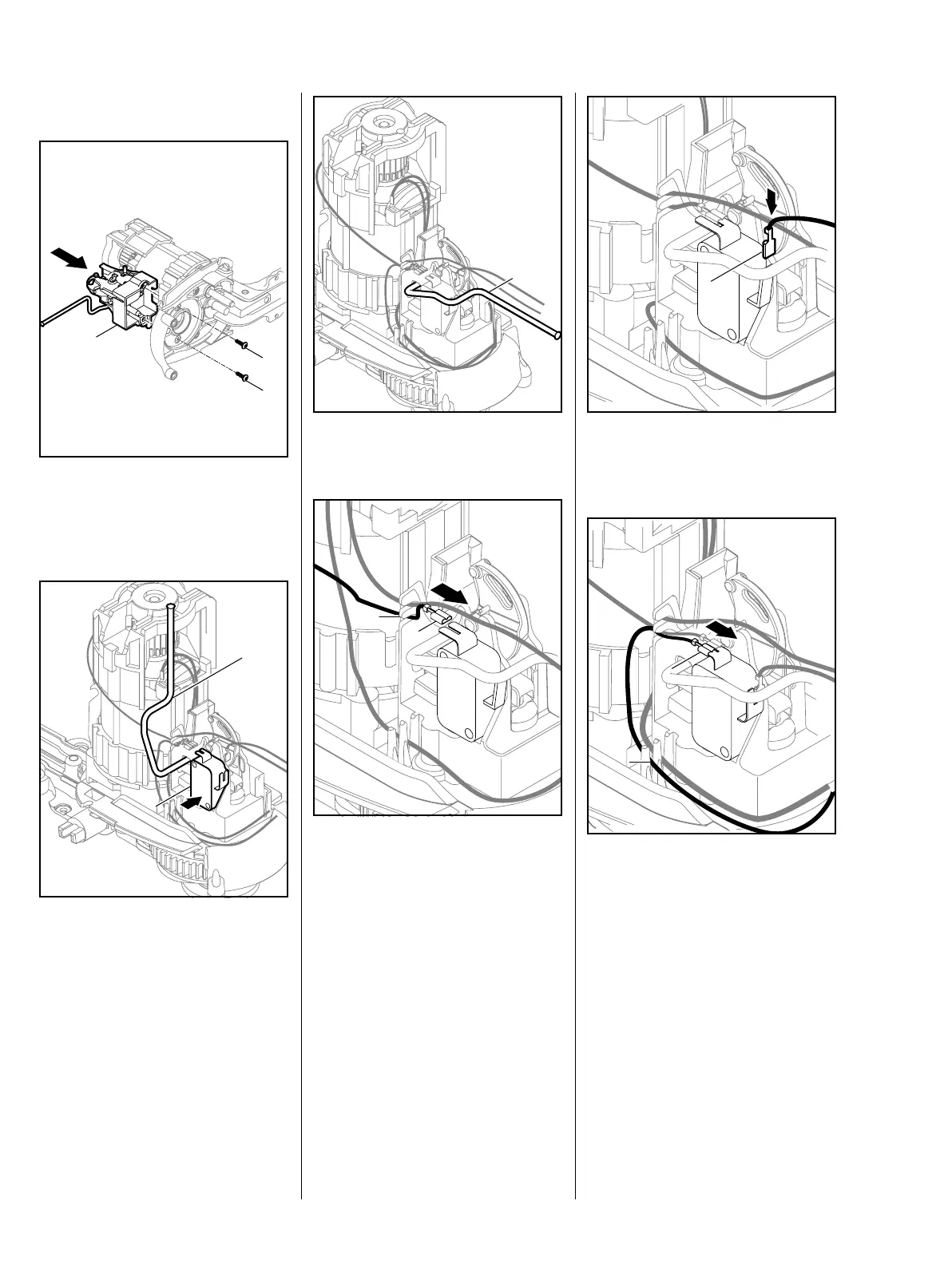

7.2.4 Mounting the control unit
: Secure the control unit (1) to the
gear housing with screws (2)
(1.5 Nm).
: With the rod (2) upright, fit the
microswitch (1) in the control unit.
1
2
2
2
1
(
: Swing the rod (1) down.
: Connect terminal socket of blue
wire (1) to the switch and push
the wire into the slot (2).
1
1
2
: Connect the blue wire (1) to the
microswitch.
: Connect terminal socket of black
wire (1) to the switch and push
the wire into the slot (2).
1
1
2
