49HSE 61, HSE 71, HSE 81

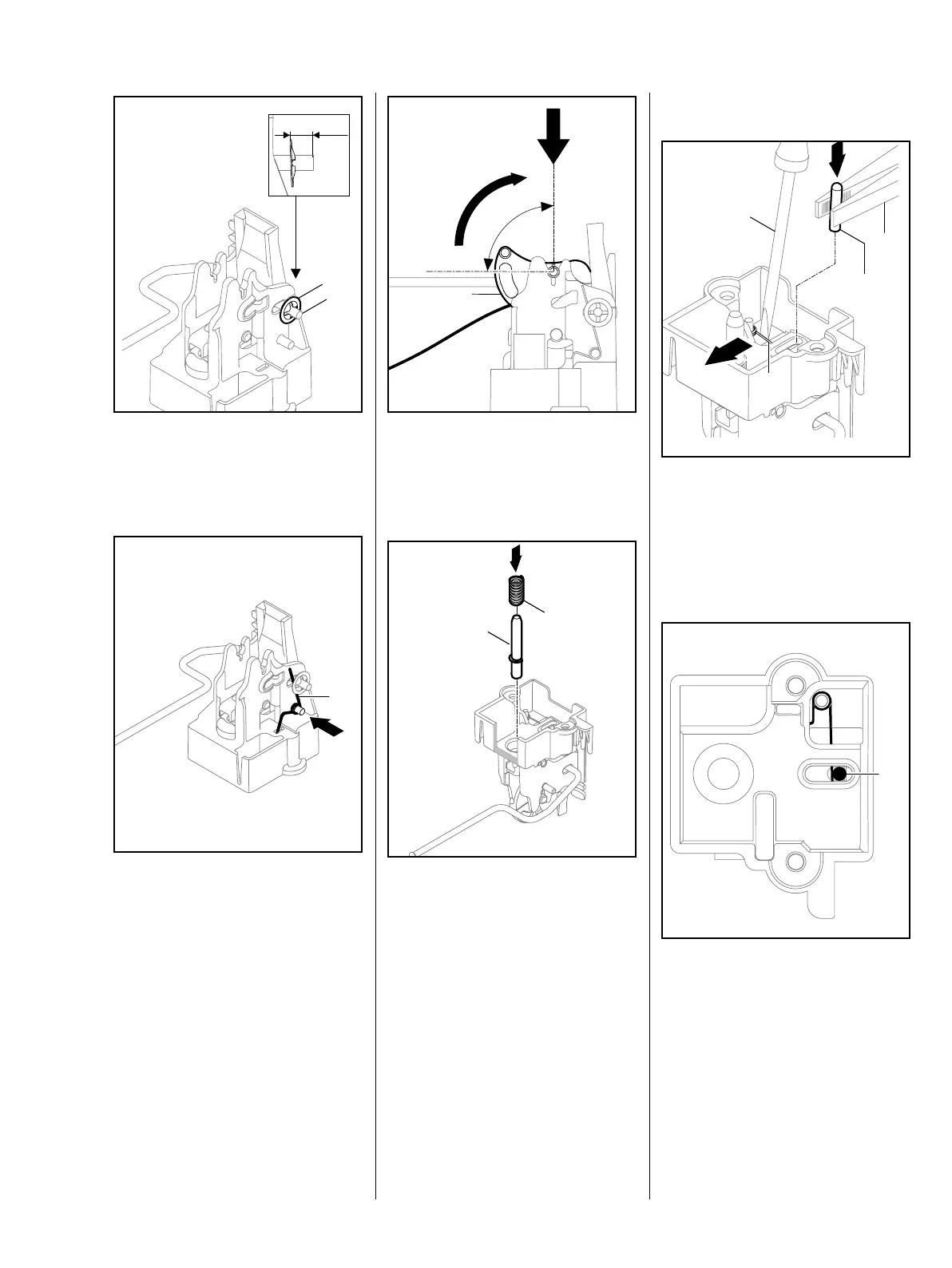

: Push the Starlock locking ring (1)
on to the rod (2). Distance A must
be 5.5 mm.
: Attach the spring (1) and engage
it behind the Starlock locking ring
on the rod.
A
1
2
1
– Connect the cable to the rocker.
: Fit the rocker (1) in the control
unit and rotate it 90° forwards.
: Insert the coupling pin (1) from
below.
: Fit the spring (2) on coupling pin
(1).
– Install the switch pin, b 7.2.3.
– Mount the control unit, b 7.2.4.
1
90°
2
1
7.2.3 Installing the switch pin
: Use a screwdriver (1) to tension
the spring (2) in the direction of
the arrow.
: Use pliers (4) to insert the switch
pin.
: Check that the switch pin (1) is
properly installed in the control
unit.
1
4
3
2
1
