20 HSE 61, HSE 71, HSE 81
: Assemble the blades (7 + 8) with
the screws (4).
: Place the tip guard (6) on the
cutting attachment and secure it
with the two screws (9). Only one
screw (9) needs to be fitted on
units up to serial number
9 72 318 871 (TI 09.2006).
: Mount the cutting attachment,
b 4.1.2.
4.3 Sharpening the blades
– Remove the cutting attachment,
b 4.1.1.
– Disassemble the cutting
attachment, b 4.2.1.
: Sharpen the blades (1) with the
USG sharpener – see USG
instruction manual.
1
A
A
Z
Y
X

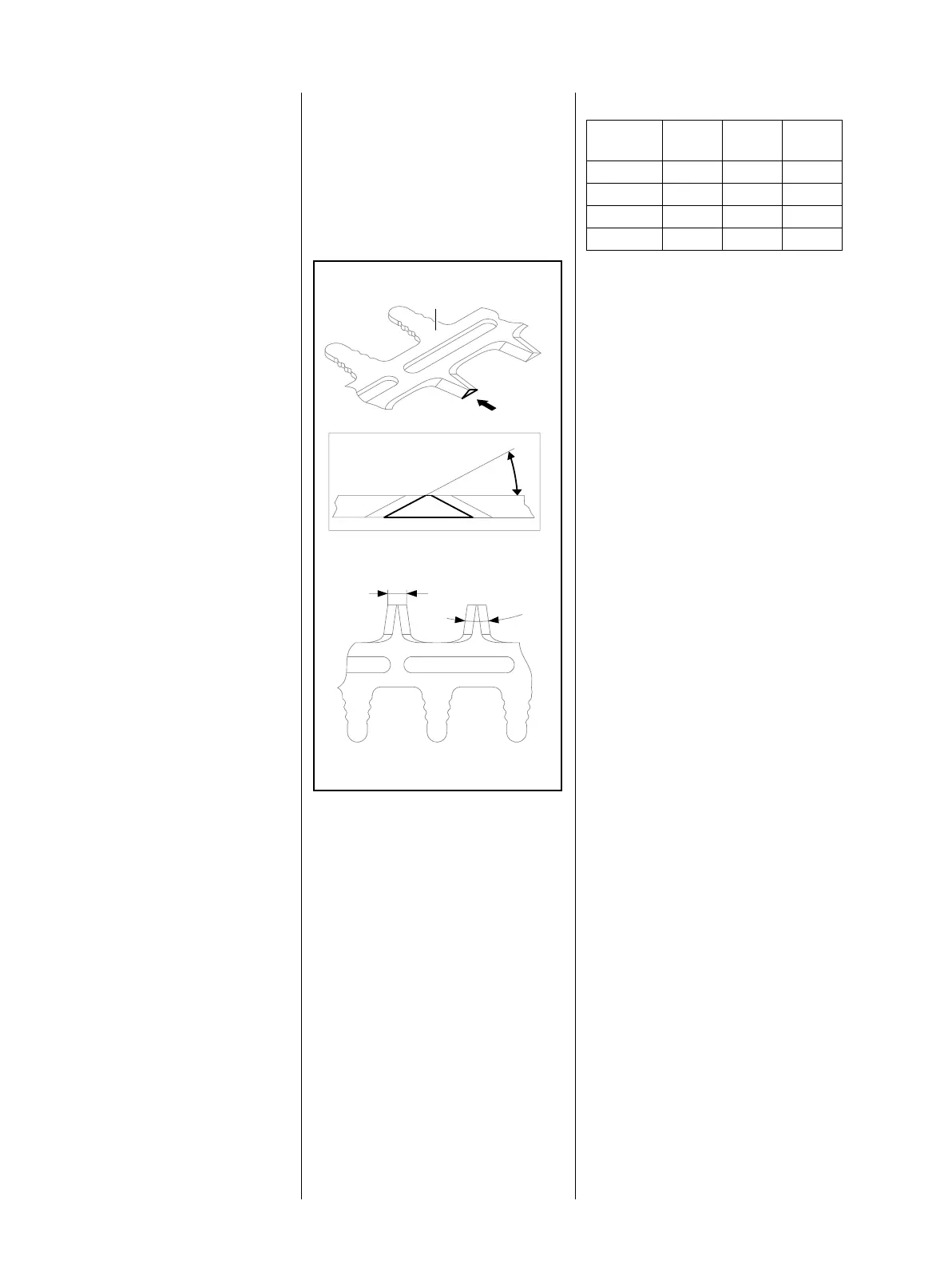

Scale settings:
Important:
The blades (1) must not be
sharpened by surface grinding
since it would reduce the
thickness of the blades and
greatly reduce their wear life.
– Assemble the cutting attachment,
b 4.2.2.
– Mount the cutting attachment,
b 4.1.2.
Scale
HSE
61
HSE
71
HSE
81
A - 8° - 8° - 10°
B 000
C left + 55° + 62° + 45°
C right - 55° - 62° - 45°

Stihl HSE 81 Specifications

General

Blade size	700 mm
Blade type	Double blade
Cutting length	500 mm
Sound power level	96 dB
Vibration emission	2.9 m/s²
Sound pressure level	85 dB
Engine power	650 W
Power source	AC
AC input voltage	230 - 240 V

Weight and Dimensions

Depth	1330 mm
Weight	4100 g
