13HSE 61, HSE 71, HSE 81

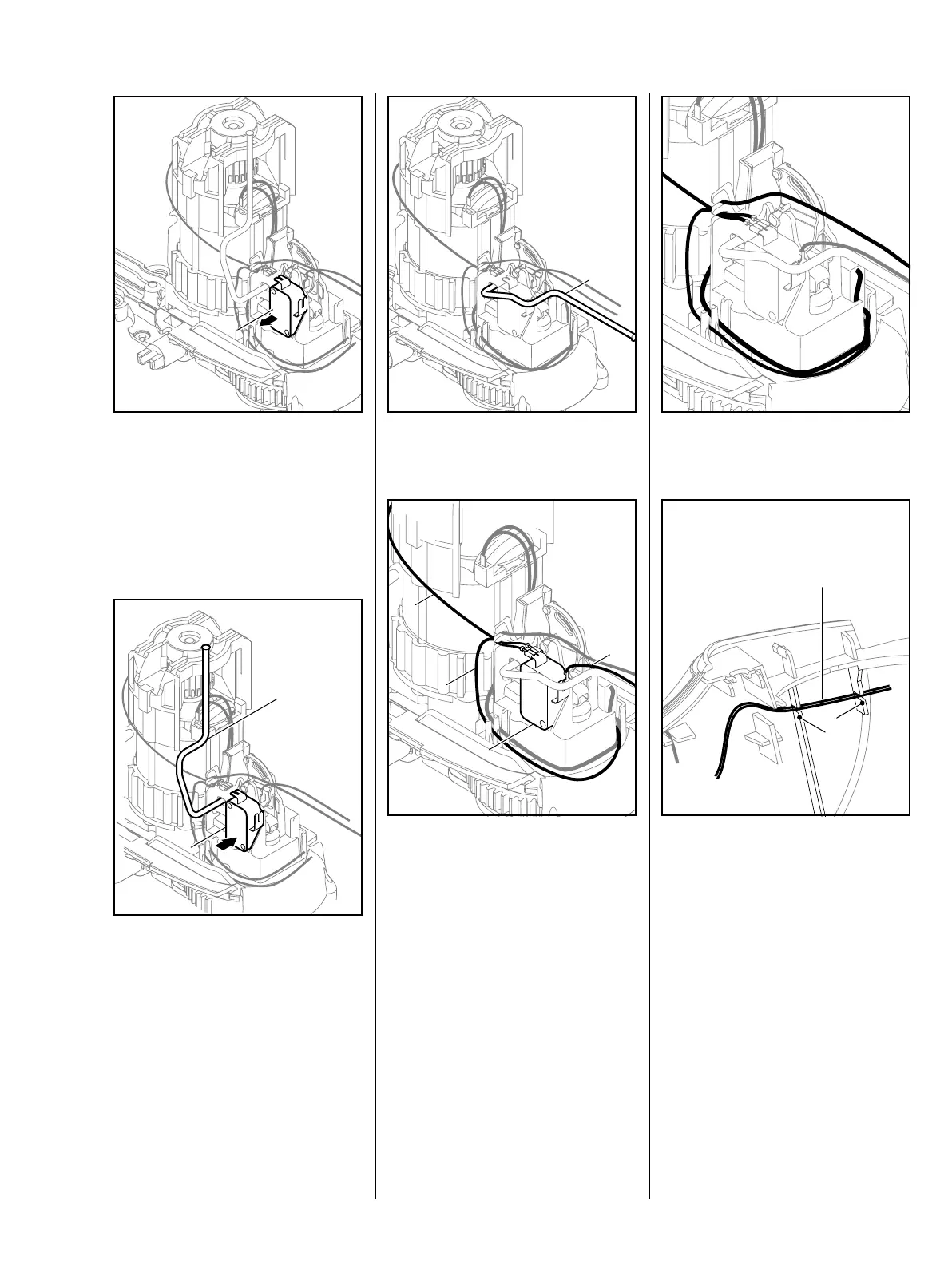

: Remove the microswitch (1) from
the control unit (pull in direction of
arrow).
3.4.8 Installing the
microswitch
: With the rod (2) upright, fit the
microswitch (1) in the control unit.
1
2
1
: Swing the rod (1) down.
: Connect terminals of the wires (1
– 3) to the microswitch (4).
Wire 1: blue
Wire 2: black
Wire 3: blue
1
1
2
4
3
: Engage the wires in the slots.
: Push the blue wire (1) into the
two slots (2) in the housing and
secure in position.
1
2
2

Stihl HSE 81 Specifications

General

Blade size	700 mm
Blade type	Double blade
Cutting length	500 mm
Sound power level	96 dB
Vibration emission	2.9 m/s²
Sound pressure level	85 dB
Engine power	650 W
Power source	AC
AC input voltage	230 - 240 V

Weight and Dimensions

Depth	1330 mm
Weight	4100 g
