Lifting

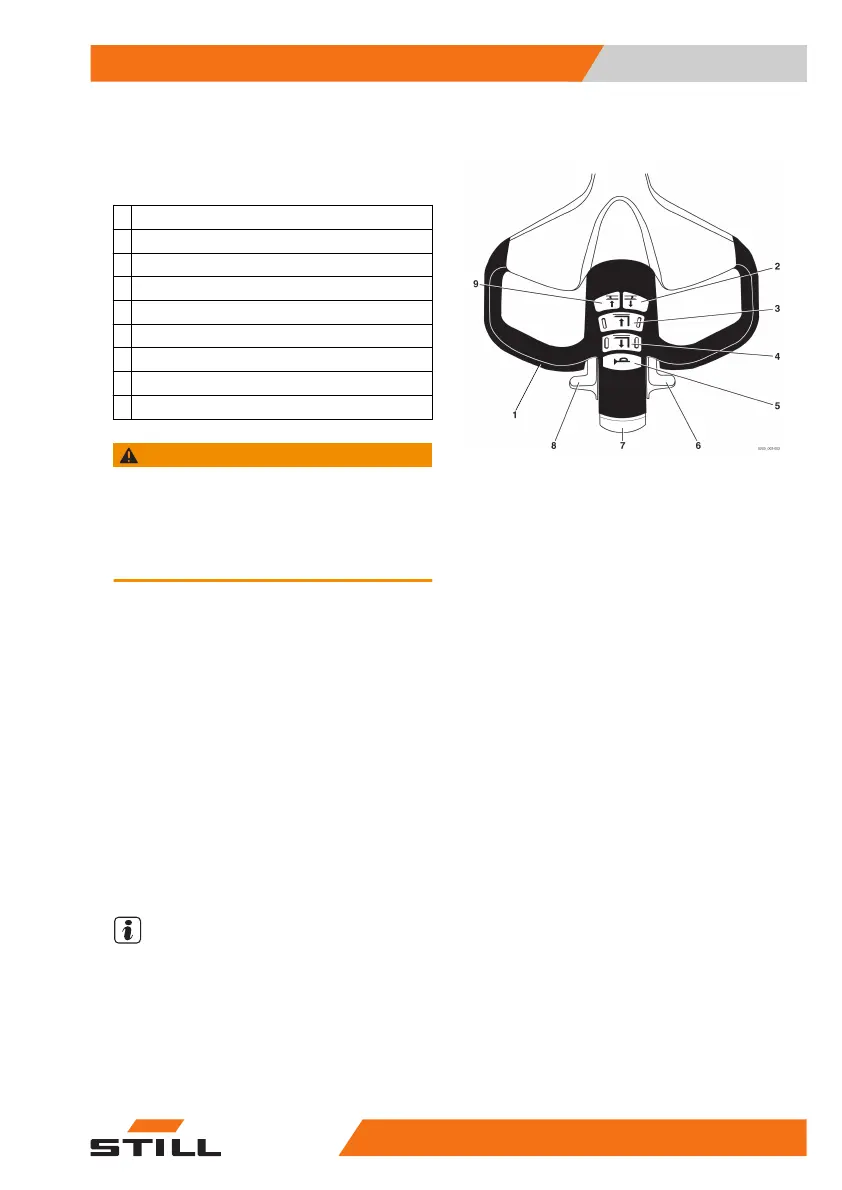

Lift control elements
1 Tiller head handle
2 Straddle lifting button (optional)
3 Fork lowering button
4 Fork lifting button
5 Horn button
6 Drive control throttle
7 Anti-crush button
8 Drive control throttle
9 Straddle lowering button (optional)
WARNING
Risk of injury!
The safety instructions must be strictly adhered to.
It is strictly forbidden to touch or stand on moving
parts (e.g. lifting device, pushing devices, work in-
stallations, load lifting devices).
Fork lifting
– Press the button (4).
The forks will be lifted up to the maximum
height.
Fork movement can be stopped at any time by
releasing the push-button.
Fork arms lowering
– Press the button (3).
The fork descends to the lowest position. Fork
movement can be stopped at any time by re-
leasing the push-button.
NOTE
The truck fork speed is proportional to how
hard the raising and lowering button is press-
ed.
Use
4
Lifting
8145728043478 EN - 11/2021 - 09
