Checks to be carried out before
lifting a load
WARNING
Never exceed the capacity of the truck. This capacity
is based on the centre of gravity and the lift height of
the load.
Comply strictly with the load diagram! It is not permit-
ted to increase the capacity by adding extra weight to
the truck. Never exceed the maximum loads shown!
Otherwise, the stability of the truck can no longer be
guaranteed.
Transporting people in order to increase the capacity
of the truck is prohibited.
.

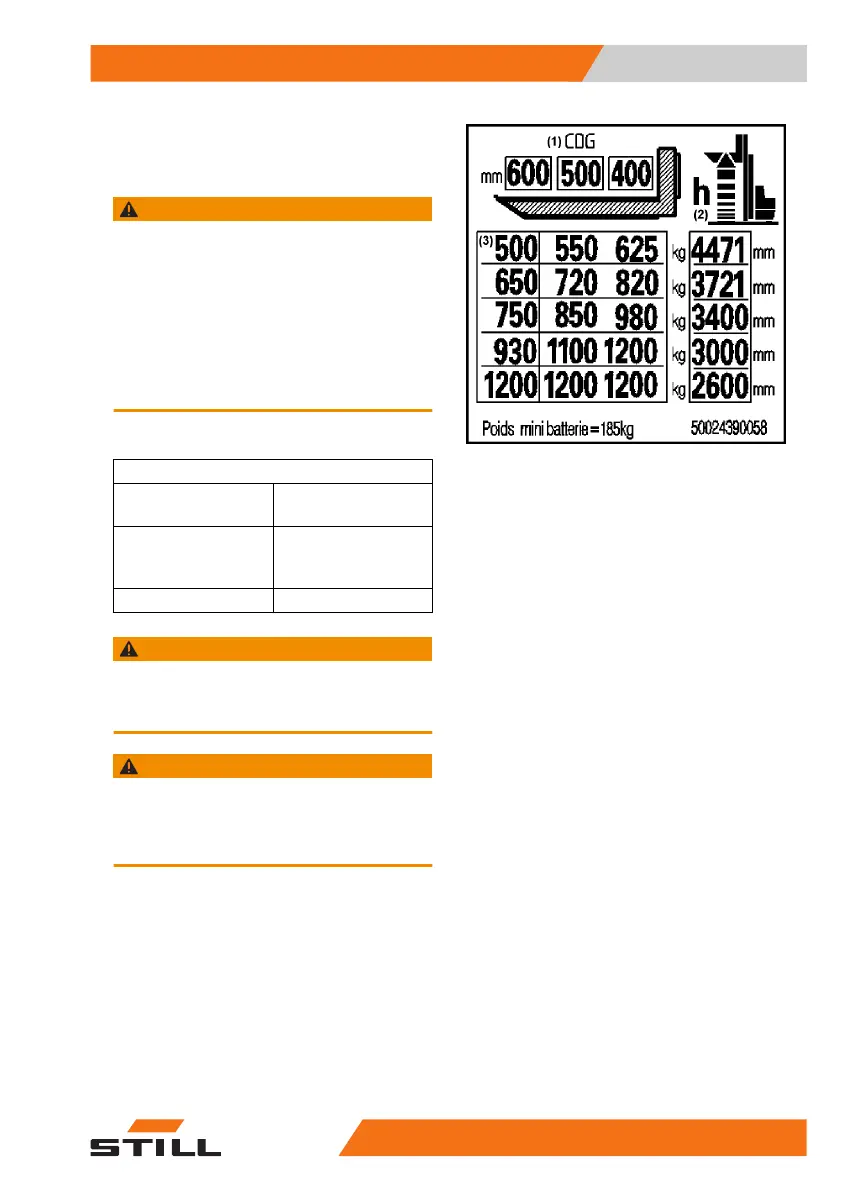

Example
Weight of load to be
lifted:
1200 kg (3)
Distance between the
load centre of gravity/
fork carriage:
600 mm (1)
Permissible lift height: 2600 mm (2)
WARNING
The illustrations are only examples.
Only the values stated on your truck's plate should
be taken into consideration.
WARNING
If small items are being transported or if the load ex-
ceeds the height of the fork carriage, a load protec-
tive guard must be installed to prevent the items from
falling on the operator.
Picking up the load
Load pick up from the ground
– Approach the load with caution and with as
much precision as possible.
– Lower the forks and the straddles so that
they can easily be inserted into the pallet.
CDG = distance "C" from the centre of grav-
ity of the load on the forks to the fork car-
riage (in mm)
h = lift height of the forks from the ground
(in mm)
Maximum permissible loads "Q" (in kg)
(1)
(2)
(3)
Use
4
Moving the load
8545728043478 EN - 11/2021 - 09
