WARNING
Risk of crushing feet.
Be careful not to put your feet under the straddles
while using the initial lift function.
Straddle lifting button (9)
●
Press the button (9) to lift the straddles;
when the button is released, the straddles
will stop in the position reached
●
The straddle lifting button (9) is active only
when the tiller is angled to the working posi-
tion
Straddle lowering button (10)
●
Press the button (10) to lower the straddles;
when the button is released, the straddles
will stop in the position reached
●
The straddle lowering button (10) is active
only when the tiller is angled to the working
position

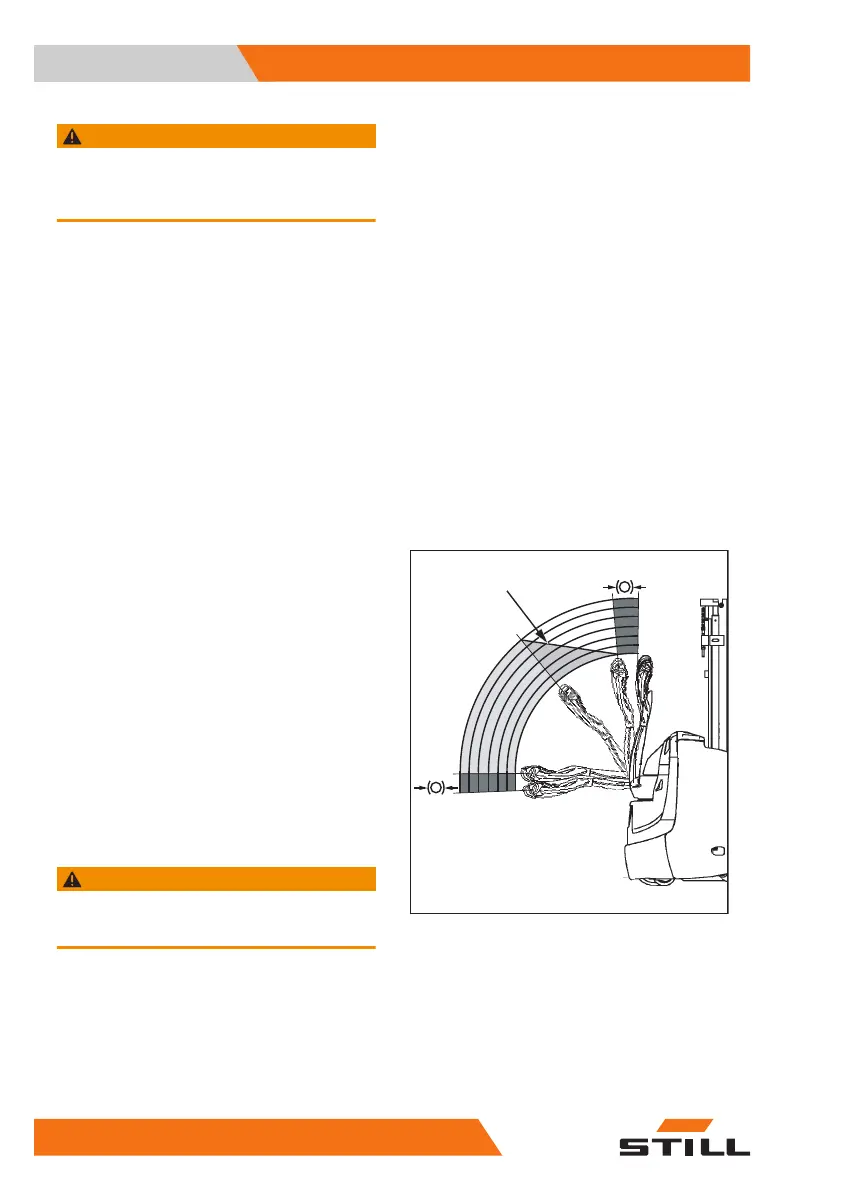

OptiSpeed tiller (if present)
The different work zones of the tiller depend-
ing on the tilt are explained below:
●
In zone (1), the brake is applied and the
truck cannot be moved.
●
In zone (2), the maximum authorised speed
varies according to the tilt of the tiller. The
reference (5) represents the curve of the
speed inside zone (2).
●
In zone (3), the truck can reach its maxi-
mum speed. The traction speed is propor-
tional to the angular position of the throttle.
In zone (4), the brake is applied and the truck
cannot be moved.
WARNING
During use, tilt the tiller and gradually change the
speed of the throttle in accordance with the above.
OM2282
1
2
5
3
4

Overview
3
OptiSpeed tiller (if present)
