Electrical data of the machine 2
Dimensions and weights 2.1
2-1
2 Electrical data of the machine
2.1 Dimensions and weights

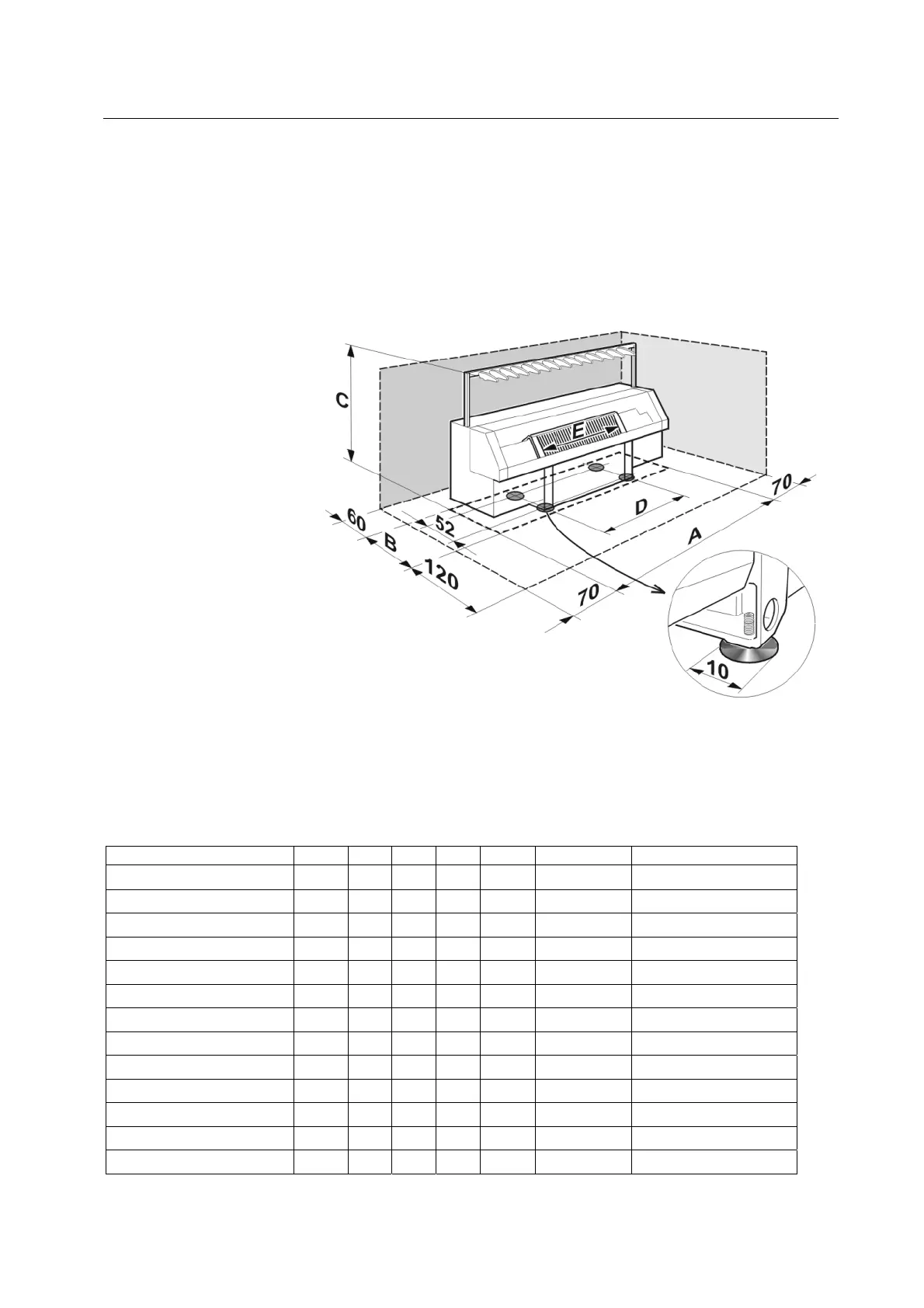

Fig. 2-1 Machine dimensions (in cm)
A Width B Depth C Height
D Spacing of set screws E Nominal working width
The back-and-forth movement of the carriage causes the dynamic loads
listed above to occur at the set screws.
A B C D E Weight (kg) Dynamic weight (kg)
CMS 933 510 106 205 270 244 2060 700
CMS 922 456 106 205 270 244 1960 660
CMS 830 C k&w 403 91 205 239 213 1690 740
CMS 822 403 91 205 239 213 1670 730
CMS 740 355 91 205 209 183 1530 620
CMS 730 T k&w 355 91 205 209 183 1510 630
CMS 730 S k&w 355 91 205 209 183 1520 630
CMS 530 T 270 91 205 153 127 1260 550
CMS 530 270 91 205 153 127 1240 540
CMS 520 C 270 91 205 153 127 1250 540
CMS 520 270 91 205 153 127 1220 510
CMS 420 E (type 579) 237 91 205 153 114 990 470
CMS 420 E (type 575, 577) 270 91 205 153 114 1170 500
Tab. 2-1 Dimensions, weight and dynamic weight
