Assembly and setting up 4
Mounting yarn feeding and control device 4.3
4-15
4.3 Mounting yarn feeding and control
device
When setting up the yarn feeding and control device, the following
components are assembled:
 Yarn control device
 Signal lamp
4.3.1 Mount the yarn control device
Push the supports of the yarn control device upward together with another
mechanic to prevent the supports from jamming.
1. Open the side safety covers and release the screws (1) on both sides
of the machine.

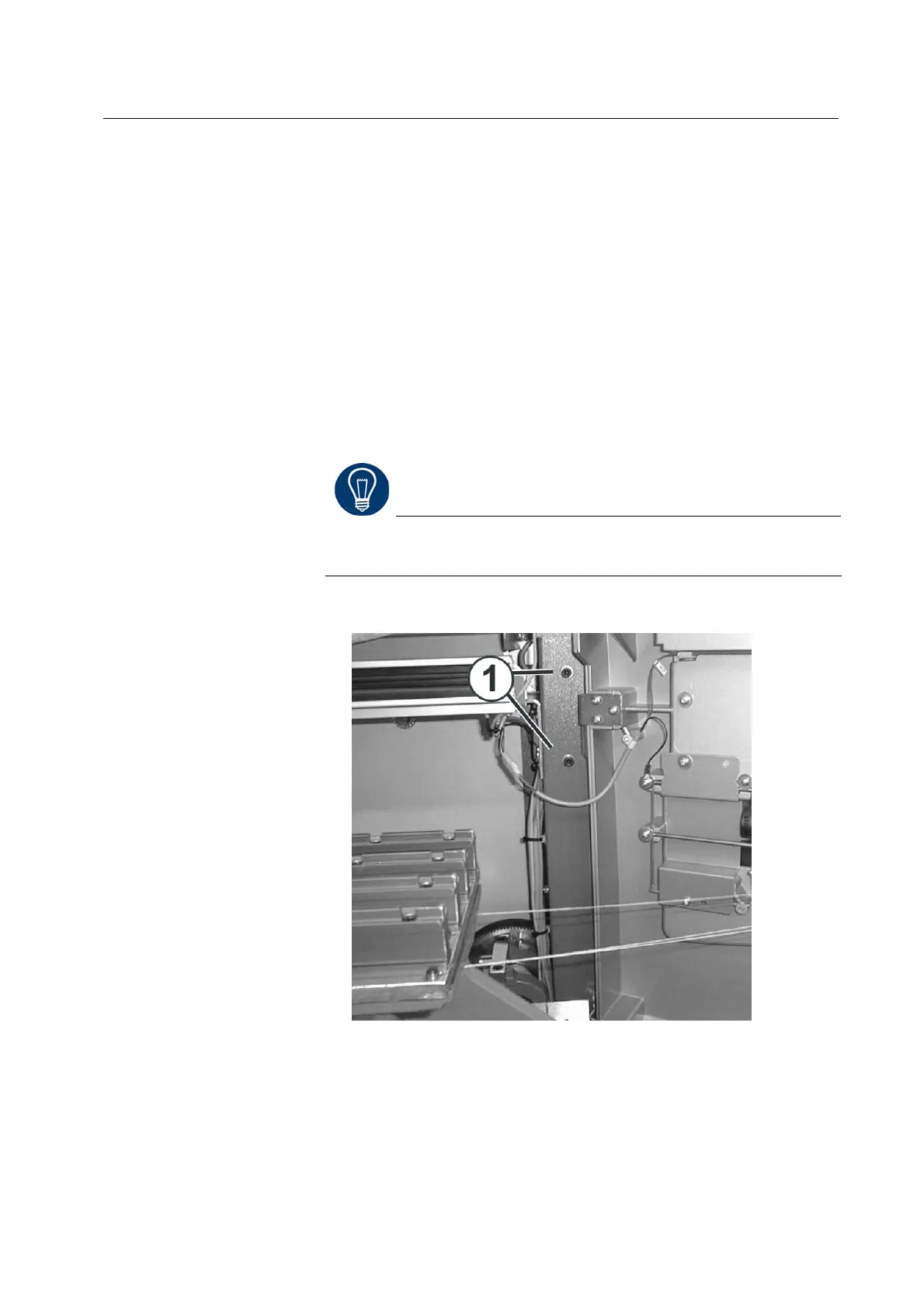

Fig. 4-15 Supports for the yarn control device
2. Push the left and right supports of the yarn feeding and control device
upward simultaneously until the distance between the bobbin board
and the yarn feeding and control device is 50 to 55 cm.
3. Retighten the screws (1) on both sides of the machine.
4. Move the rear track of the yarn feeding and monitoring unit from the
transport into the production position.
