4 Assembly and setting up
4.2 Assembling machine
4-2
4.2 Assembling machine
4.2.1 Putting up knitting machine
Lift the knitting machine with a ground conveyor (e.g. forklift) and transport
it.
In this case the following things have to be taken care of:
The position of the centre of gravity is indicated on the front traverse
(carriage in left transport position).
Both the lifting arms of the ground conveyor should be long enough so
that the front and the back traverse can be lifted.
Lift and set the machine carefully. Danger of damage if it hits the floor
very hard.
Lift the machine only on both the machine feet or on the traverses.
Setting up knitting machine
1. Remove Screw 1 that holds the knitting machine to the trolley.
2. Lift the knitting machine with a fork lift from the transport surface.
3. Bring the knitting machine to the site of installation
4. Lay Washers (1) from the accessories under the knitting machine foot.
Place the washers in such a manner that the cavity comes exactly
under the Grub Screw (2)

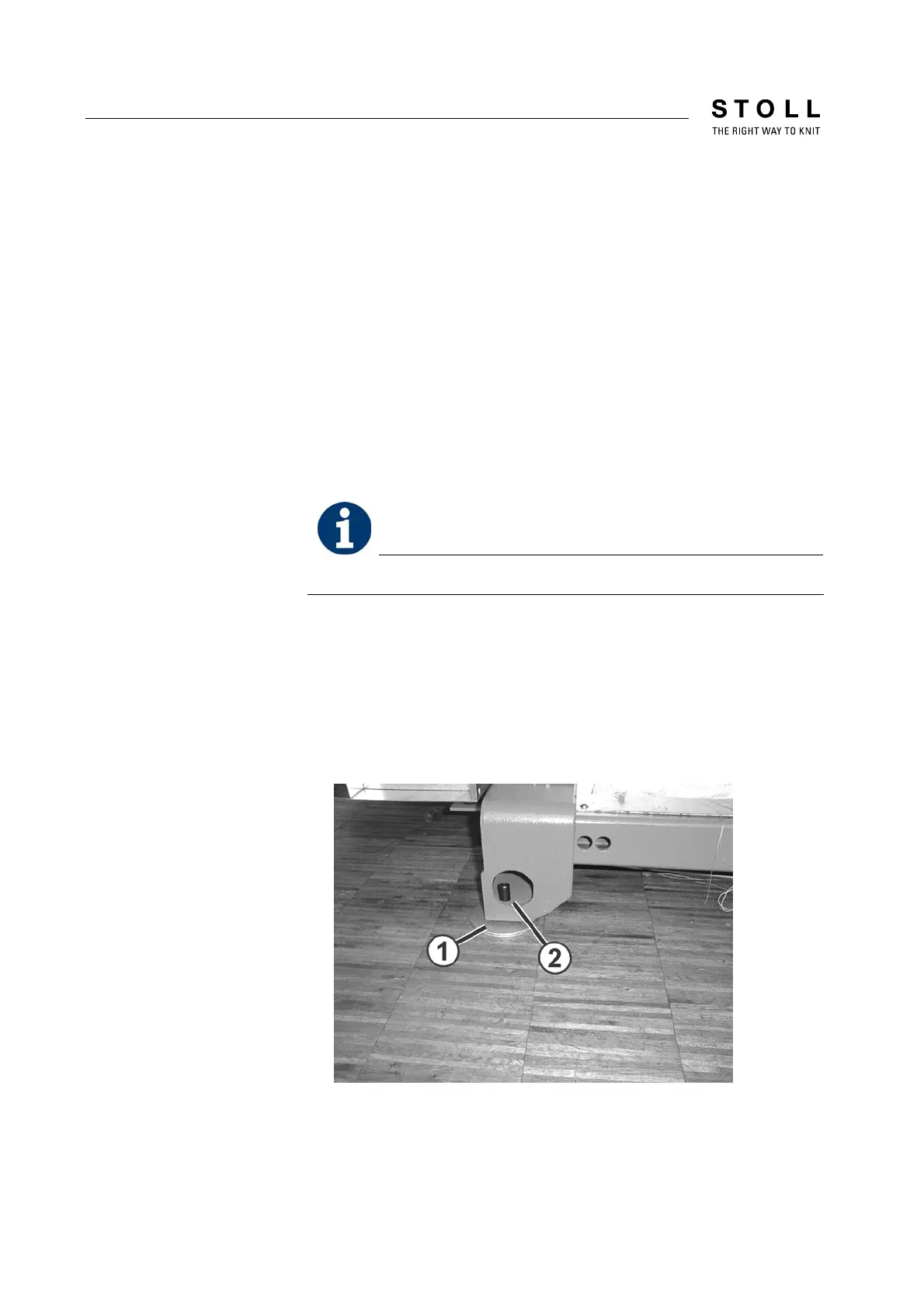

Fig. 4-1 Washers under the knitting machine foot
5. Setting knitting machine on the floor
6. Remove wood pieces, adhesive strips, packing film and paper.
