Assembly and setting up 4
Mounting yarn feeding and control device 4.3
4-17
4.3.2 Mounting signal lamp
The power supply for the yarn control devices and the signal lamp are
moved into the supports when the knitting machine is shipped. The signal
lamp from the accessories needs only be connected and screwed into
place.

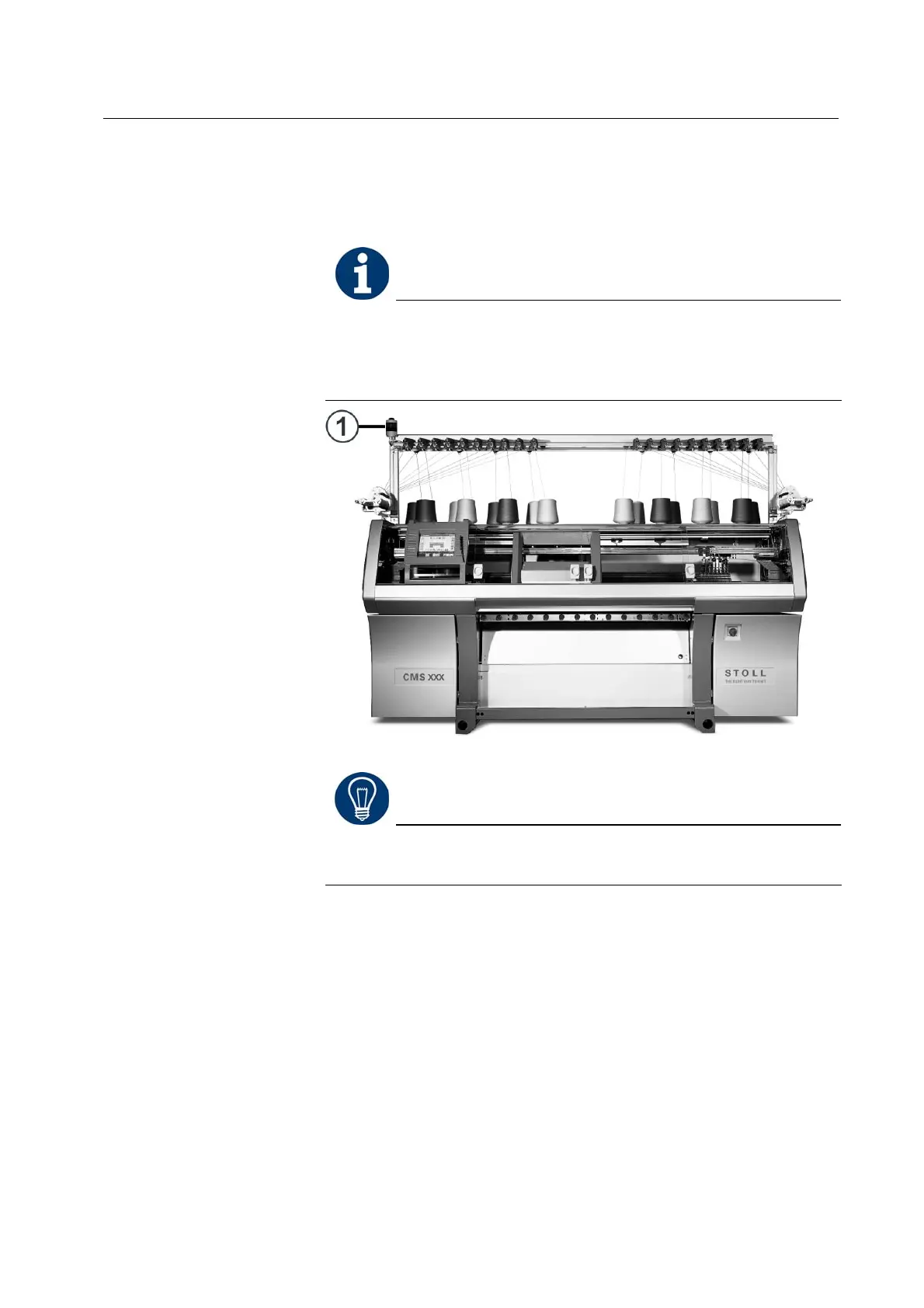

Fig. 4-17 Signal lamp
Carefully tighten the fastening screw of the signal lamp to prevent the
plastic holder from being damaged.
1. Plug the power cable from the left support into the signal lamp (1).
2. Screw on the signal lamp onto the left support with the screws present
there.
