Stoll CMS 933 - Touch Screen

3 Main components of the knitting machine
3.4 Optical and acoustic Signal elements
3-6
3.4.2 Touch screen
The most common error causes are shown in the pictographs on the
touch screen.
If an error occurs, one pictograph appears (on a yellow background), and
in the case of several errors the corresponding pictographs appear
consecutively. Errors which occur seldom (e. g. hardware errors) are
shown with a common pictograph.

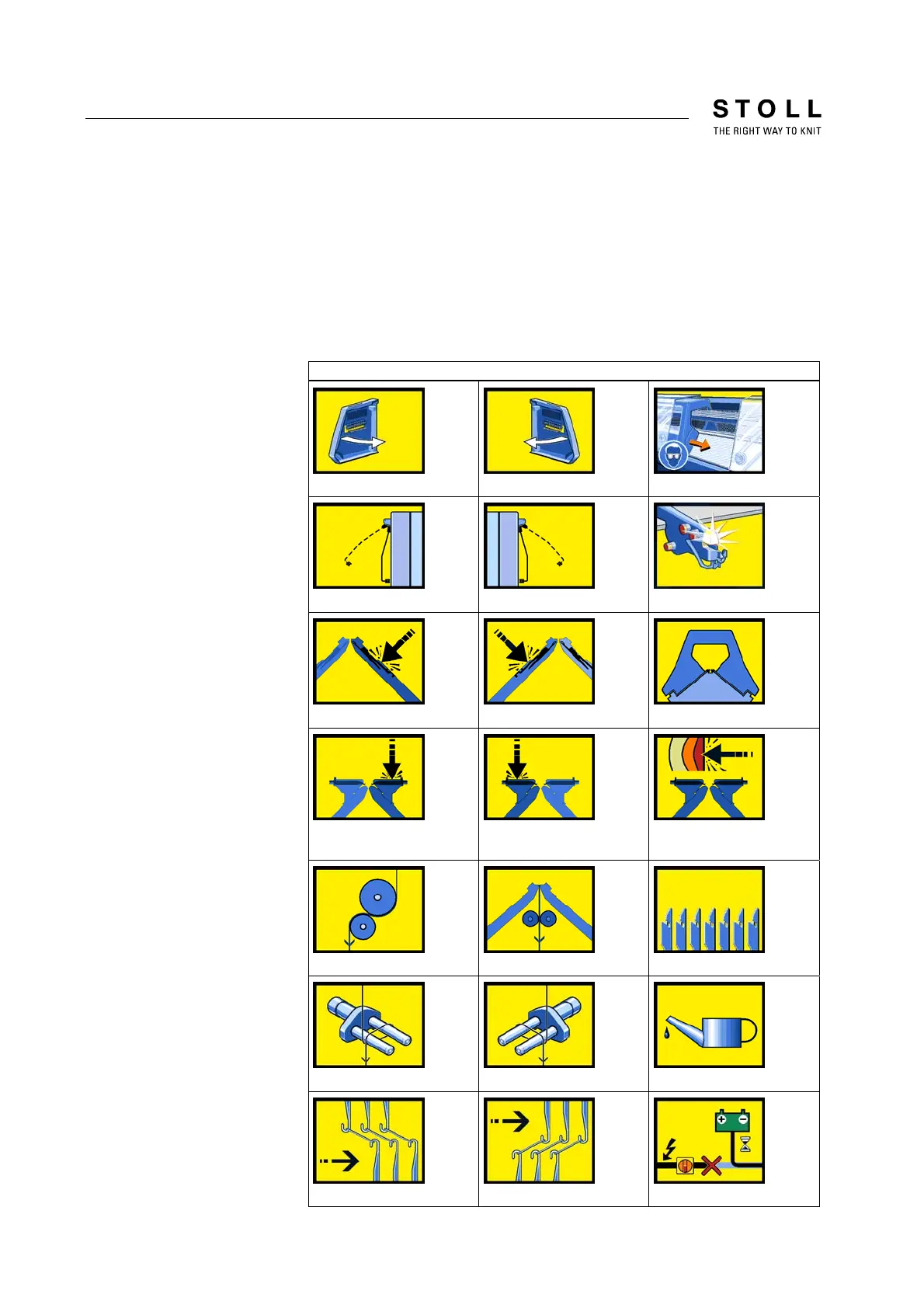

Pictographs
Protective hood left Protective hood right Shrouding cover
Yarn tensioner left Yarn tensioner right Yarn control device
Shock stop motion front Shock stop motion rear Carriage (Power monitor)
Additional bed front Additional bed rear Shock stop motion
(additional bed)
Take-down Auxiliary take-down Take-down comb
Friction feed wheel left Friction feed wheel right Oiling
Racking front Racking rear Power failure
