4 Assembly and setting up
4.2 Assembling machine
4-4

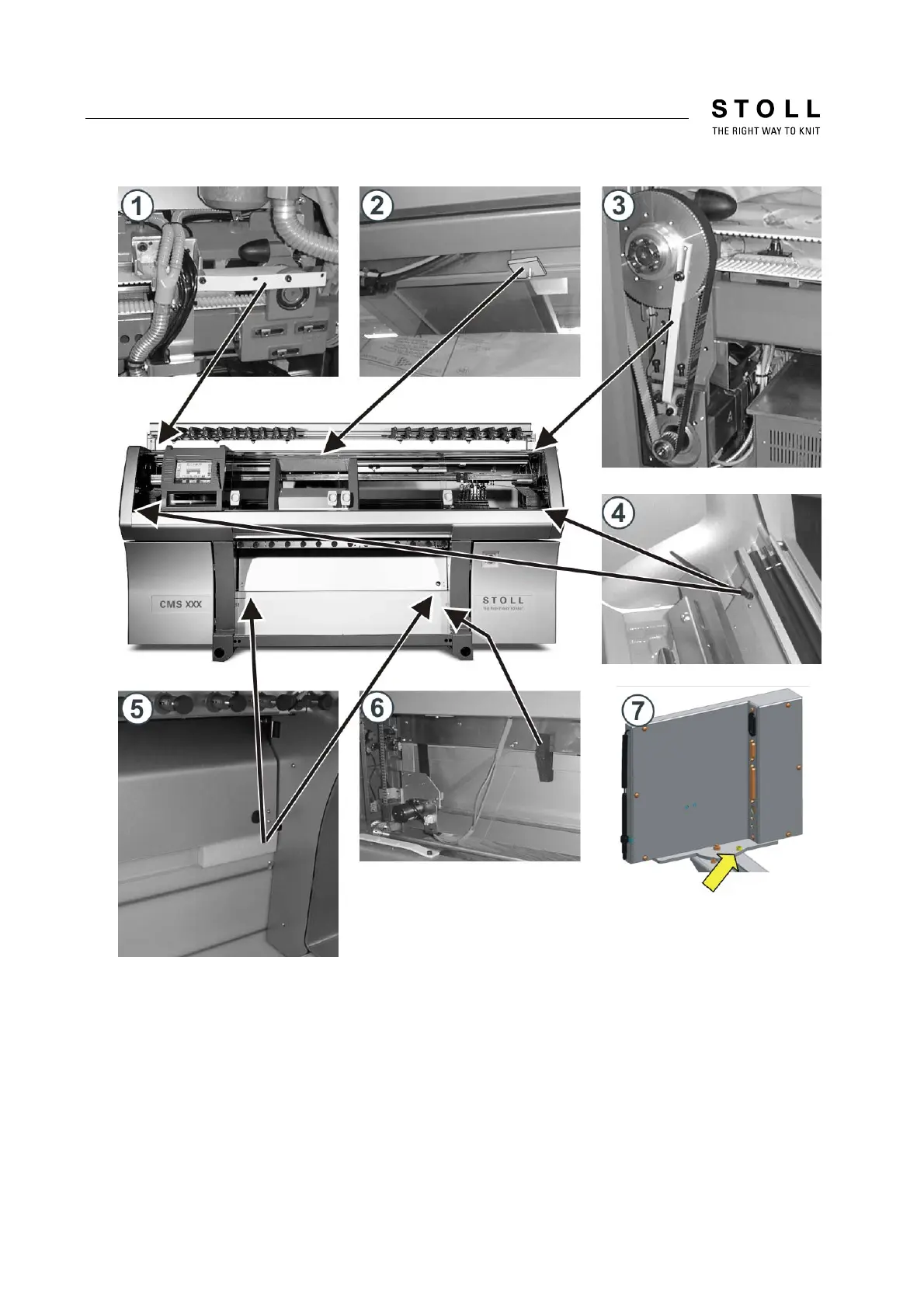

Fig. 4-3 Fixing spots for transport locks
Transport lock for:
1 Carriage
2 Touch screen (not for CMS 420 E)
3 Drive
4 Left and right protective hoods (CMS 420 E: right
protective hood only)
5 Cover at take-down comb
6 Comb take-down (2 pieces for CMS 7xx and CMS 8xx)
7 Touch screen (CMS 420 E, type 579)
