Assembly and setting up 4
Assembling machine 4.2
4-7
DANGER
High voltage!
Electrical shock may cause death or serious injuries.
Î Interrupt the mains supply to the machine
It is not sufficient to simply switch off the machine at the main switch!
Î Swap the two phases of the mains supply.
Adapting fluff absorption to
mains frequency
Depending on the mains frequency (50 Hz or 60 Hz), the fluff absorption
operates with or without sealing plugs.

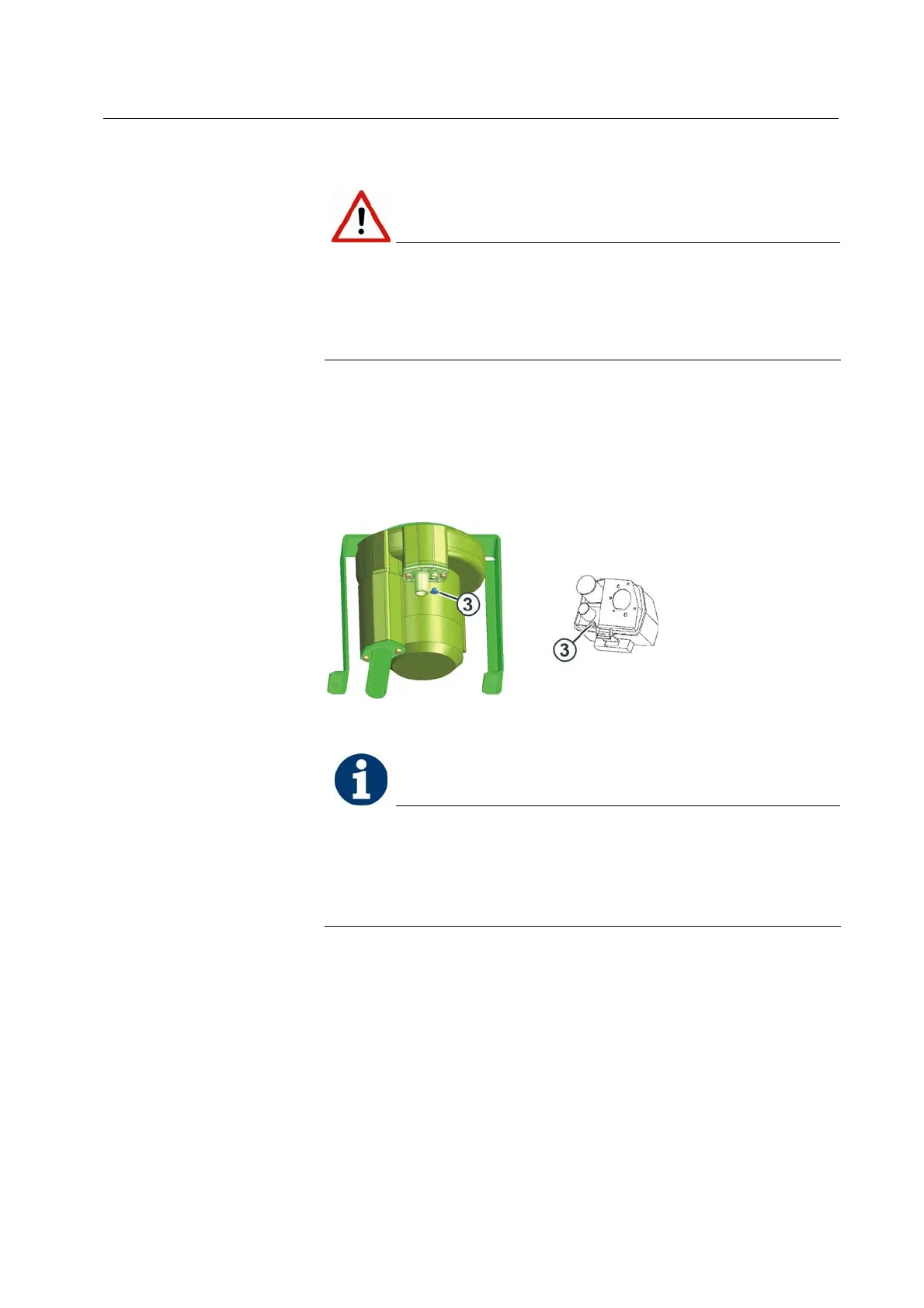

Fig. 4-5 Adapting fluff absorption (on the left: from component type 001 on, on
the right:component type 000)
The fluff absorption can be damaged if the mains frequency is not
adapted!
The fluff absorption is overloaded if it is not adapted to the mains
frequency.
-> Adapt the fluff absorption to the mains frequency.
1. Open the left cover.
2. Check the sealing plugs (3) of the suction unit.
3. At Mains frequency 50 Hz: Insert sealing plug.
- or -
Î At Mains frequency 60 Hz: Remove sealing plug.
