25
OVEN LIGHT
A single light pipe is mounted on the front upper edge of the oven and is used to illuminate the oven chamber
(Figure 3-6). The light pipe consists of nine high-temperature LEDs; each LED is rated at 1-watt. The oven light
is powered by 12 VDC.
The Light button within the Tools page indicates the current state of the oven light and allows you to manually
turn the light ON of OFF (see “Light” on page 104).

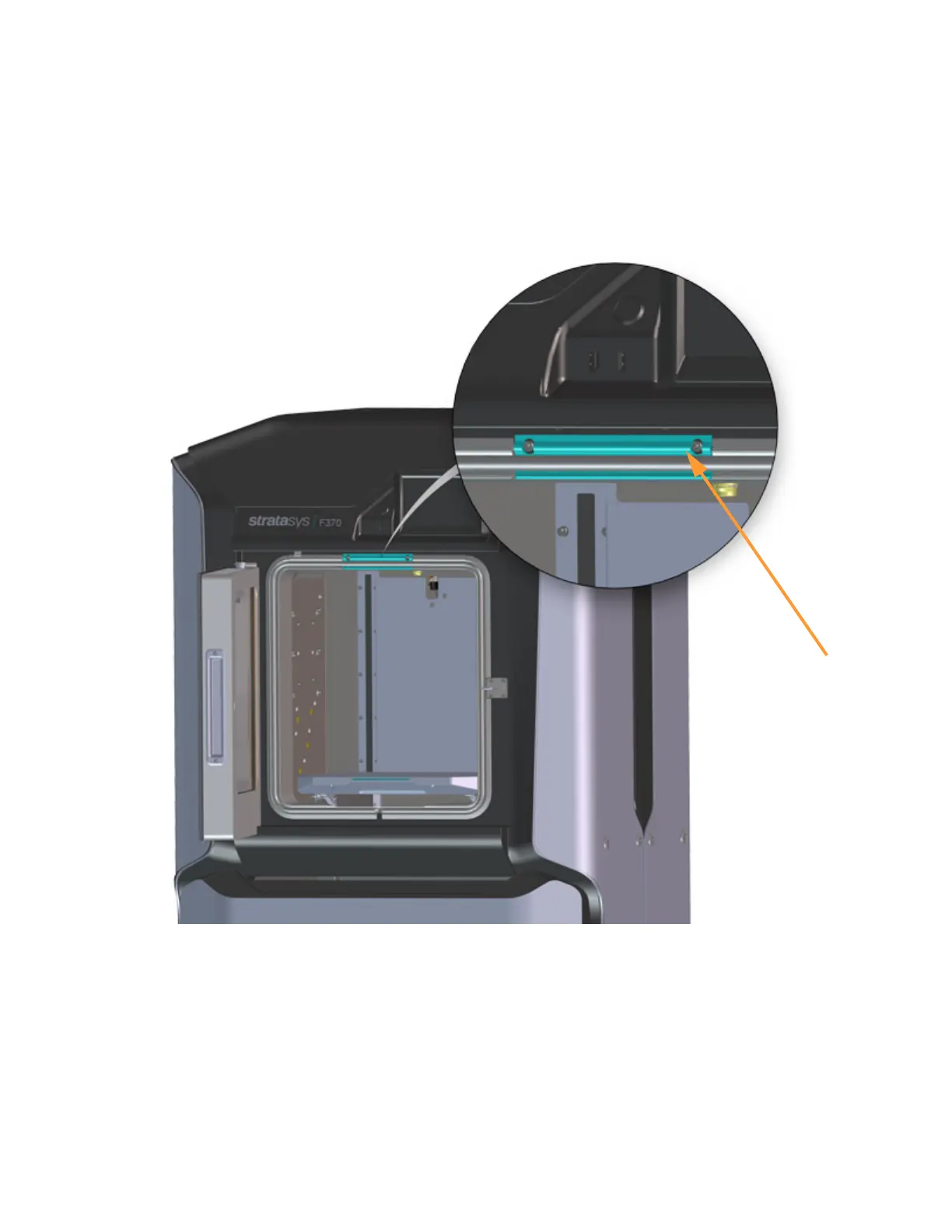

Figure 3-6: Oven Light Location
