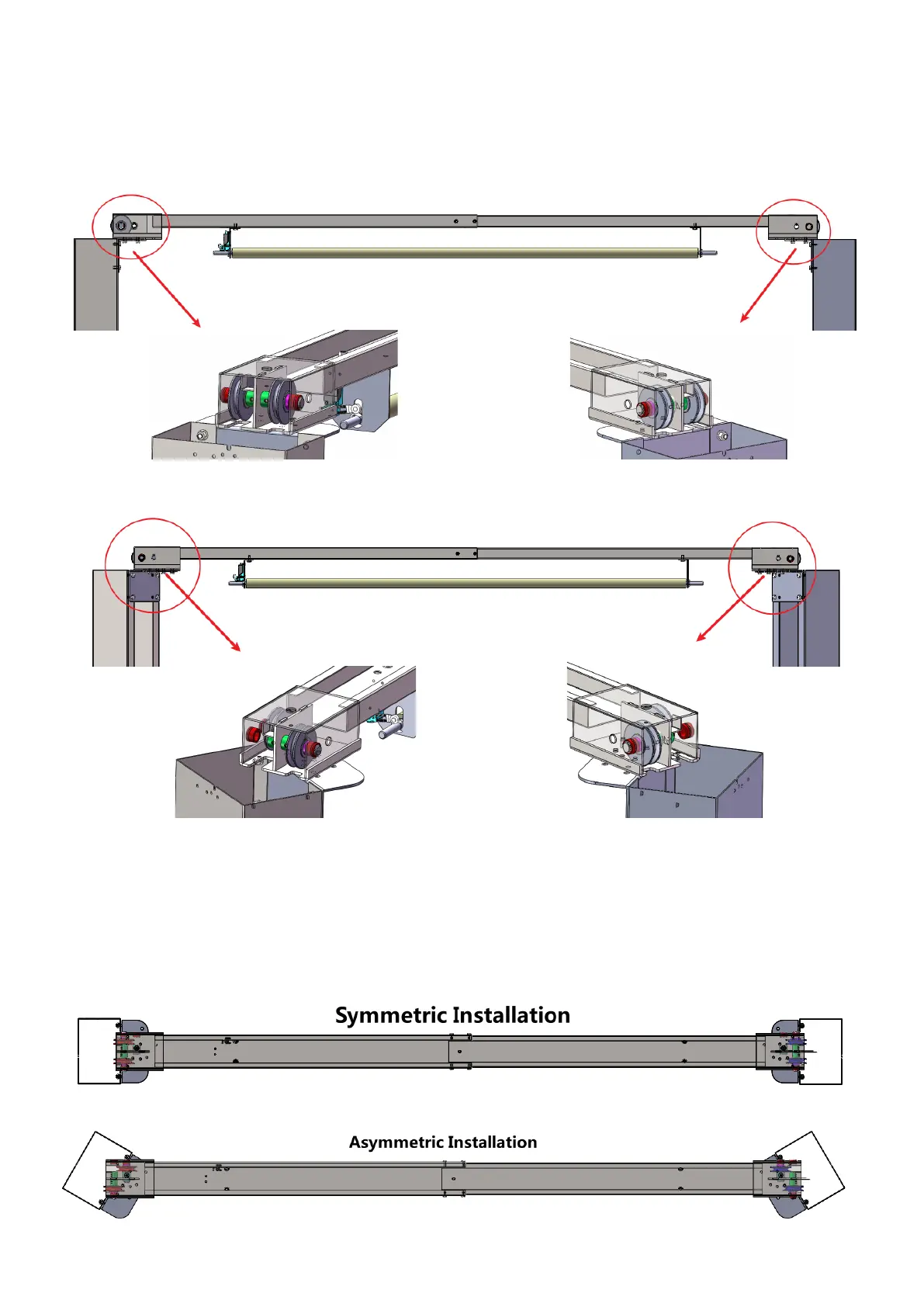

4.2.2-Install the overhead beam cable pulley (FIG 5)

Warning: Symmetrical installaon and asymmetrical installaon of the cable pulley posions are not universal. In-

correct installaon of the pulley posions may cause damage to the cable or the li.

◇ For symmetrical installaon, (pre-installed).

Symmetric Installaon

◇ For asymmetric installaon, (pre-installed).

Asymmetric Installaon

FIG 5 Cable Pulley Installaon Reference

◇ Mounng posion of cable pulley (FIG 6)

Note: During the installaon, the posions of the cable pulley at both ends of the overhead beam should be in-

stalled correspondingly. There may be a gap between the cable pulley and the sha sleeve, this is for the cable can

be automacally aligned, normal abrasion, Do not add shim to x the posion of pulley, it may cause abnormal

wear of the li.

FIG 6 Cable Pulley Posion
