4.10-Safety Lock Release Cable & Hose & Top Limiter Switch Wire Protecon cover.
◇ Safety Lock Release Cable & Hose & Top Limiter Switch Posion (FIG 17& FIG 18).
Not: Don’t across safety lock release cable & Hose & Top Limiter Switch Wire.

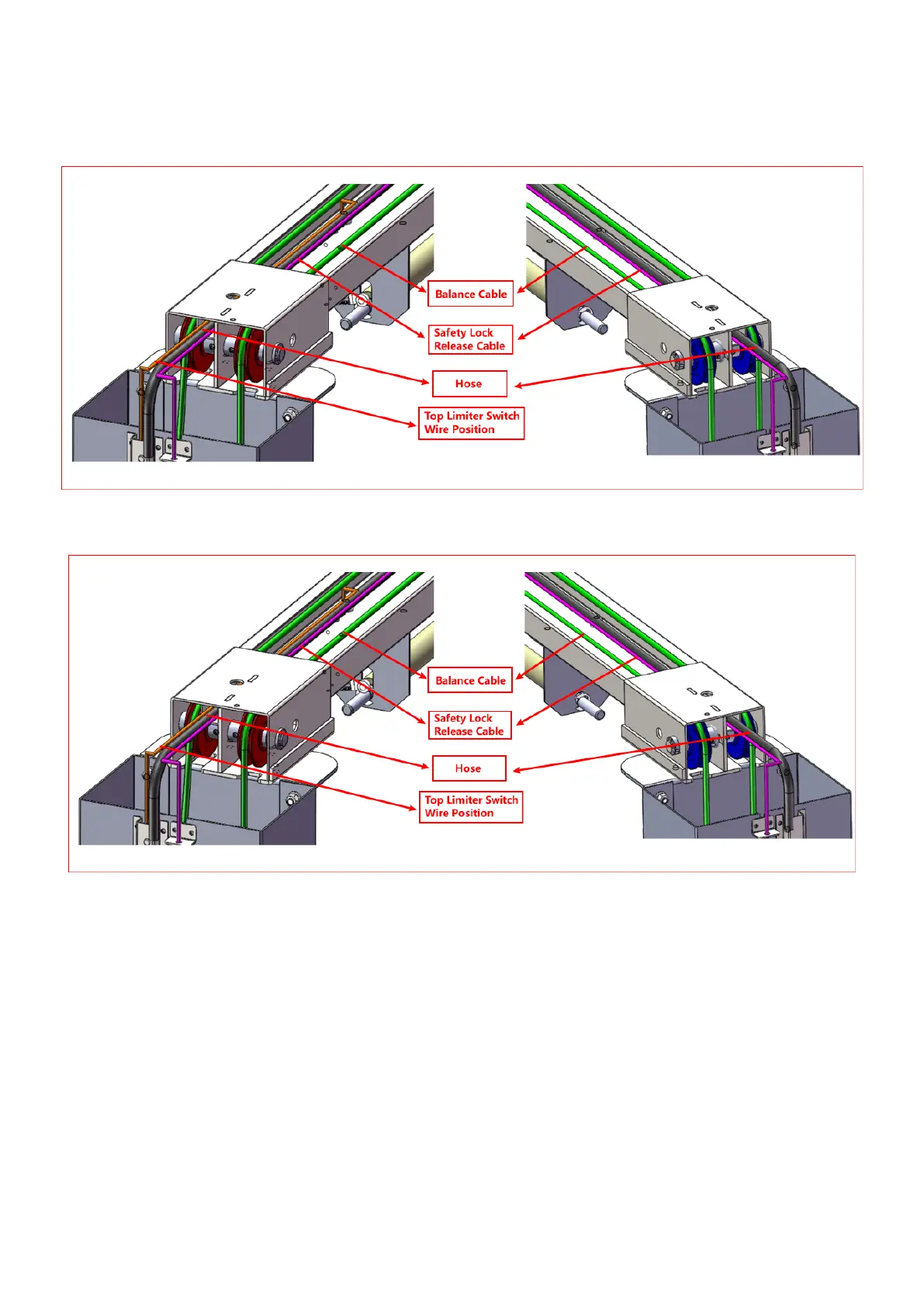

FIG 17 Symmetric Installaon
Safety Lock Release Cable & Top Limiter Switch Wire Posion
FIG 18 Asymmetric Installaon
Safety Lock Release Cable & Top Limiter Switch Wire Posion
◇ Install protecon cover (FIG 19)
Note: The protecon cover on the extension column for safety lock release cable & hose & top limiter switch has
already welded on, and you only need to install the protecon cover on the main column.
