4.3-Posion Columns
Check if the column are vercal to the ground with level, insert thin shims (come with package) to adjust when nec-
essary.
◇ Symmetric Installaon (FIG 7)
◇ Asymmetric Installaon (FIG 8)

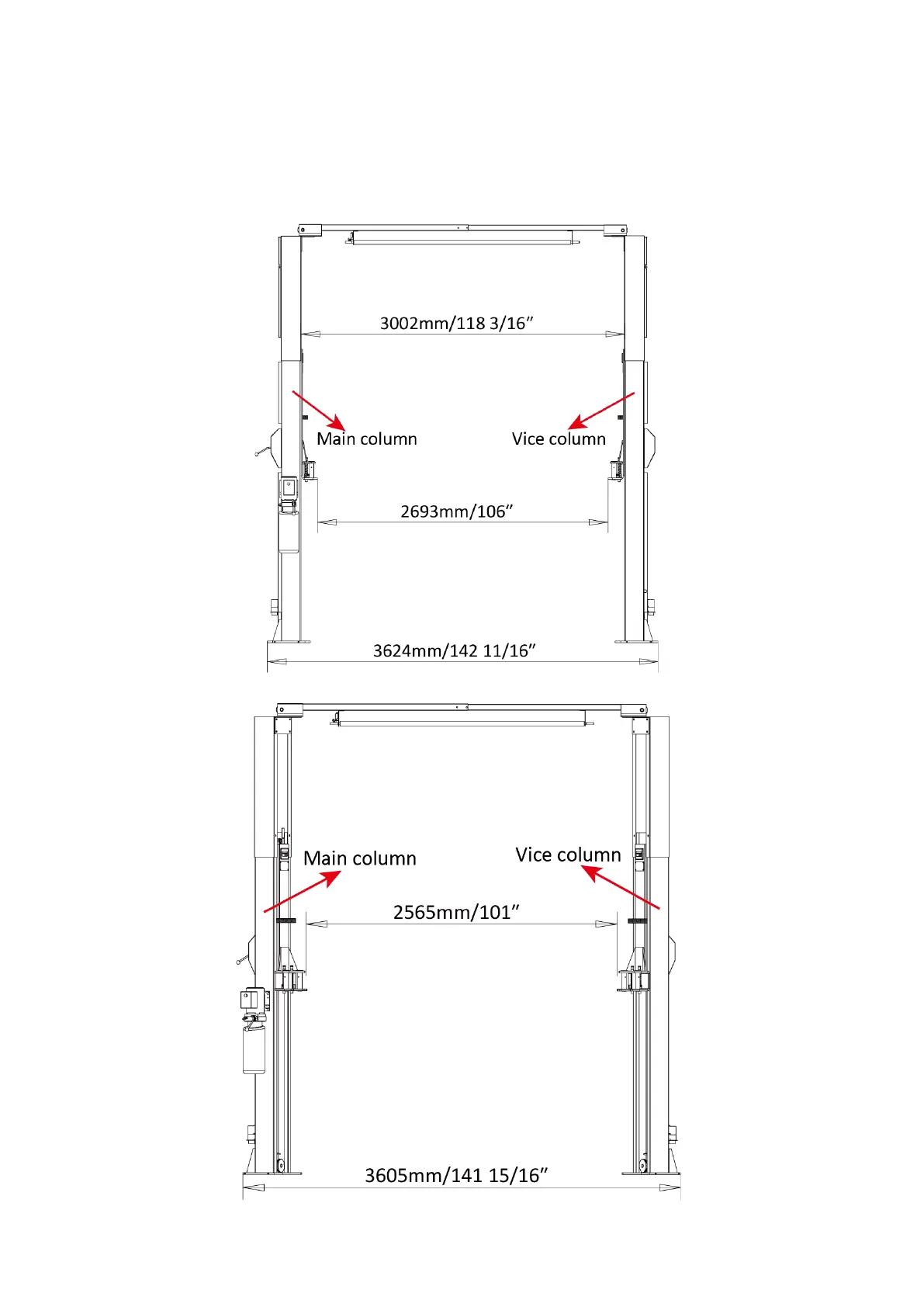

FIG 7 Symmetric installaon posion columns
FIG 8 Asymmetric installaon posion columns
