Stratus SAE-C10C - Carriage Assembly

31

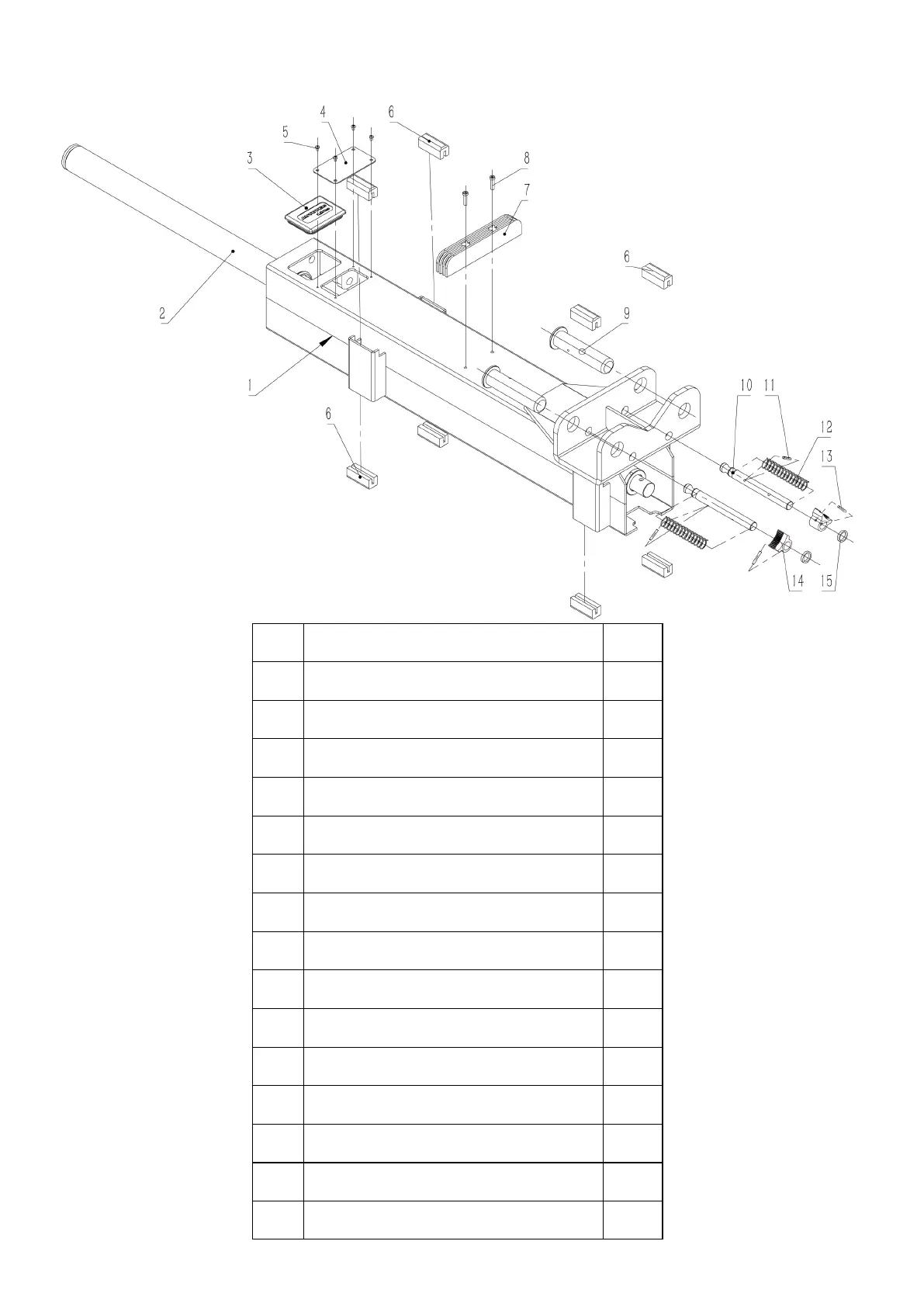

10.3 Carriage Assembly
No. Name Qty.
1 Welding carriage 1
2 Oil cylinder 1
3 Carriage rubber cover 1
4 Carriage front cover board 1
5
Cross round heard screw M5×8
4
6 Slide 4
7 Protect rubber 1
8
Inner hex.srewM8×30
2
9 Arm pin 2
10 Half round gear pin 2
11 Hollow pin Φ5×30 2
12 Half round gear spring 2
13 Hollow pin Φ5×35 2
14 Smaller lock gear for arm 2
15 Smaller lock gear gasket 2
