Stratus SAE-C10C - Install Anchor Bolt; Install Arms and Pulling Rod

22
4.11-Install Anchor Bolts (FIG 21)
◇ Adjust the distance between 2 columns as required dimensions (FIG 1).
◇ Adjust the opening direcon of the two columns in a straight line (visible).
◇ Install Anchor Bolts (Suggest to use 3/4″ Drill).
Note: Don’t Fasten/Tighten Nuts now in case any adjustment needed.
◇ Adjust the vercality of the column (visible) and use U-shape washer (come with package) if necessary.
◇ Tighten anchor bolts nuts in diagonal order (Foot Pounds of Torque: 90+,suggest to use hand wrench to ghten
nuts).

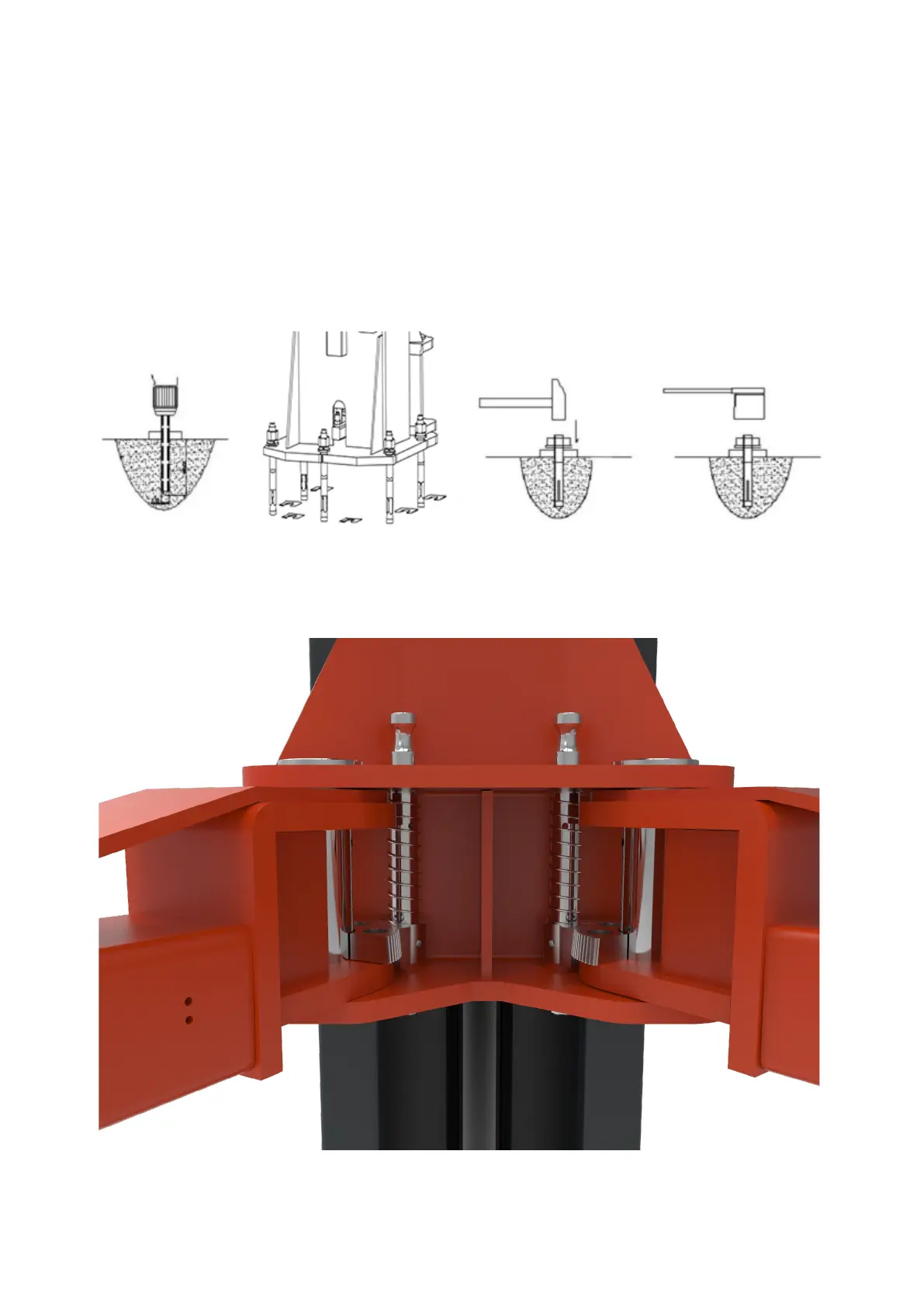

FIG 21 Anchor Bolts Installaon Diagram
4.12-Install Arms and Pulling Rod
Install arms and pulling rod (FIG 22 and FIG 23).
FIG 22 Arm Installaon Diagram
