Stratus SAE-C10C - Install Hydraulic Hose (2 Hose in Total)

18

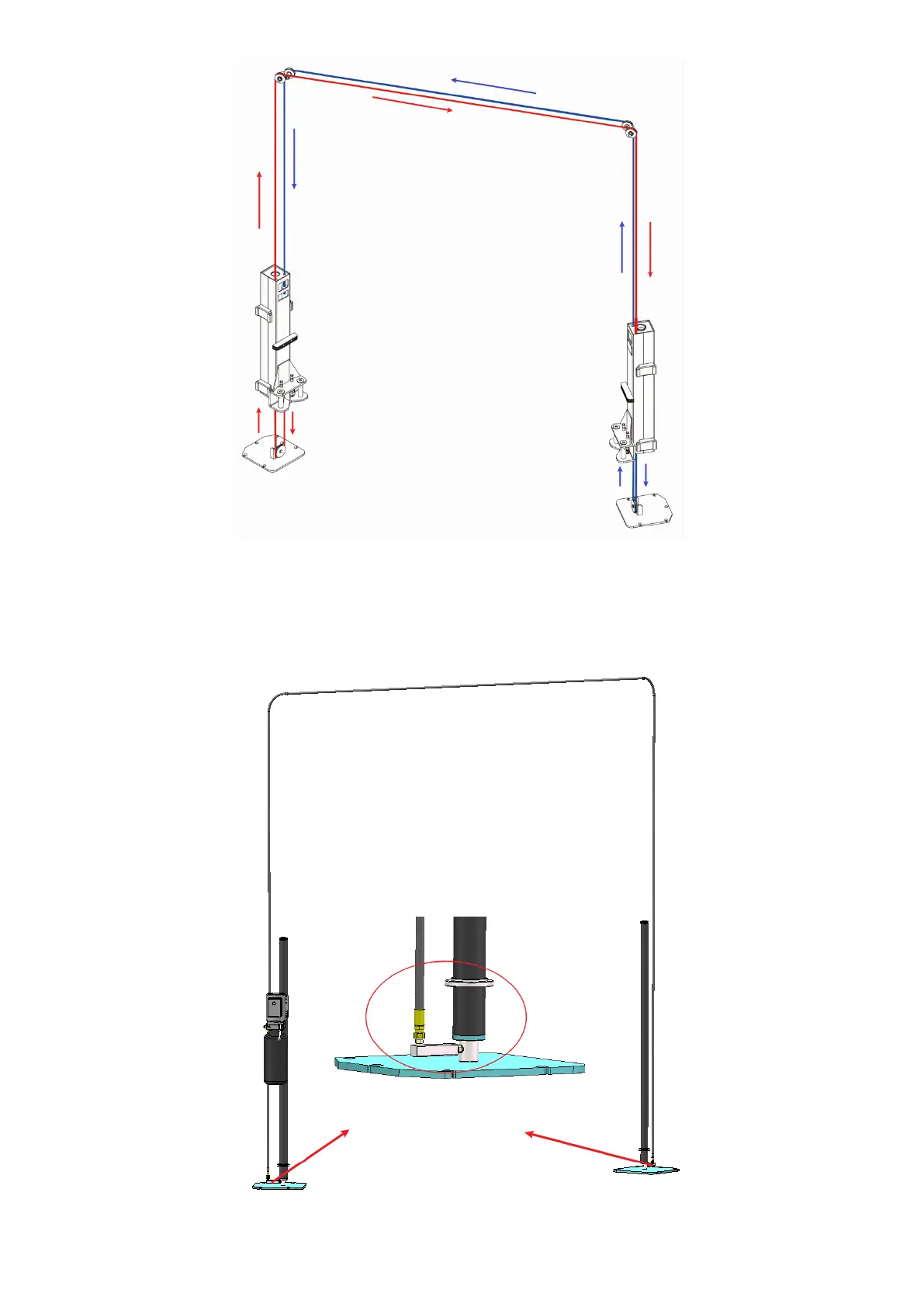

FIG 13 Asymmetric Installaon Cable Roung Diagram
4.7-Install Hydraulic Hose (2 Hose in total)
Connect the longer hose in between the 2 cylinders, connect the short hose in between the cylinder and the power
unit. Please hand ghten to avoid thread damage, then use hand wrench to fasten completely.(FIG14)
FIG 14 Hydraulic Hose Diagram
