Stratus SAE-C10C - Overhead Crossbeam Installation

32

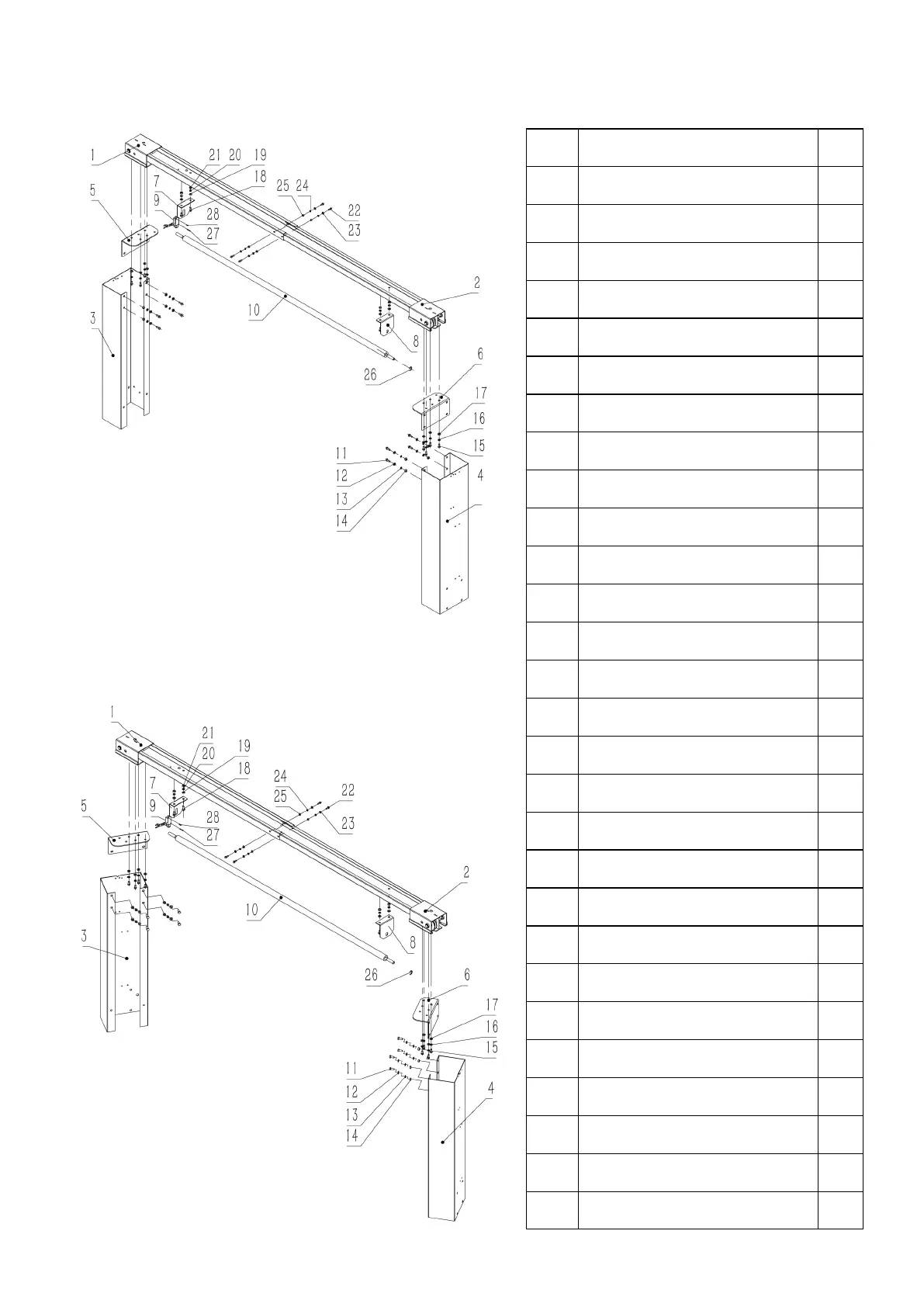

10.4 Overhead Crossbeam Installaon
10.4.1 Symmetrical beam installaon
10.4.2 Installaon of asymmetric beam
No. Name Qty.
1 Asymmetric beam 2 assembly 1
2 Asymmetric beam 1 assembly 1
3 Main column extension 1
4 Secondary column extension 1
5 Asymmetric beam and plate 2 1
6 Asymmetric beam and plate 1 1
7 Beam hanging plate 1 1
8 Beam hanging plate 2 1
9 Limit switch 1
10 Beam bar assembly 1
11
Hexagon bolt M10×25
8
12 Spring washer Φ10 8
13 Flat gasket Φ10 8
14 Hexagon nut M10 8
15
Hexagon socket screw M10×20
8
16 Spring washer Φ10 8
17 Flat gasket Φ10 8
18
Hexagon bolt M10×20
4
19 Spring washer Φ10 4
20 Flat gasket Φ10 4
21 Hexagon nut M10 4
22
Hexagon bolt M8×20
4
23 Spring washer Φ8 4
24 Flat gasket Φ8 4
25 Hexagon nut M8 4
26 Jump ring Φ15 2
27
Cross half head screw M4×25
1
28
Cross half head screw M4×10
1
