Stratus SAE-C10C - Adjust Carriage; Install Equalized Cables (2 Cables in Total)

17
4.5-Adjust Carriage
Raise the carriage to the 1st locking posion located at the boom of the column (FIG 11).
Note: You can hear “click” once locked (the 1st locking posion) is about 11.8″ from the ground).

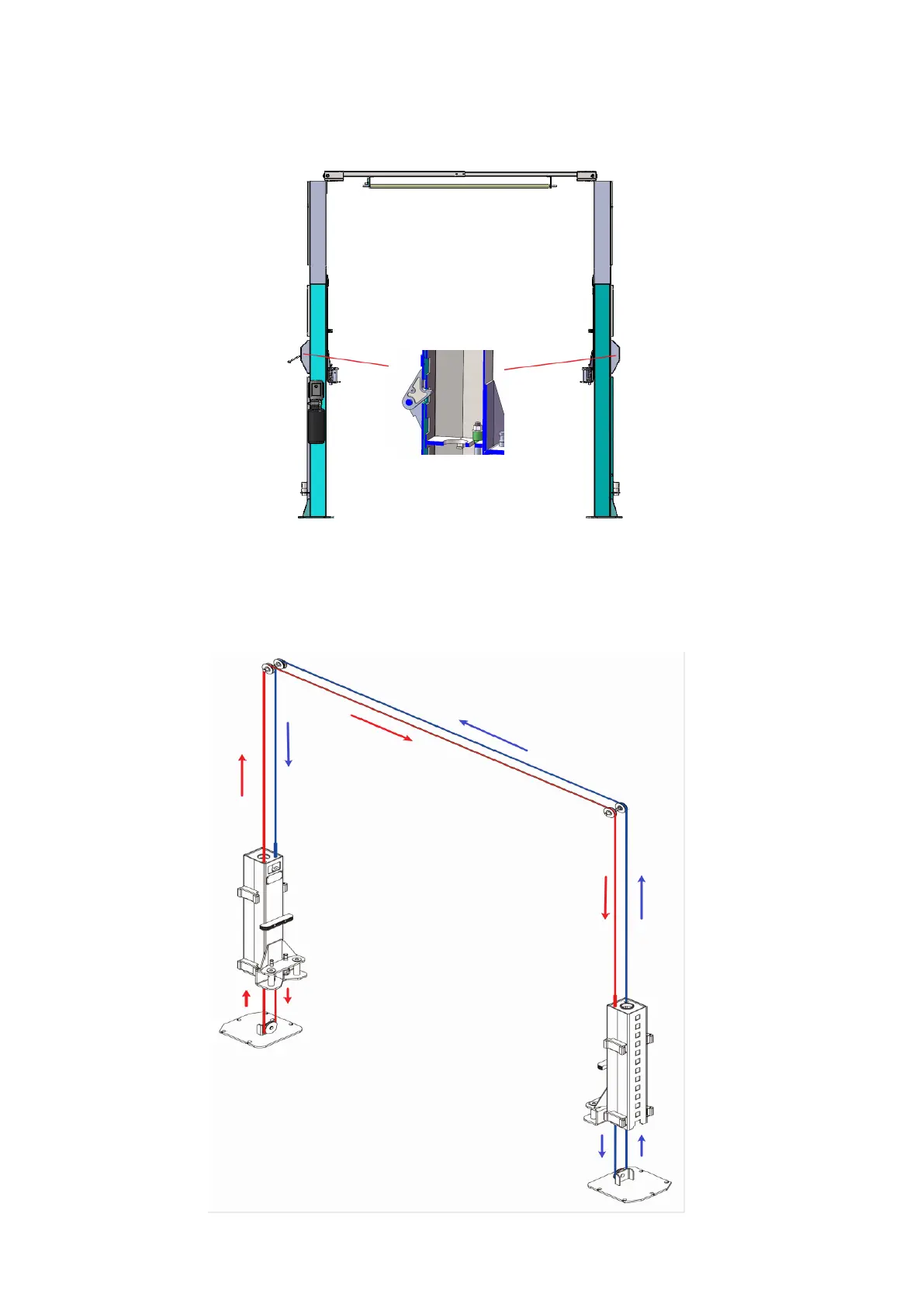

FIG 11 Carriage Posion
4.6-Install Equalized Cables (2 Cables in total)
Note: Please pay aenon to the change of the hanging point of the cable during symmetrical installaon (FIG 12)
and asymmetrical installaon (FIG 13) during the installaon.
FIG 12 Symmetric Installaon Cable Roung Diagram
