4.8-Install Safety Lock Release Cable
◇ The safety lock has been pre-installed.
◇ Install safety lock release cable to connect the safety lock on the main column and vice column. (FIG 15)
◇ Install safety lock cover.
NOTE: Press the single point lock release lever on the main column to check if this lever can release the mechanisms
in both columns at the same me. Adjust the safety lock release cable adjustment screw if necessary unl the lever
can release the mechanisms in both columns at the same me.

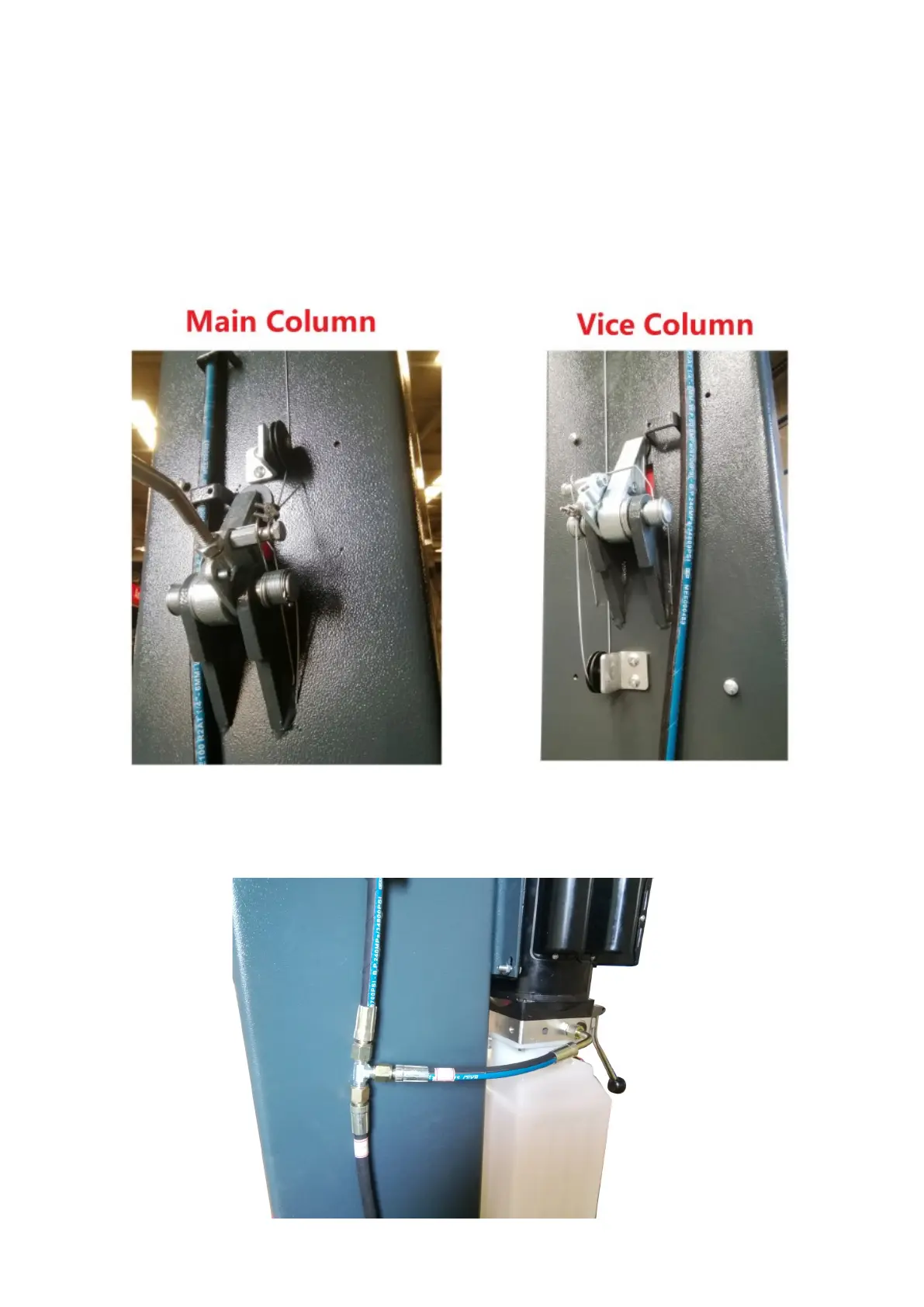

FIG 15 Safety lock release cable installaon diagram
4.9-Install Power Unit
Install power unit & motor mounng plate on the main column with M8 screws (FIG 16).
FIG 16 Power Unit Installaon Diagram
