Stratus SAE-C10C - Two Stage Arm Assembly; Three Stage Arm Assembly

35

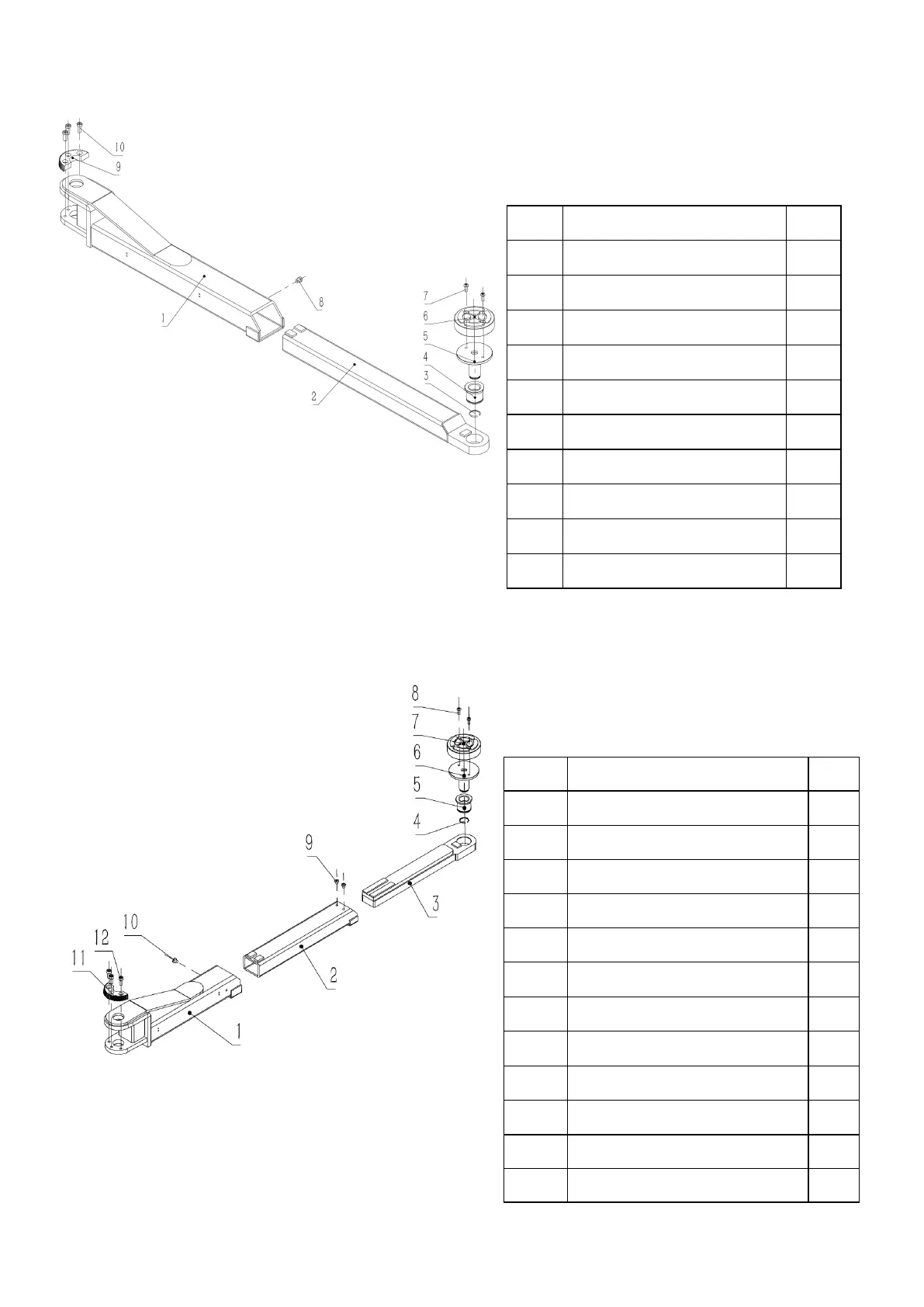

10.7 Two stage arm assembly
No. Name Q’ty
1 Long bigger arm welding 1
2 Long smaller arm welding 1
3 Clamp spring 1
4 2 stage screw socket 1
5 2 stage pad welding 1
6 2 stage rubber pad 1
7
Inner hex. Screw M8×20
2
8
Inner hex. Screw M10×12
1
9 Semicircle gear lock for arm 1
10
Inner hex. Screw M10×25
3
10.8 Three stage arm assembly
No. Name Q’ty
1 3 stage Long bigger arm welding 1
2 3 stage middle size arm welding 1
3 3 stage Long smaller arm welding 1
4 Clamp spring 1
5 2 stage screw socket 1
6 2 stage pad welding 1
7 2 stage screw rubber pad 2
8
Inner hex. screw M8×20
2
9
Cross half round screw M8×10
2
10
Inner hex. Screw M8×12
1
11 Semicircle gear lock for arm 1
12
Inner hex. Screw M10×25
3
