Stratus SAE-C10C - Slave Column Safety Lock Assembly

34

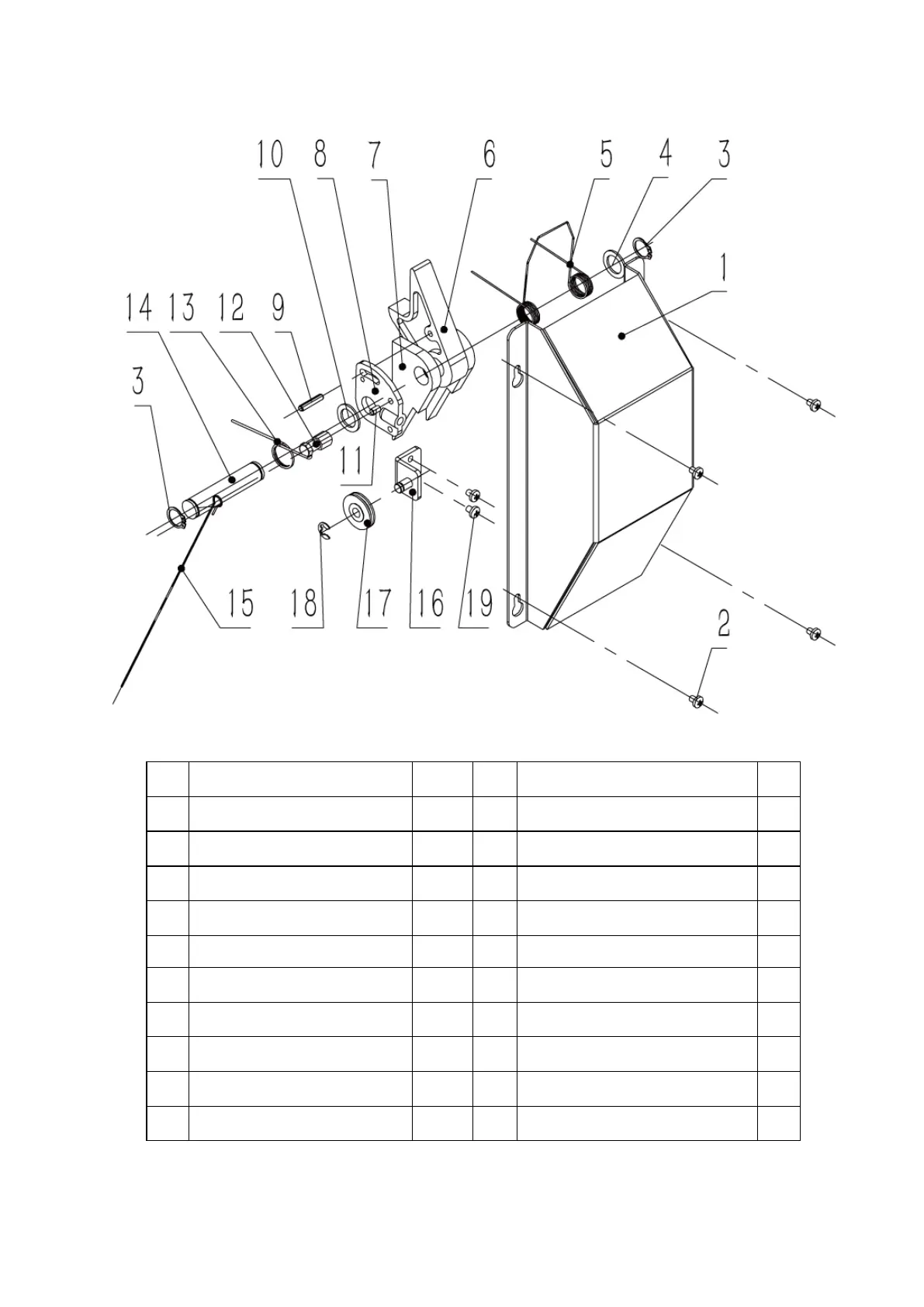

10.6 Slave column safety lock assembly
No. Name Qty. No. Name Qty.
1 Safety lock cover 1 11
Jack screw M6×10
1
2
Cross semicircle screw M6×8
4 12 Lock release line basement 1
3 Clamp spring Φ20 2 13 Torsional spring 1
4 Gasket Φ20 1 14 Safety lock pin 1
5 U shape spring 1 15 Lock release thin wire 1
6 Safety lock 1 16 Lock release wire basement 1
7
Lock tongue（casng）
2 17 Lock release Nylon pulley 1
8 Lock release handle basement 1 18 Clamp spring Φ9 1
9
Hollow pin Φ6×30
1 19
Cross semicircle screw M6×8
2
10 gasketΦ20 1
