A: High Definition Multimedia Interface

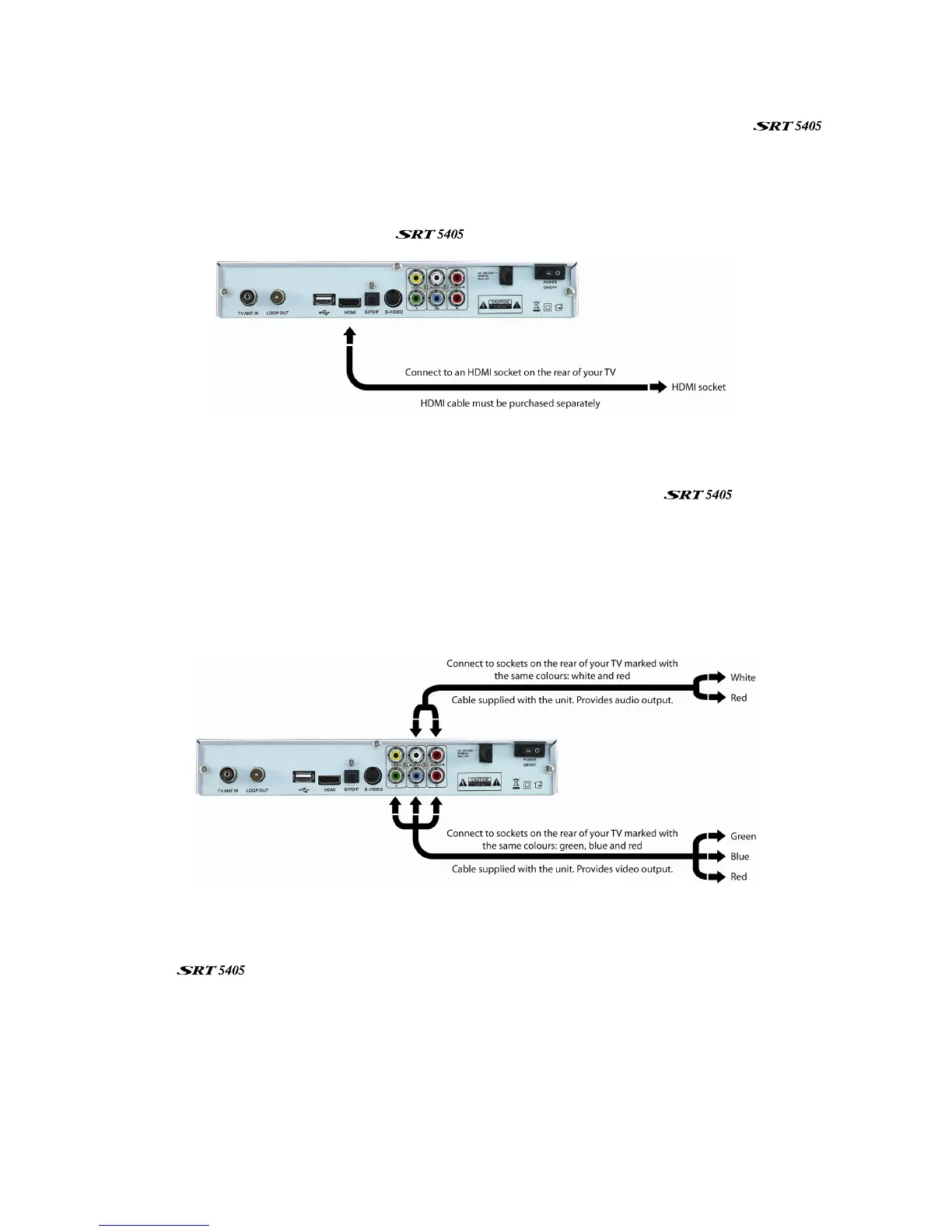

If your TV has an HDMI socket, connect an HDMI cable between the HDMI socket on the
(socket 4) and the HDMI socket on your TV.
A HDMI connection incorporates video and audio. You do not need to make separate connections for
audio.
An HDMI cable is not provided with the
.
B: Y/Pb/Pr (Component) using the supplied RCA blue–red–green cable
For Component video, connect to your TV with the supplied Y/Pb/Pr Component cable (with blue, red
and green leads). Connect the leads between the Y, Pb and Pr sockets on the
(socket
group 7, taking care to match the colour of a lead with the colour of the socket), and the
corresponding Component sockets on your TV. (The Component sockets on the TV have the same
colour-coding.)
You will need to make separate connections for left and right audio via the audio sockets in socket
group 9. This can be done using the supplied RCA cable. (Match the colour of the plugs with the
colour of the sockets.)
C. S-Video (Y/C) connection
If your TV has a 4-pin Mini Din S-Video socket, you can connect an S-Video cable between socket 6
on the
and the corresponding S-Video socket on your TV. (An S-Video cable is not
supplied.)
You will need to make separate connections for left and right audio via the audio sockets in socket
group 9. This can be done using the supplied RCA cable. (Match the colour of the plugs—white
and red—with the colour of the sockets.)
