US-7
This device has to be serviced every two years. The chapter
Function Test describes this routine inspection.
Please use the maintenance and checklist included in the back
of the service manual to document the bi-annual inspection.
1-4 Testing Tools and Resources
The following tools and resources are required to perform the
maintenance and service tasks described in this manual.
Please make sure that all tools and resources are calibrated
and in perfect working order before commencing any service or
maintenance tasks.
 Manometer Range 0-70 mm Hg,
Test Class 1.0
 Manometer Range 0-7 bar,
Test Class 1.6
 Manometer Range 0-100 bar,
Test Class 1.6
 Silicone Tube 8x2 mm
 PVC Tube 6x4 mm, 1 m
 T Connector 8-8-8 mm
 Flow Column Range 0-20 l/min CO2
Max. Pressure Drop at 9 l/min < 10
mbar
 Flow Column Range 0-40 l/min CO2
Max. Pressure Drop at 9 l/min < 10
mbar
 Veress Hollow Needle
Length 100 mm,
Opening Diameter 1.4 mm,
Inner Diameter 1.6 mm
 Heater
Calibration Box T100/T101
 Universal Multimeter
1 Introduction/Basics
1-5 Front of the Device

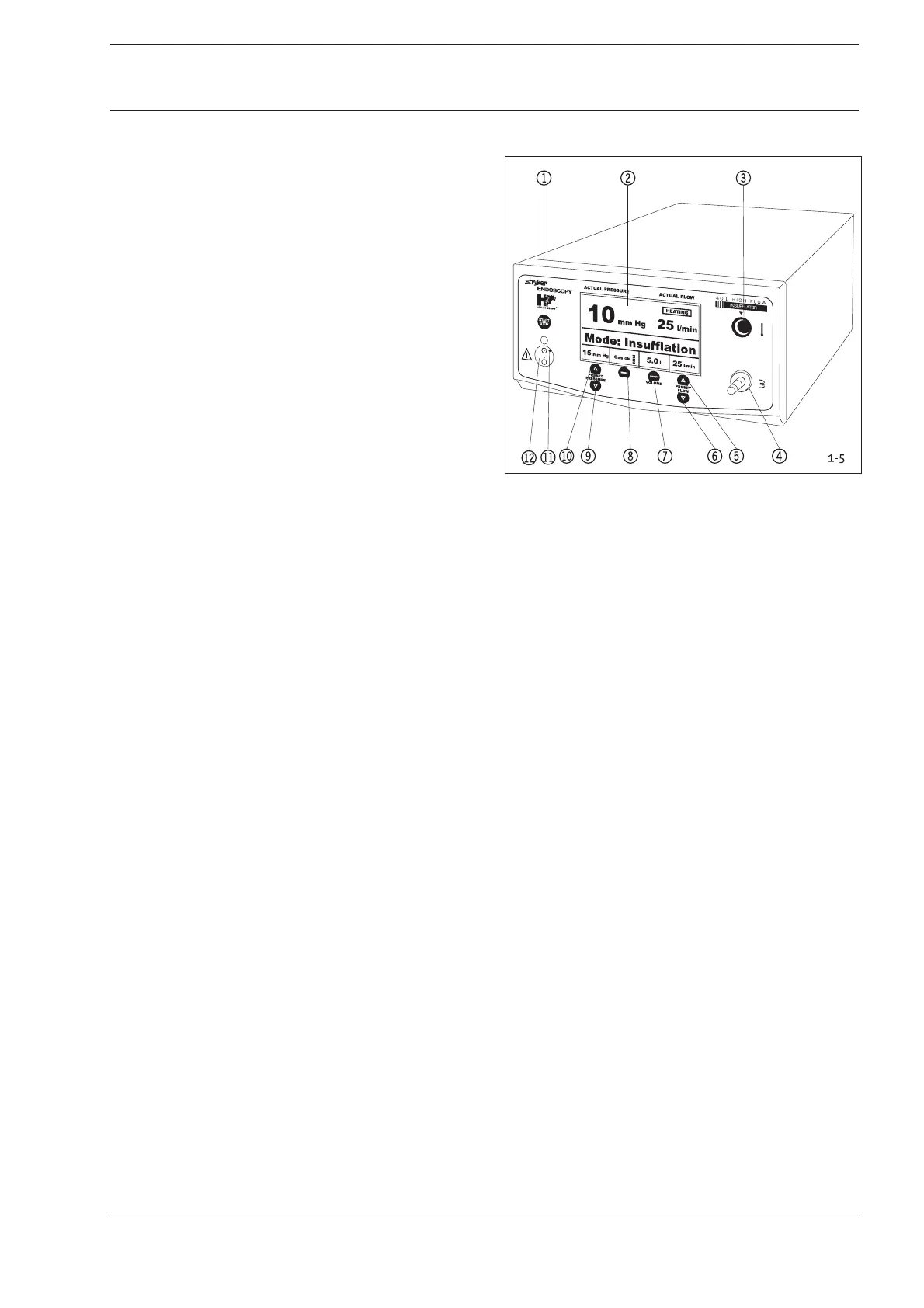

Fig. 1-5: : F105 Front Control and Display Elements
1 Start/Stop Key
2 Display
3 Gas Heater Connection
4 Insufflation Tube Connection
5 Nominal Gas Flow +
6 Nominal Gas Flow -
7 Gas Consumption Reset Key
8 Menu Key
9 Nominal Pressure -
bl Nominal Pressure +
bm Line Voltage LED
bn ON/OFF Key
