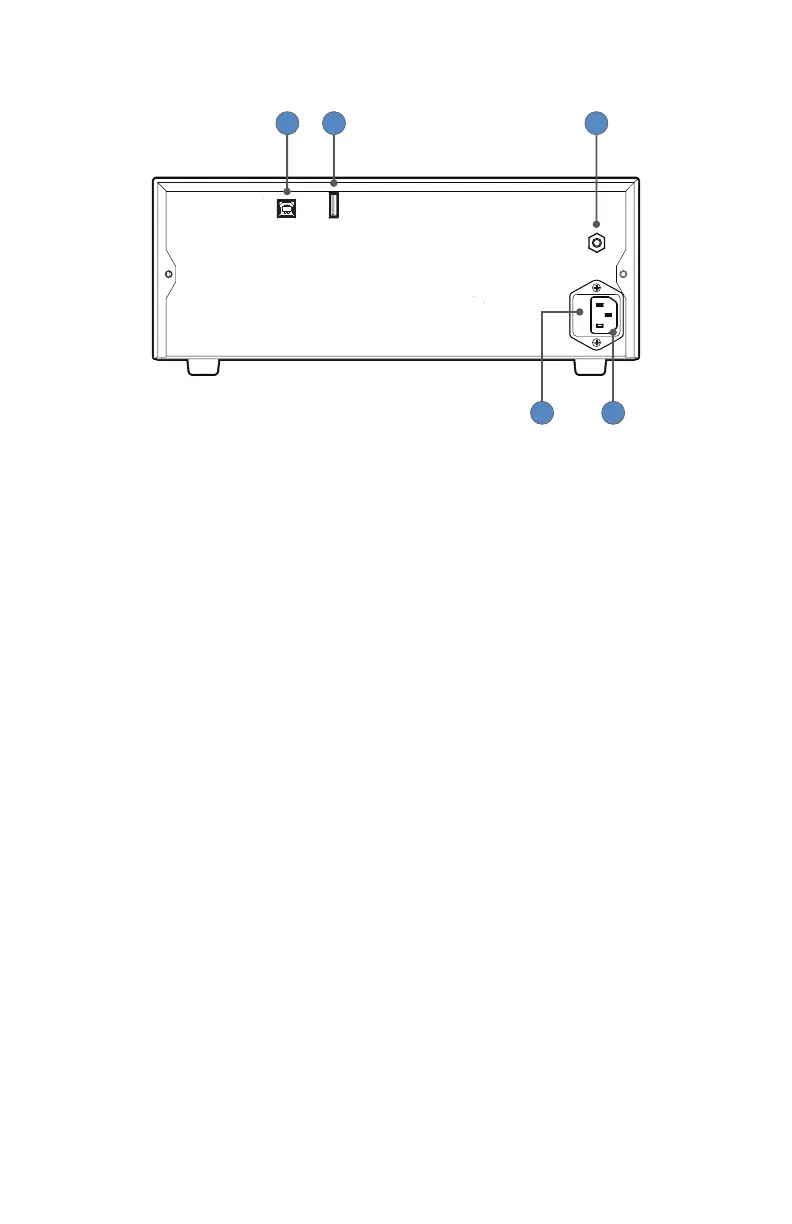

Rear Panel
SDC CCU
5
31 2
4
1. SDC connection Connects to Stryker SDC for voice and device
control with a USB A-to-B cable
2. CCU connection Connects to Stryker 1588AIM Camera Control
Unit with the provided USB A-to-A cable
3. Equipotential
Ground Plug
Connects to a potential equalization conductor.
The resulting medical electrical system shall
follow all applicable IEC 60601-1 requirements.
4. Fuse Panel Contains two T 5.0AH 250V (slow blow, high
breaking capacity 1500A) fuses
5. AC Inlet Connects to AC mains with the provided,
separable power cord
