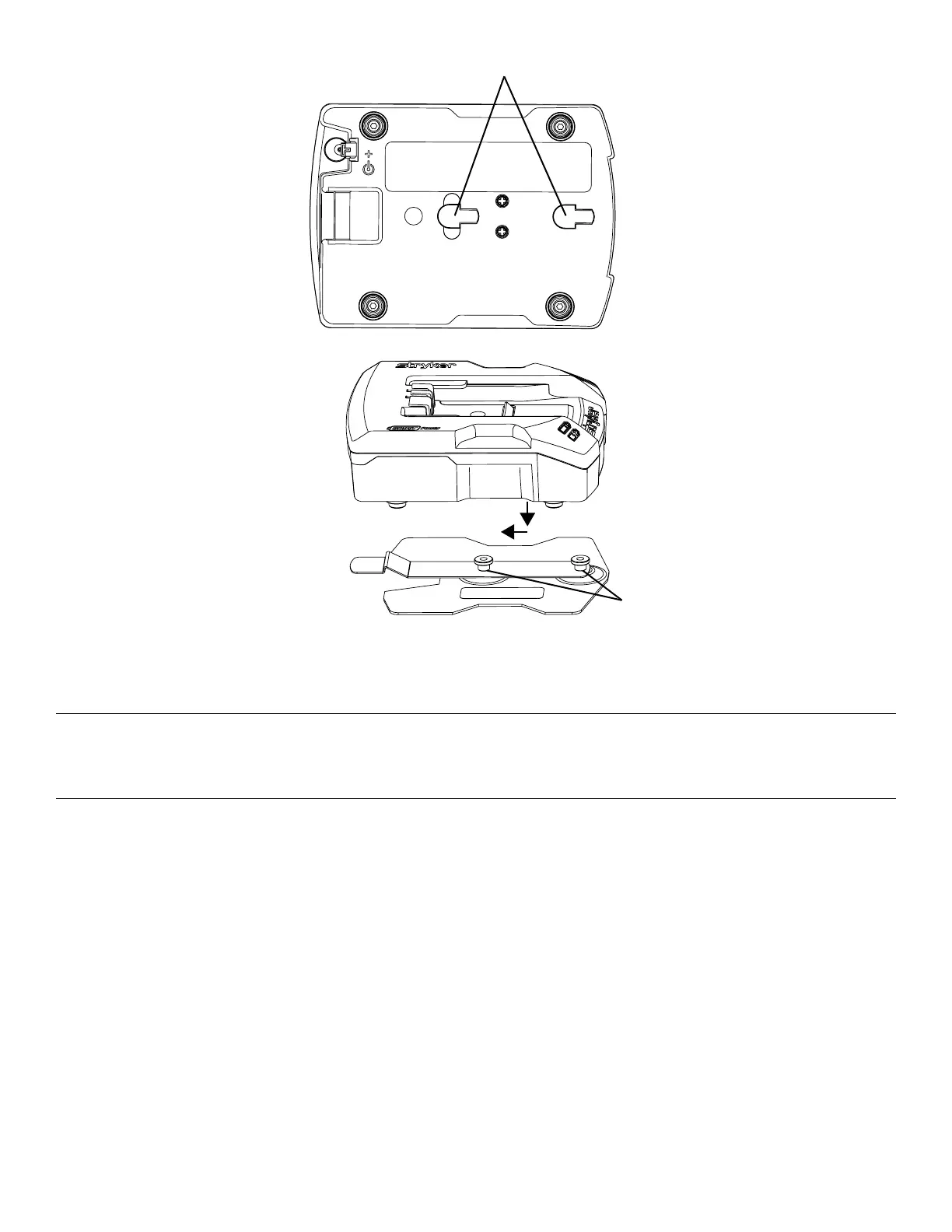

FFiigguurree 2299 –– IInnssttaalllliinngg tthhee cchhaarrggeerr
PPoowweerriinngg tthhee cchhaarrggeerr
CCAAUUTTIIOONN
• Always place the electrical SSMMRRTT charger power cord where it will not be stepped on, tripped over, or otherwise
subjected to damage or stress.
• Do not touch the SSMMRRTT Pak receptacle terminals with metal objects.
To power the SSMMRRTT charger (Figure 30):
1. Locate the power connection (A) on the back of the SSMMRRTT charger.
2. Push the power cord retention tab (B) in to insert the power cord outlet connector into the SSMMRRTT charger power
connection.
3. Plug the power adaptor end of the power cord into the power source.
It is a best practice to use a clean, uninterruptible power source. The SSMMRRTT charger continuously illuminates a solid green
power LED when it is connected to a power supply.
Use only Stryker-approved parts to power the SSMMRRTT charger.
6516-209-001 Rev D.0 45 EN
