23OCH0006F08/13/2024
CEILAIR
®
CW & DX IOM
2.4.2 OUTDOOR EQUIPMENT
2.4.1 Indoor Equipment
CeilAir systems have a frame and panel construction for unit rigidity and full service accessibility while the unit
is mounted in place. The unit is lifted from underneath and secured into place using all-thread rods passing
through rubber grommets or a 4 in x 4 in neoprene cork pad in the mounting arms on the sides of the unit.
Threaded rods, nuts, and washers (field supplied by others) must be secured so they do not loosen. See
Figure 6.
Before mounting the unit, ensure the mounting structure will support its weight. Refer to the weight table
provided on the installation drawing. Secure the unit via the predrilled mounting bolt holes with suitable
hardware for the application. An auxiliary drain pan is recommended and can be mounted directly under the
cabinet (only on ducted models; see Figure 9).
2.4.2 Outdoor Equipment
Install remote condensers/condensing units in a location that is secure and tamper-proof. Limit access to
the power service switch so it will not be accidentally shut off. Locate the remote condenser/condensing unit
where the fan is not likely to draw dirt or debris into the coil fins.
(BY OTHERS)

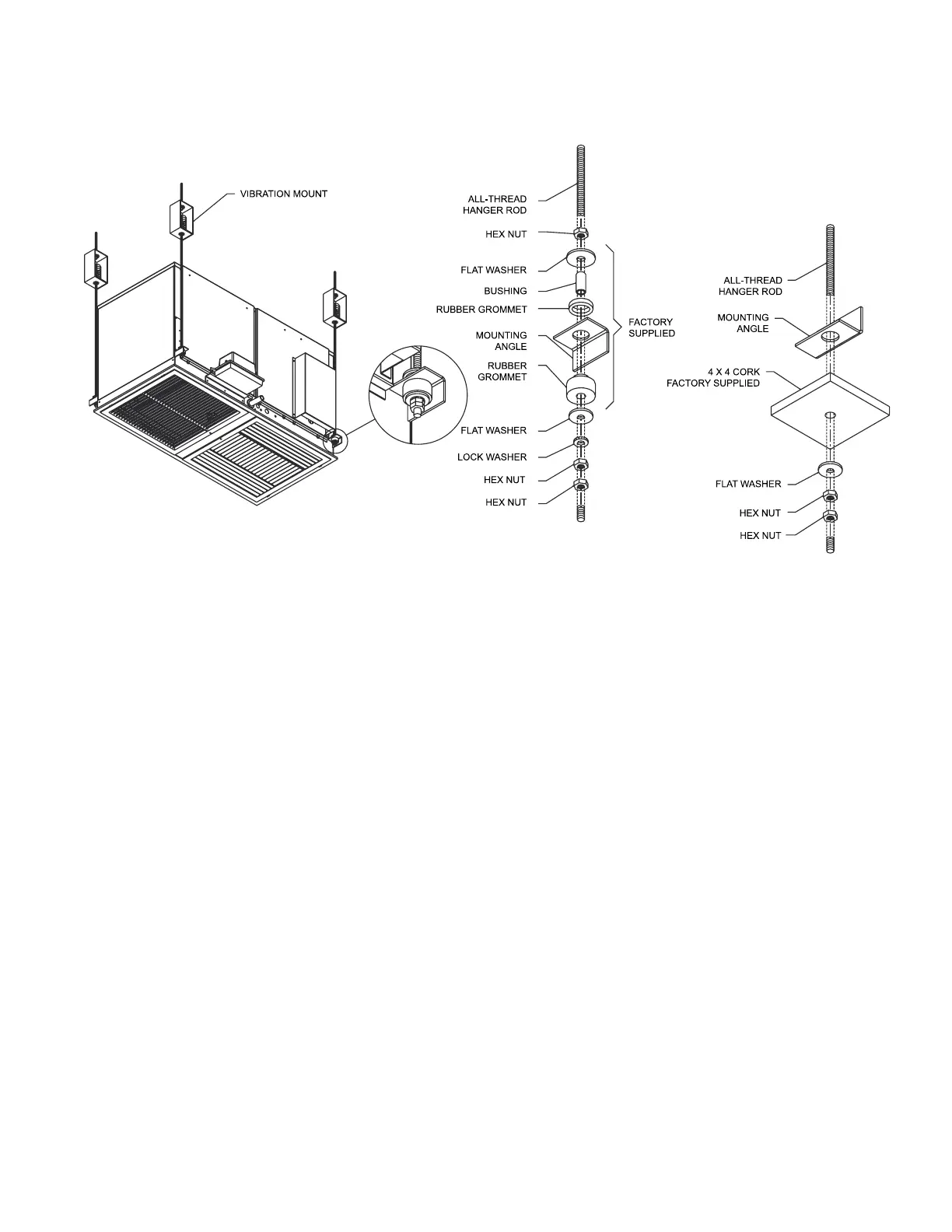

Figure 6. Typical Installation
