Electrical Systems Operation & Diagnosis Module (602)
BIU
ECM
KA CM
Receiver
Electric Steering Lock Control Unit
Interior Antenna
Starter Relay Push Button
Ignition 2
Remote Key
Ignition1
Accessory Relay
Push Button
Starter Cut Relay
Starter Relay
Brake Switch

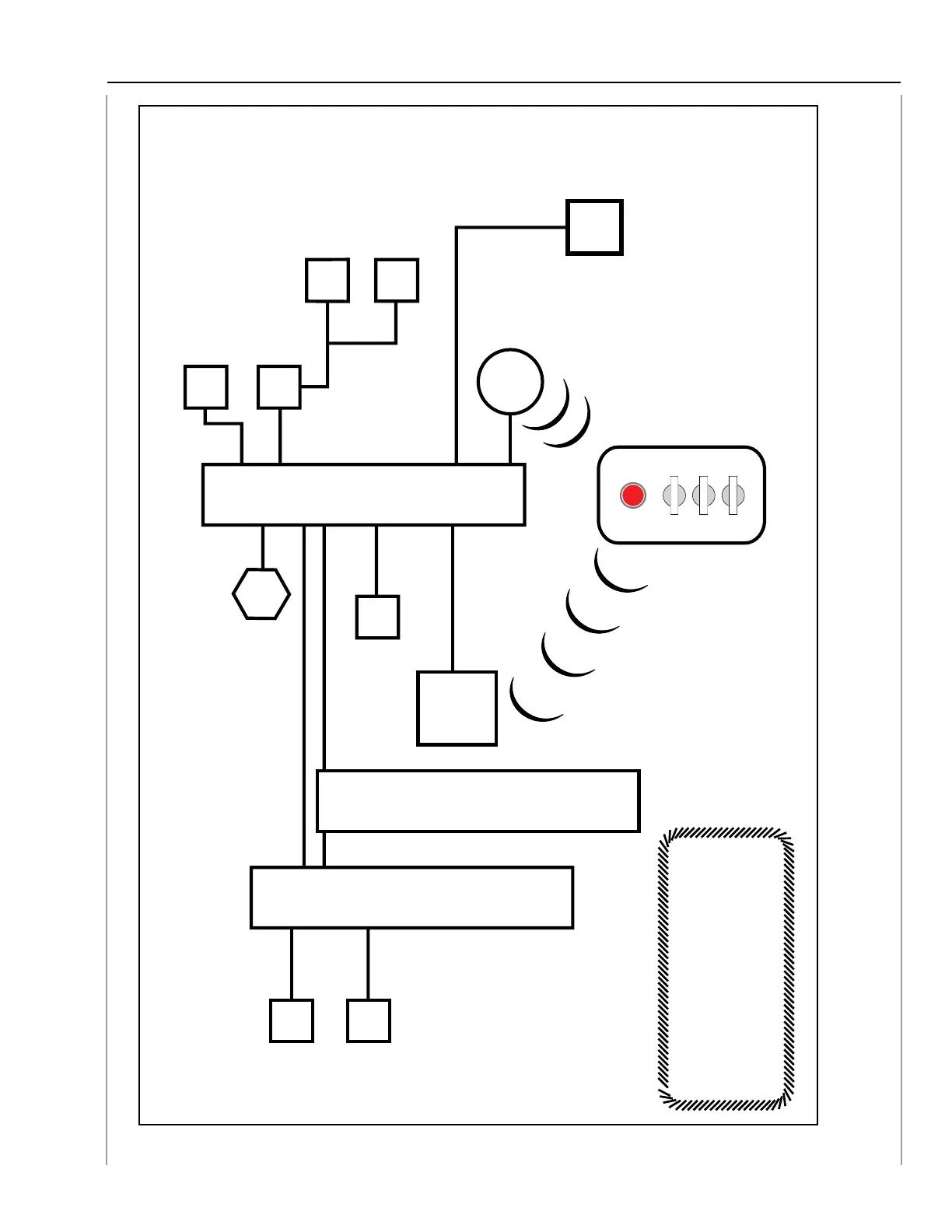

4. The driver presses the brake pedal and pushes the Engine Start and Stop button once. The starter engages and
operates until the engine starts or for 10 seconds.
Remote Key Location
Inside of Car
Keyless Access Function
Engine Start
