73
June 2013
Electrical Systems Operation & Diagnosis Module (602)

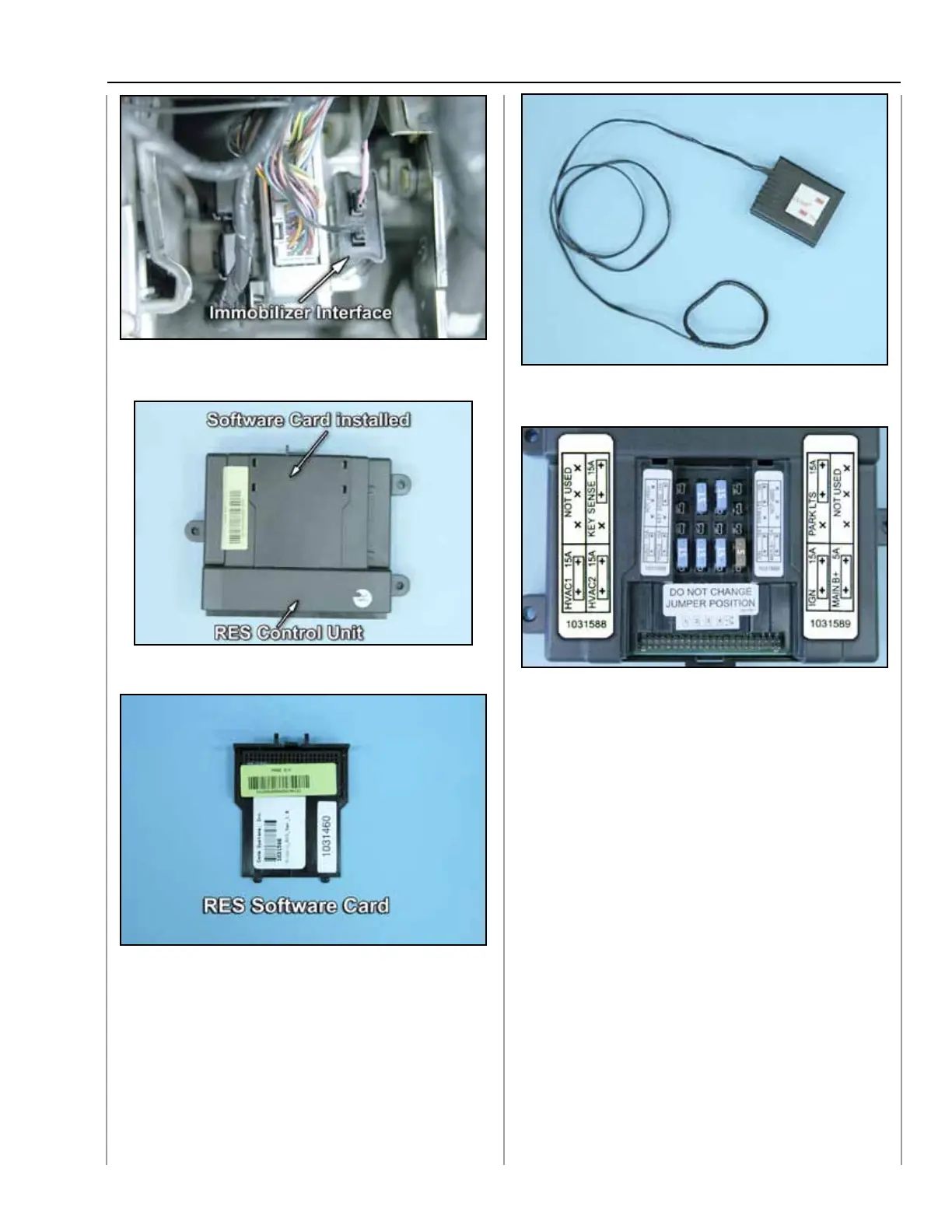

Immobilizer Interface Location
Software Card & Res Control Unit
RES Software Card
Immobilizer Interface
Inside Res Control Unit, Under Software Card
NOTE: IF THE BIU IS REPLACED ALL
KEYS, SOFTWARE CARD AND
IMMOBILIZER BOX OF THE RES
MUST BE REPLACED.
133
134
135
136
137
