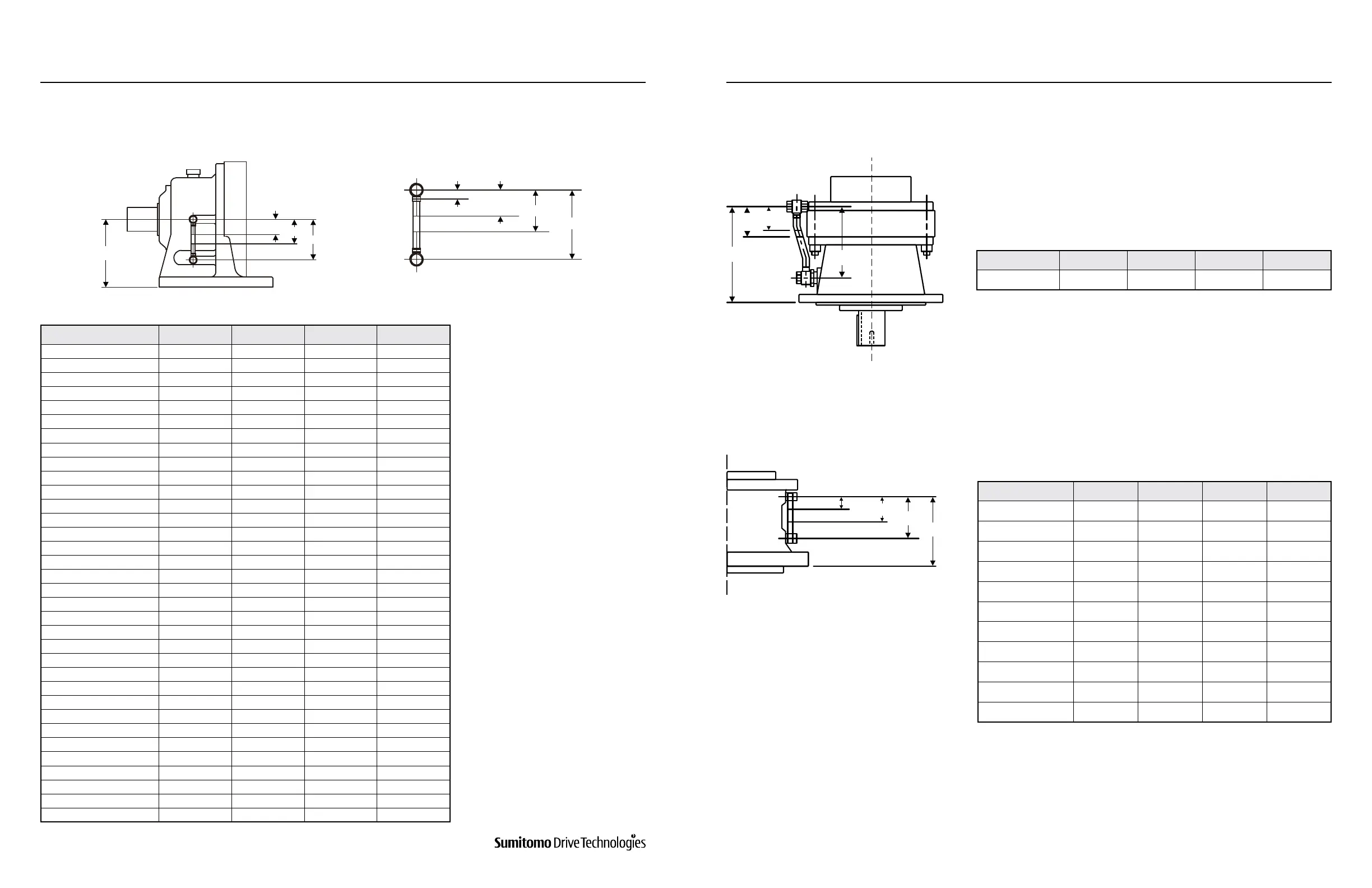

Figure 8-3: Oil Level Dimensions Horizontal Types
Figure 8-4: Oil Level Dimensions Vertical Types 6130 ~ 614H
Figure 8-5: Oil Level Dimensions Vertical Types 6160 ~ 6275
Frame Size:
Only 6130 ~ 6145
A
B
C
L
A
B
L
1/4”
Table 8-12: Oil Level Dimensions Inches (Millimeters) Horizontal Types
Table 8-13: Oil Level Dimensions Inches (Millimeters) Vertical Sizes 6130 ~ 614H
Table 8-14: Oil Level Dimensions Inches (Millimeters) Vertical Sizes 6160 ~ 6275
Frame Size
A B C L
6130, 6135, 6140, 6145 1.38 (35) 2.17 (55) 5.91 (150) 4.65 (118)
614H 1.38 (35) 2.17 (55) 6.3 (160) 4.65 (118)
6160, 6165 1.57 (40) 2.76 (70) 6.3 (160) 3.7 (94)
616H 1.57 (40) 2.76 (70) 7.87 (200) 3.7 (94)
6160DC, 6165DC 1.18 (30) 1.77 (45) 6.3 (160) 3.7 (94)
6170, 6175 1.97 (50) 3.35 (85) 7.87 (200) 4.96 (126)
6170DC, 6175DC 1.18 (30) 1.77 (45) 7.87 (200) 4.96 (126)
6180, 6185 2.17 (55) 3.94 (100) 8.66 (220) 5.91 (150)
6180DB, 6185DB 1.38 (35) 2.17 (55) 8.66 (220) 5.91 (150)
6190, 6195 2.26 (57) 3.25 (83) 9.84 (250) 6.61 (168)
6190DA, 6195DA 1.18 (30) 1.77 (45) 9.84 (250) 6.61 (168)
6190DB, 6195DB 1.38 (35) 2.18 (55) 9.84 (250) 6.61 (168)
6205 2.12 (54) 3.19 (81) 9.84 (250) 6.06 (154)
6205DA 1.26 (32) 1.93 (49) 9.84 (250) 6.06 (154)
6205DB 1.26 (32) 2.13 (54) 9.84 (250) 6.06 (154)
6215 2.05 (52) 3.03 (77) 10.43 (265) 6.85 (174)
6215DA 1.18 (30) 1.97 (50) 10.43 (265) 6.85 (174)
6215DB 1.57 (40) 2.76 (70) 10.43 (265) 6.85 (174)
6225 2.25 (57) 3.43 (87) 11.03 (280) 6.85 (174)
6225DA 1.26 (32) 2.05 (52) 11.03 (280) 6.85 (174)
6225DB 1.85 (47) 3.43 (87) 11.03 (280) 6.85 (174)
6235 2.48 (63) 3.47 (88) 11.81 (300) 7.64 (194)
6235DA 1.57 (40) 2.75 (70) 11.81 (300) 7.64 (194)
6235DB 1.97 (50) 3.35 (85) 11.81 (300) 7.64 (194)
6245 2.76 (70) 3.78 (96) 13.19 (335) 8.46 (215)
6245DA 1.65 (42) 2.72 (69) 13.19 (335) 8.46 (215)
6245DB 2 (51) 3.35 (85) 13.19 (335) 8.46 (215)
6255 3.19 (81) 4.17 (106) 14.76 (375) 9.02 (229)
6255DA 1.97 (50) 3.35 (85) 14.76 (375) 9.02 (229)
6255DB 2.05 (52) 3.23 (82) 14.76 (375) 9.02 (229)
6265 3.23 (82) 4.21 (107) 15.75 (400) 10.16 (258)
6265DA 2.28 (58) 3.27 (83) 15.75 (400) 10.16 (258)
6275 3.35 (85) 4.53 (115) 21.26 (540) 11.22 (285)
6275DA 2.26 (57) 3.25 (83) 21.26 (540) 11.22 (285)
Frame Size
A B C L
6130 - 614H 1.85 (47) 2.72 (69) 7.52 (191) 5.79 (151)
Frame Size
A B C L
6160, 6165, 616H 1.02 (26) 1.42 (36) 4.68 (119) 2.72 (69)
6170, 6175 1.69 (43) 2.48 (63) 6.02 (153) 3.78 (96)
6180, 6185 1.93 (49) 2.72 (69) 6.81 (173) 4.25 (108)
6190, 6195 2.09 (53) 3.27 (83) 7.87 (200) 5.47 (139)
6205, 6215 1.46 (37) 2.05 (52) 7.09 (180) 3.54 (90)
6225 1.46 (37) 2.05 (52) 7.87 (200) 3.54 (90)
6235 1.46 (37) 2.05 (52) 7.72 (196) 3.54 (90)
6245 1.46 (37) 2.05 (52) 7.96 (202) 3.54 (90)
*6255 4.33 (110) 4.92 (125) 19.76 (502) 6.57 (167)
*6265 4.65 (118) 5.24 (133) 21.69 (551) 7.17 (182)
6275 1.97 (50) 2.76 (70) 13.39 (340) 5.51 (140)
A
B
C
L
B
A
C
L
*Note: Oil level gauge is located on the Ring Gear Housing
instead of V-Casing.
