To drain the oil, remove the oil drain plug and the plug at the bottom of the oil gauge.
Grease lubricated units are shipped with grease from factory.

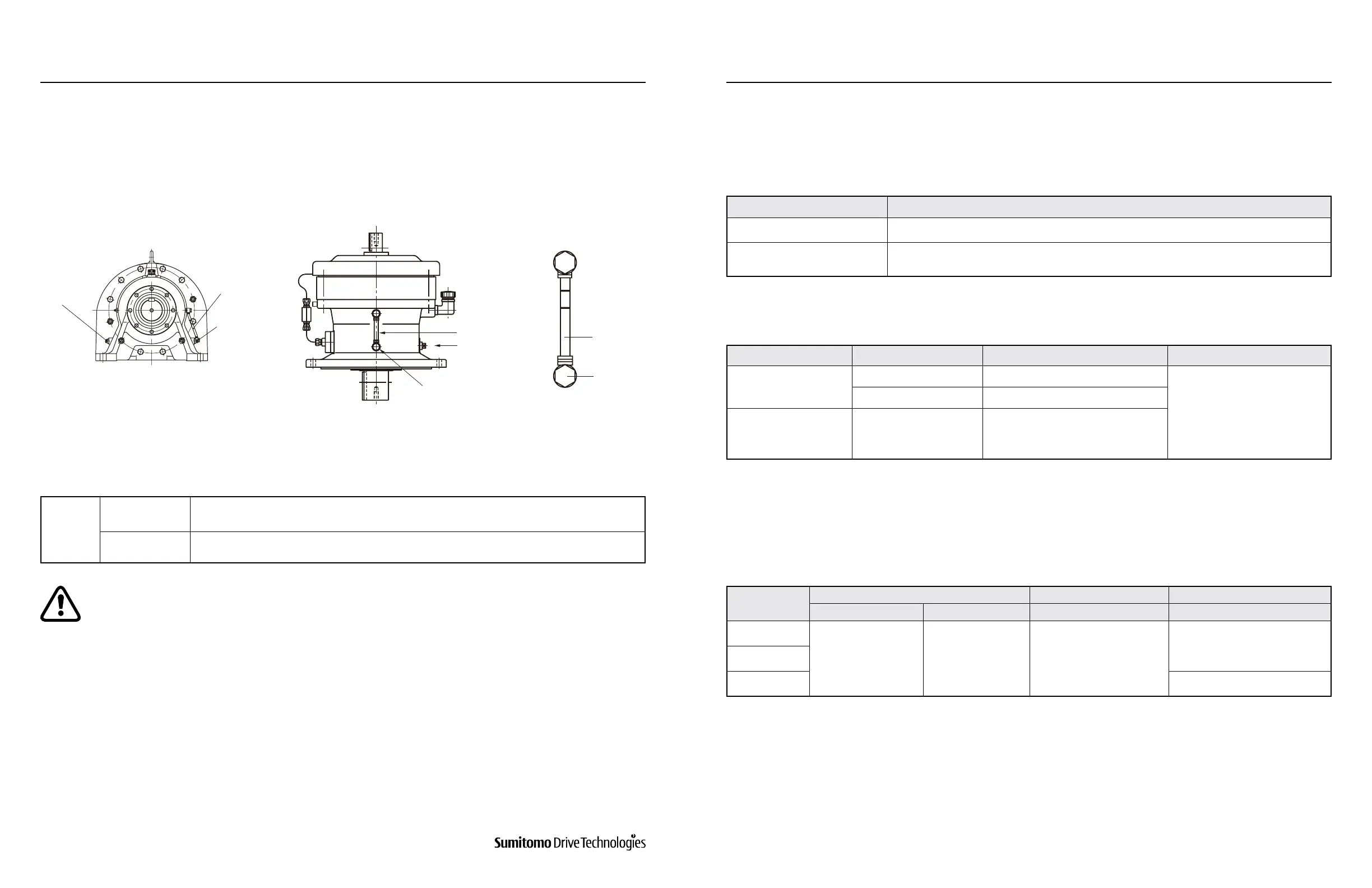

Figure 8-6: Oil Draining
8.3.5 Draining Procedure
8.4.2 Approved Greases
Oil gauge
Plug
Oil gauge
plug
Drain plug
Oil gauge
Drain plug
Plug
Horizontal type Vertical type
Table 8-15: Long Term Shutdown/Storage
8.3.6 Long Term Shutdown/Storage
Period of
Inactivity
Approximately
1 Month
Before shutdown/storage, change to new oil and run the machine for a few minutes.
1 Month or More Before shutdown/storage, ush, ll with rust preventing oil, and run for a few minutes under no load.
When resuming operation after a long period of inactivity, change to new oil because the
existing oil may have degraded.
Table 8-16: Grease Replenishment and Change Intervals for Maintenance-Free Units
Table 8-17: Grease Replenishment and Change Intervals for Non-Maintenance-Free Units
Table 8-18: Approved Greases
Condition Interval
Replenishment Not required
Change (Overhaul
*
)
Although these models are maintenance-free and can run for a long time without replenishment,
overhauling after approximately 20,000 hours or 3 to 5 years will increase gearbox’s usable life.
Condition Operation Time Interval Special Considerations
Replenishment
Less than 10 Hours Per Day Once Every 3 – 6 Months
Shorten the replenishment
interval when the operating
conditions are outside standard
ambient conditions (see Section
4.1 Installation Location) and/or
for frame sizes 6205 or larger.
10 – 24 Hours Per Day Once Every 500 – 1,000 Hours
Change (Overhaul
*
) All
Overhauling after approximately 20,000
hours or 3 to 5 years will increase
gearbox’s usable life.
Frame Size
Ambient Temperature Planetary Cycloid Discs
°F °C (NLGI Grade 0) (NLGI Grade 2)
606X to 612X
14 to 122 -10 to 50
Shell Gadus S2 V220
(610X, 612X to 617X)
Mobil Unirex N2
Ultrachem Omnilube FGM-2 (FG)
613X to 616X
617X to 626X Shell Gadus S2 V220
8.4 Grease Replenishment for Grease Lubricated Units
8.4.1 Grease Replenishment Intervals
Notes:
Note*
•
For double reduction units, standard grease is Mobil Unirex N2 NLGI Grade 2, except for frame sizes 6215DB, 6225DB, 6235DA/DB, 6245DA/DB, 6255DA/
DB, 6265DA, and 6275DA, which standard grease is Shell Gadus S2 V220 NLGI Grade 2.
•
For triple reduction units, standard grease is Mobil Unirex N2 NLGI Grade 2.
•
“X” in frame size can be “0” or “5”.
•
Only use grease listed in Table 8-18.
•
The maintenance method will dier according to product although the same grease is used.
•
Please consult factory when regularly used in an ambient temperature outside 32 °F to 104 °F (0 °C to 40 °C) range
•
FG = Food Grade Grease. Considered non-standard and non-maintenance-free grease. Available upon customer’s request.
Overhauling consists of disassembling the unit, replacing the seals and gaskets, cleaning the
internal parts, and then re-packing the unit with designated grease.
Note*
Overhauling consists of disassembling the unit, replacing the seals and gaskets, cleaning the
internal parts, and then re-packing the unit with designated grease.
