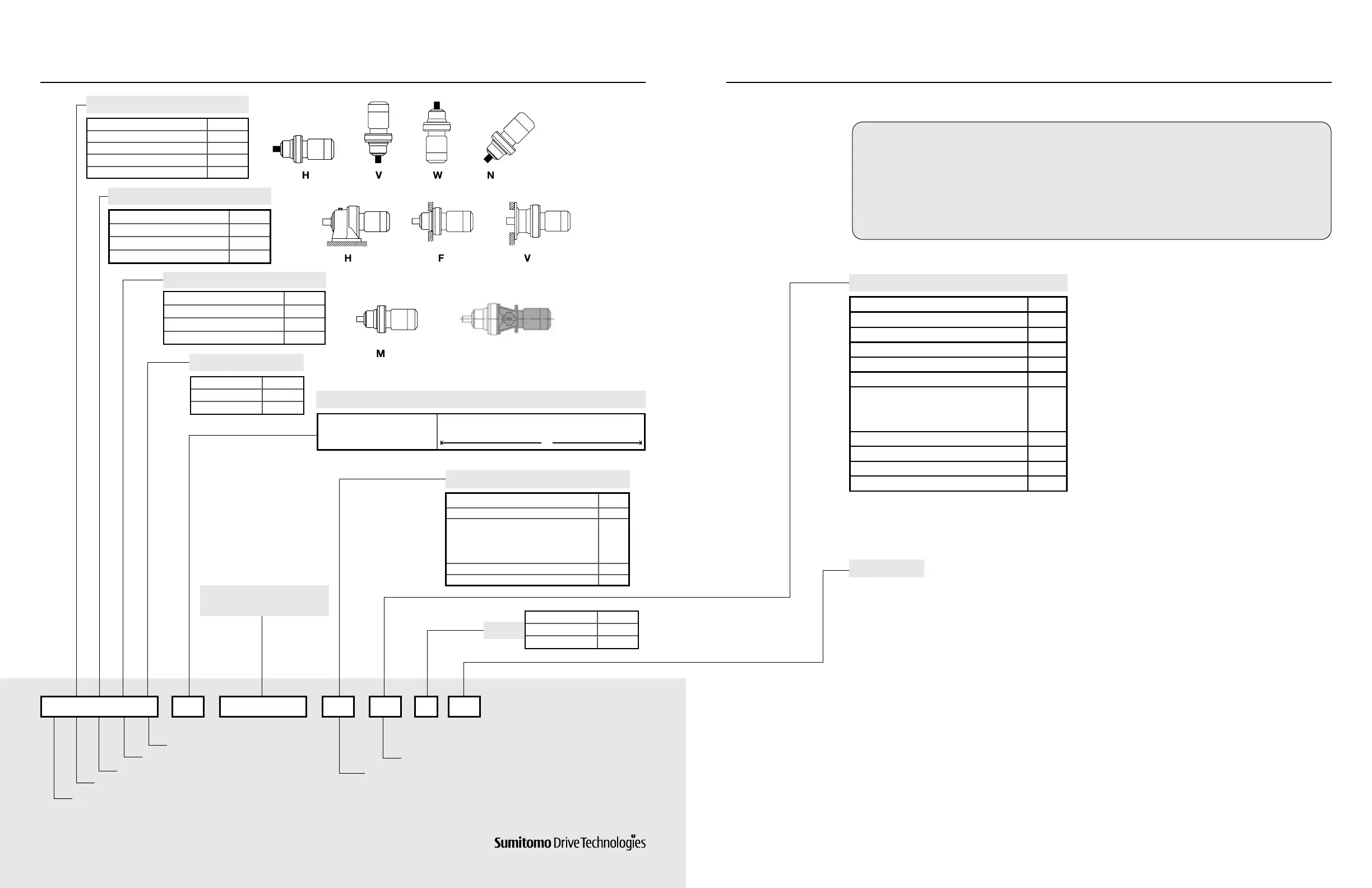

Sumitomo Drive Technologies Cyclo 6000 - GEARMOTOR NOMENCLATURE

Gearmoter Specication
C = Ratios 6:1 and greater (Cyclo® Speed Reducer Product Code)
P = Ratios 3:1 and 5:1 (Cyclo® 6000 Planetary Product Code)
Output Shaft Orientation
Mounting Style
Input Connection
Modication (Special Feature)
Brake Ratio
Shaft Specication
Output Shaft Orientation
Housing Style
Type Code
Foot H
Flange F
V-Flange V
Shaft Specication
Shaft Code
Metric JIS -
Inch Y
AGMA I YA
AGMA II YB
AGMA III YC
Standard Metric DIN “G” (up to size 6125) G
Standard Metric DIN “E” (up to size 6145) E
Type Code
Horizontal
[1]
H
Vertical
[1]
V
Vertical Up
[1]
W
Universal Direction
[2]
N
Type of Input
Motor Connection Code
Integral Motor M
C-Face Adapter JM
Hollow Input Shaft XM
Modication (Special)
Code
Special S
Standard -
C H
- - - -
H
Frame Size
6 1 6 5
YB EP
JM
29
C H H M
Motor Capacity
10
Frame Size
(Page 10, Table 1-1 to 1-3)
Motor Capacity
Note: For standard fractional motors (non inverter duty), no specication code sux is required.
4P
HP 1/8 1/4 1/3 1/2 3/4 1 1.5 2 3 4 5 7.5 10 15 20 25 30 40 50 60 75
Symbol 01 02 03 05 08 1 1H 2 3 4 5 8 10 15 20 25 30 40 50 60 75
EP
Brake
Code
With Brake B
No Brake
Foot
Gearmotors Reducers With Adapter
Hollow Shaft
V-FlangeFlange
Foot
Gearmotors Reducers With Adapter
Hollow Shaft
V-FlangeFlange
Foot
Gearmotors Reducers With Adapter
Hollow Shaft
V-FlangeFlange
Specication Codes
Nominal Ratio
Example:
CHHM10 – 6165YB – EP - 29
C – Cyclo 6000 6165 – Frame Size
H – Horizontal O/P Y – Inch Shaft, AGMA Class II
H – Foot Mount EP – Three Phase Motor Premium Eciency
M – Gearmotor 29 – Ratio
Type Sux
AF Motor (Inverter Duty, 1/8 HP to 3/4 HP) AV
Three-Phase Motor Premium Eciency (1+ HP), IE3 EP
High Capacity Bearing R1
High Capacity Bearings + Ductile Casing R2
*DC Motor DV
*CHH Type Oil Sight Mount Ceiling H1
Oil Sight Mount Left Wall H2
Oil Sight Mount Right Wall H3
*Low Backlash LB
*Single Phase Motor SG
*Servo Motor SV
*Torque Limiter TL
*For technical information please contact customer service.
Note: When there are multiple suces, sequence them alphabetically.
Ex.: EPTL
Notes:
[1]: H, V, W, units cannot change
orientation in the eld.
[2]: Universal Direction (N) units
are maintenance-free greased.
