Sumitomo Drive Technologies Cyclo 6000 - 10 Construction Drawings; Gear Unit Construction Drawings (1 & 2 Stage Reduction)

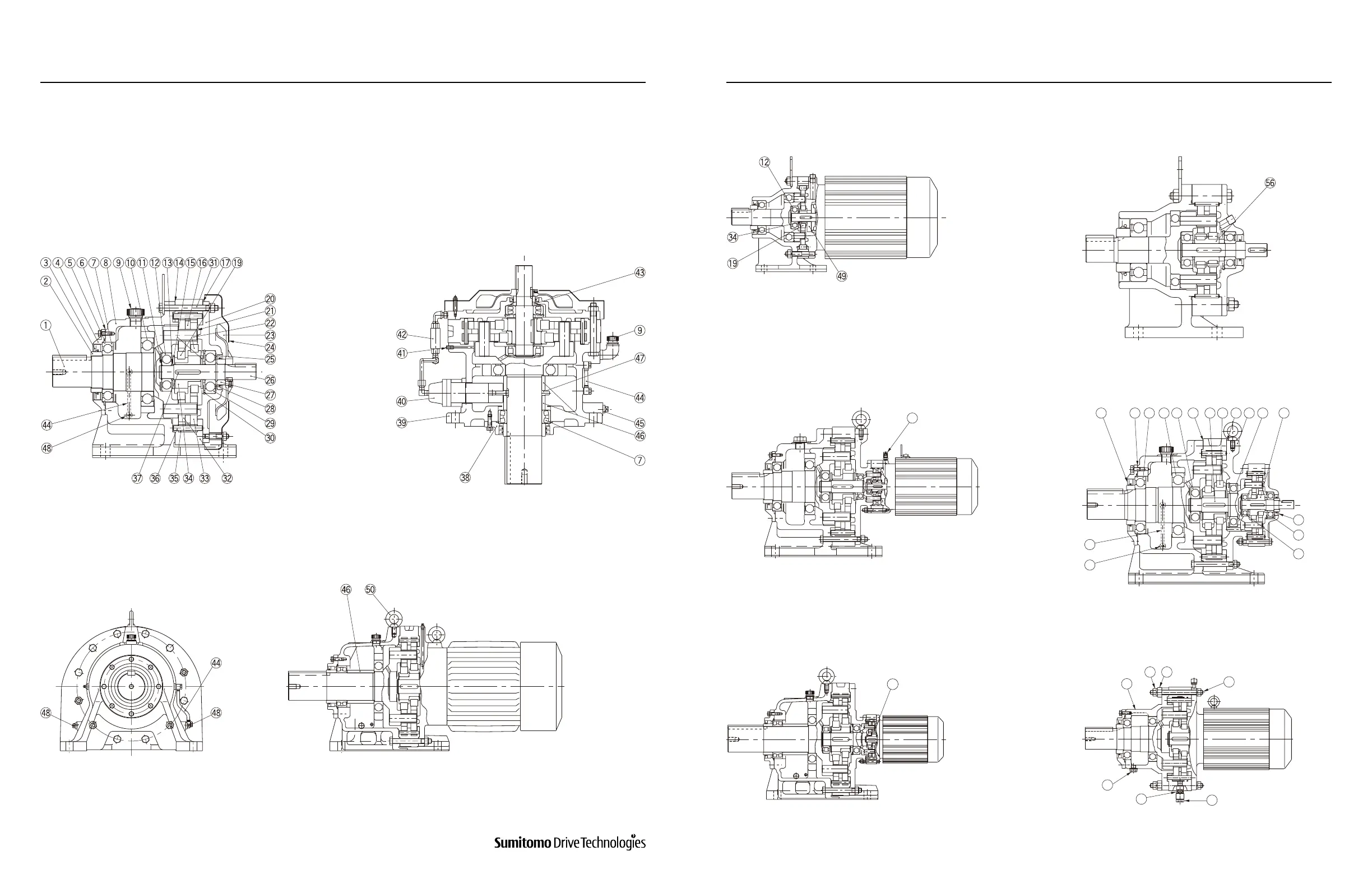

Figure 10-1: Type CHH (Horizontal, Reducer),
1 Stage Reduction (Example: Frame size 6175)
Figure 10-4: Type CNHM (Horizontal, Gearmotor),
1 Stage Reduction (Example: Frame size 6095)
Figure 10-6: Type CHHM (Horizontal, Gearmotor),
2 Stage Reduction (Example: Frame size 6185DA)
Figure 10-8: Type CHHM (Horizontal, Gearmotor),
2 Stage Reduction (Example: Frame size 6225DB)
Figure 10-3 Type CHHM (Horizontal, Gearmotor),
1 Stage Reduction (Example: Frame size 6225)
Figure 10-2: Type CVV (Vertical, Reducer),
1 Stage Reduction (Example: Frame size 6225)
Figure 10-5: Type CNH (Horizontal, Reducer),
1 Stage Reduction (Example: Frame size 6105)
Figure 10-7: Type CHH (Horizontal, Reducer),
2 Stage Reduction (Example: Frame size 6185DB)
Figure 10-9: Type CHFM (Horizontal, Gearmotor),
1 Stage Reduction (Example: Frame size 6165)
