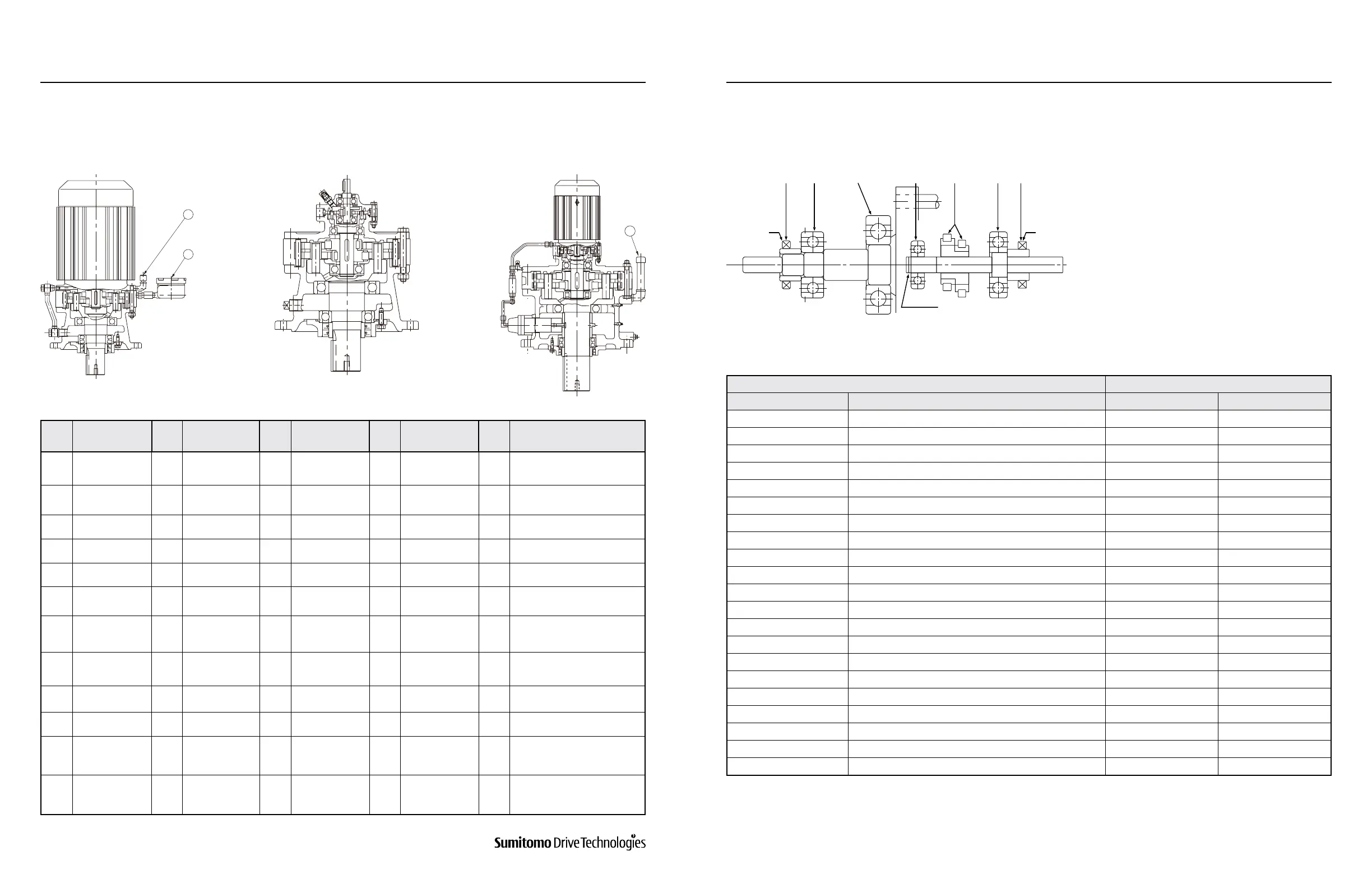

Figure 10-10:
Type CVVM (Vertical, Gearmotor),
1 Stage Reduction
(Example: Frame size 6145)
Figure 10-11:
Type CVV (Vertical, Gearmotor),
2 Stage Reduction
(Example: Frame size 6135DA)
Figure 10-12:
Type CVVM (Vertical, Gearmotor),
2 Stage Reduction
(Example: Frame size 6225DA)
Table10-1: Gear Unit, Principal Parts 1 Stage Reduction, 2 Stage Reduction
Item Description Item Description Item Description Item Description Item Description
1
Slow Speed
Shaft (SSS)
13 Spacer Ring 25 Oil Seal 37 Key 49 Balance Weight
2 Collar 14 Gasket B 26
High Speed
Shaft (HSS)
38 Oil Seal Housing 50 Eye Bolt
3 Oil Seal 15 Spacer 27 Collar 39 Flanged Casing 51 Oil Fill Cup
4 Oil Seal Housing 16 Spacer Ring 28 Spacer Ring 40 Plunger Pump 52 Bearing F
5 Retaining Ring 17 Gasket C 29 Bearing D 41 Air Vent 53 Intermediate Shaft
6 Gasket A 18 Air Vent 30 Retaining Ring 42 Oil Signal 54 Intermediate Cover
7 Bearing A 19
Eccentric Cam
Bearing
31 Upper Bolt 43 Oil Slinger 55 Bearing G
8
Horizontal
Casing
20
High Speed End
Shield
32
Ring Gear
Housing (RGH)
44 Oil Level Gauge 56 Eccentric Cam
9 Oil Filler Plug 21 SSS Roller 33 Cycloid Discs 45 Drain Plug 57 Grease Fitting (w/Cap)
10 Bearing B 22 SSS Pin 34 Eccentric Cam 46 Spacer Ring 58 RGH Bolts (Flange Type)
11
Retaining Ring
for Shaft
23 Cooling Fan 35 Ring Gear Roller 47 Pump Cam 59
Disassembly Prevention Nut
(Flange Type)
12 Bearing C 24 Fan Cover 36 Ring Gear Pin 48 Drain Plug 60
Spacer Replacement Nut
(Flange Type)
Figure 10-13: Slow Speed and High Speed Shaft
18 1-02 1-03 3-02 3-04 3-03 19
Oil Seal
Retaining Ring
High Speed ShaftSlow Speed Shaft
Oil Seal
Table 10-2: Slow Speed Shaft Bearing
Frame Size Slow Speed Shaft
Single Reduction Double Reduction Bearing A Part #1-02 Bearing B Part #1-03
6060, 6065 6060DA, 6065DA 6204Z 6909
6070, 6075 6070DA, 6075DA 6204Z 6909
6080, 6085 - 6305Z 6009
6090, 6095 6090DA, 6095DA 6306Z 16011
6100, 6105, 610H 6100DA, 6105DA 6306Z 16011
6110, 6115 - 6307Z 6011
6120, 6125, 612H 6120DA, 6125DA, 6120DB, 6125DB 6308Z 6013
6130, 6135 6130DA, 6135DA, 6130DB, 6135DB, 6130DC, 6135DC 6211NR 6213
6140, 6145, 614H 6140DA, 6145DA, 6140DB, 6145DB, 6140DC, 6145DC 22211EXNR 6213
6160, 6165 6160DA, 6165DA, 6160DB, 6165DB, 6160DC, 6165DC 3TM-6213NR
[1]
6215
[1]
6170, 6175 6170DA, 6175DA, 6170DB, 6175DB, 6170DC, 6175DC 6216NR
[1]
6218
[1]
6180, 6185 6180DA, 6185DA, 6180DB, 6185DB 6218NR
[1]
6220
[1]
6190, 6195 6190DA, 6195DA, 6190DB, 6195DB 6221NR
[1]
6026
[1]
6205 6205DA, 6205DB 22220BNRC2 6222C2
6215 6215DA, 6215DB 23022BNRC2 6224C2
6225 6225DA, 6225DB 23024BNRC2 6226C2
6235 6235DA, 6235DB 23026BNRC2 NUP228C2
6245 6245DA, 6245DB 23028BNRC2 NUP230C2
6255 6255DA, 6255DB 23032BNRC2 NUP234C2
6265 6265DA 23034BNRC2 NUP236C2
6275 6275DA 23136BNXR 6340
Note [1]:
For grease lubricated models, a sealed bearing should be used, which changes the following letters in the part number to those shown in bold:
NR (Std.) - ZNR; NXR - ZNXR; None - add Z.
www.SumitomoDrive.com
Cyclo® 6000 Operating and Maintenance Manual
Cyclo® 6000 Cyclo® 6000
Cyclo® 6000 Operating and Maintenance Manual
74 75
18
51
9
10.2 Bearings
10. CONSTRUCTION DRAWINGS 10. CONSTRUCTION DRAWINGS
