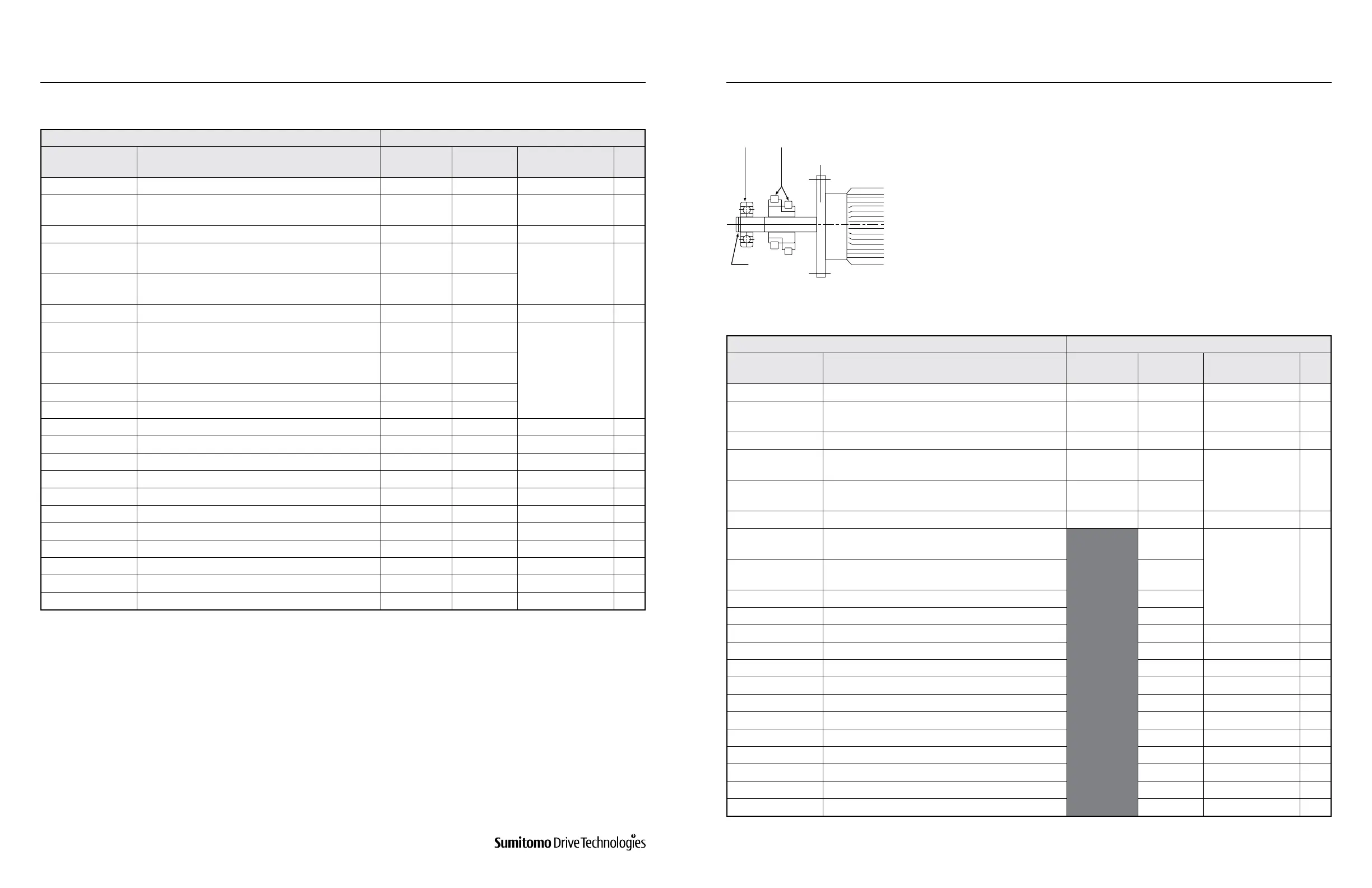

Table 10-3: High Speed Shaft Bearing
Table 10-4: Motor Shaft Bearing
Frame Size High Speed Shaft
Single Reduction Double Reduction
Bearing C
Part #3-02
Bearing D
Part #3-03
Eccentric
Part #3-04
Qty.
6060, 6065 6060DA, 6065DA, 6070DA, 6075DA 6301 6301Z 607YXX 1
6070, 6075
6090DA, 6095DA, 6100DA, 6105DA, 6120DA, 6125DA,
6130DA, 6135DA, 6140DA, 6145DA
6301 6301Z 607YXX 1
6080, 6085 - 6301SH 6302Z 6004RSH2ZZC3 1
6090, 6095
6120DB, 6125DB, 6130DB, 6135DB, 6140DB, 6145DB,
6160DA, 6165DA, 6170DA, 6175DA
6302RSH2 6302Z
Refer to
Table 10-5
1
6100, 6105, 610H
6130DC, 6135DC, 6140DC, 6145DC, 6160DB, 6165DB,
6170DB, 6175DB, 6180DA, 6185DA
6302RSH2 6302Z
6110, 6115 - 6302RSH2 6302Z 611YSS, 611GSS 2
6120, 6125, 612H
6160DC, 6165DC, 6170DC, 6175DC , 6190DA, 6195DA,
6205DA
6304 6305Z
Refer to
Table 10-5
1
6130, 6135
6180DB, 6185DB, 6190DB, 6195DB, 6205DB, 6215DA,
6225DA
6305 6306
6140, 6145, 614H - 6305R 6306
6160, 6165, 616H 6215DB, 6235DA, 6245DA 6307R 6308
6170, 6175 6225DB, 6255DA 6406 6407 617YSX 2
6180, 6185 6235DB, 6245DB 6407 6409 618YSX 2
6190, 6195 6255DB, 6265DA, 6275DA 6408 6411 619YSX 2
6205 - NJ310EV7 21311V1 620GXX 2
6215 - NJ311EV16 21311V1 621GXX 2
6225 - NJ312EV11 21312V1 622GXX 2
6235 - NJ313EV11 21314V1 623GXX 2
6245 - NJ314EV7 21315V1 624GXX 2
6255 - NJ316EV1 21318V1 625GXX 2
6265 - NJ317EV1 21318V1 626GXX 2
6275 - NJ417 22222BL1 627GXX 2
Frame Size Motor Shaft
Single Reduction Double Reduction
Bearing C
Part #3-02
Bearing D
Part #3-03
Eccentric
Part #3-04
Qty.
6060, 6065 6060DA, 6065DA, 6070DA, 6075DA 6301 6301Z 607YXX 1
6070, 6075
6090DA, 6095DA, 6100DA, 6105DA, 6120DA, 6125DA,
6130DA, 6135DA, 6140DA, 6145DA
6301 6301Z 607YXX 1
6080, 6085 - 6301SH 6302Z 6004RSH2ZZC3 1
6090, 6095
6120DB, 6125DB, 6130DB, 6135DB, 6140DB, 6145DB,
6160DA, 6165DA, 6170DA, 6175DA
6302RSH2 6302Z
Refer to
Table 10-5
1
6100, 6105, 610H
6130DC, 6135DC, 6140DC, 6145DC, 6160DB, 6165DB,
6170DB, 6175DB, 6180DA, 6185DA
6302RSH2 6302Z
6110, 6115 - 6302RSH2 6302Z 611YSS, 611GSS 2
6120, 6125, 612H
6160DC, 6165DC, 6170DC, 6175DC , 6190DA, 6195DA,
6205DA
Bearing 3-02
is not used
in these unit
sizes
6305Z
Refer to
Table 10-5
1
6130, 6135
6180DB, 6185DB, 6190DB, 6195DB, 6205DB, 6215DA,
6225DA
6306
6140, 6145, 614H - 6306
6160, 6165, 616H 6215DB, 6235DA, 6245DA 6308
6170, 6175 6255DA, 6255DB 6407 617YSX 2
6180, 6185 6235DB, 6245DB 6409 618YSX 2
6190, 6195 6255DB, 6265DA, 6275DA 6411 619YSX 2
6205 - 21311V1 620GXX 2
6215 - 21311V1 621GXX 2
6225 - 21312V1 622GXX 2
6235 - 21314V1 623GXX 2
6245 - 21315V1 624GXX 2
6255 - 21318V1 625GXX 2
6265 - 21318V1 626GXX 2
6275 - 22222BL1 627GXX 2
Figure 10-14: Motor Shaft
3-02 3-04
Retaining Ring
Motor Shaft
