Sumitomo Bevel Buddybox 4 User Manual

30 Manual BBB4_ENG_01_2016_991301

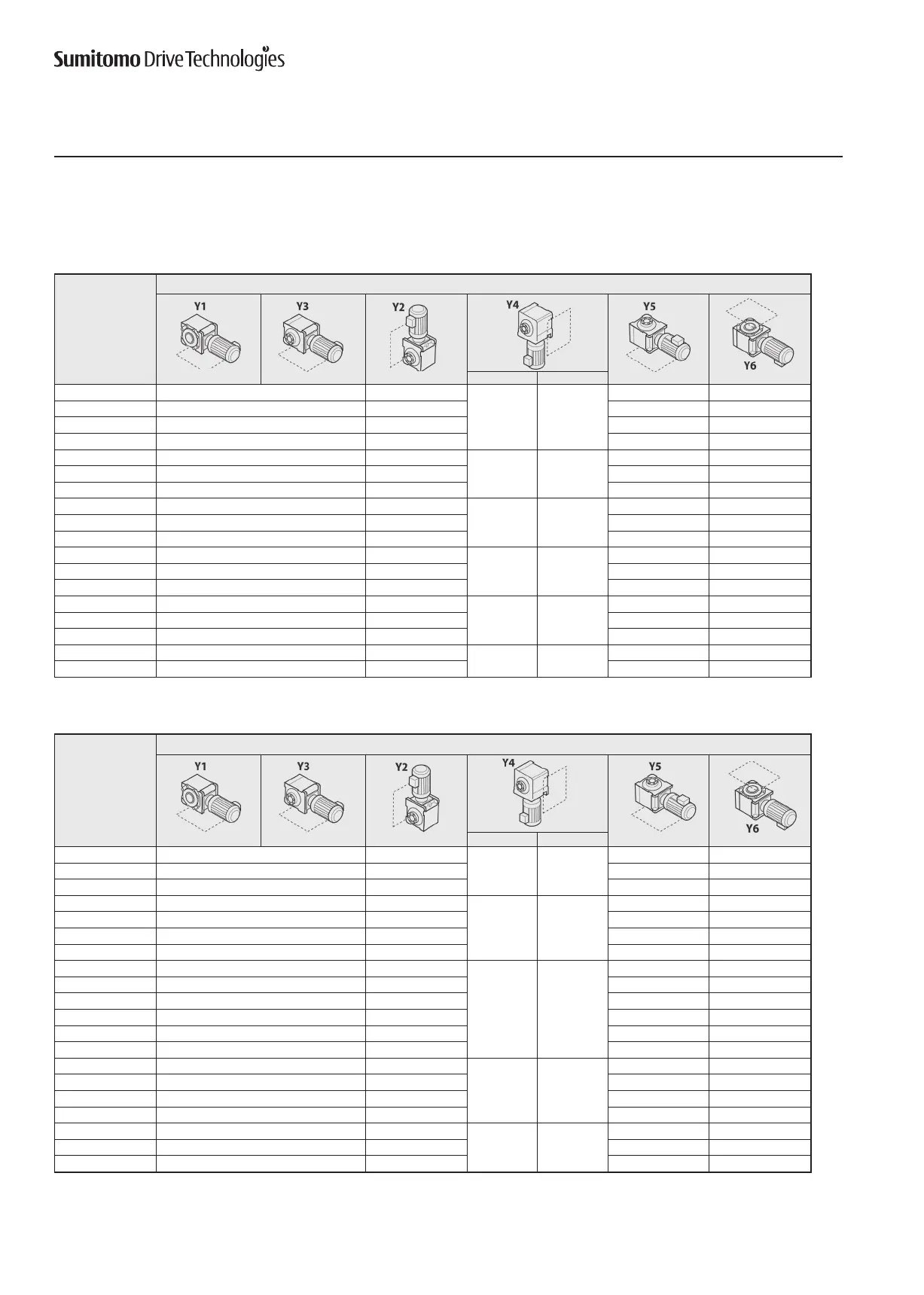

Oil Quantities
Table20.SingleReductionApproximateOilQuantity
Units:LiterNote: Output = Bevel Gear Portion Input = Cyclo Portion
Bevel Gear
Unit Size
MountingConguration
Output Input
4A10
1.62 3.17
1.13 Grease
1.36 1.84
4A11 1.66 3.26 1.40 1.88
4A12 1.71 3.35 1.45 1.93
4A14 1.91 3.77 1.65 2.13
4B12 3.29 6.50
1.72 Grease
3.34 3.23
4B14 3.49 6.97 3.54 3.43
4B16 3.92 7.61 3.97 3.86
4C14 5.52 11.1
2.72 Grease
5.30 5.88
4C16 5.96 11.8 5.74 6.32
4C17 6.34 12.5 6.12 6.70
4D16 10.1 19.9
4.61 Grease
9.69 10.4
4D17 10.4 20.5 10.0 10.8
4D18 10.7 21.0 10.3 11.1
4E17 14.6 28.8
6.26 Grease
13.1 16.1
4E18 14.7 29.1 13.2 16.2
4E19 15.7 30.4 14.2 17.2
4F18 20.0 39.4
7.28 Grease
18.5 21.4
4F19 20.8 40.6 19.3 22.2
Table 21. Double Reduction Approximate Oil Quantity
Units:LiterNote: Output = Bevel Gear Portion Input = Cyclo Portion
Bevel Gear
Unit Size
MountingConguration
Output Input
4A10DA
1.65 3.20
1.13 Grease
1.39 1.87
4A12DA 1.74 3.38 1.48 1.96
4A12DB 1.78 3.43 1.52 2.00
4B12DA 3.32 6.53
1.72 Grease
3.37 3.26
4B12DB 3.36 6.57 3.41 3.30
4B14DA 3.52 7.00 3.57 3.46
4B14DB 3.56 7.04 3.61 3.50
4C14DA 5.55 11.2
2.72 Grease
5.33 5.91
4C14DB 5.59 11.2 5.37 5.95
4C14DC 5.64 11.3 5.42 6.00
4C16DA 6.03 11.8 5.81 5.39
4C16DB 6.08 11.9 5.86 6.44
4C17DA 6.41 12.6 6.19 6.77
4D16DA 10.1 20.0
4.61 Grease
9.76 10.5
4D16DB 10.2 20.0 9.81 10.6
4D17DB 10.5 20.6 10.2 10.9
4D17DC 10.7 20.7 10.3 11.0
4E17DA 14.6 28.8
6.26 Grease
13.1 16.1
4E17DB 14.7 28.9 13.2 16.2
4E17DC 14.8 29.0 13.3 16.3
Lubrication, continued
Oil Quantities
