Sumitomo Bevel Buddybox 4 User Manual

32 Manual BBB4_ENG_01_2016_991301

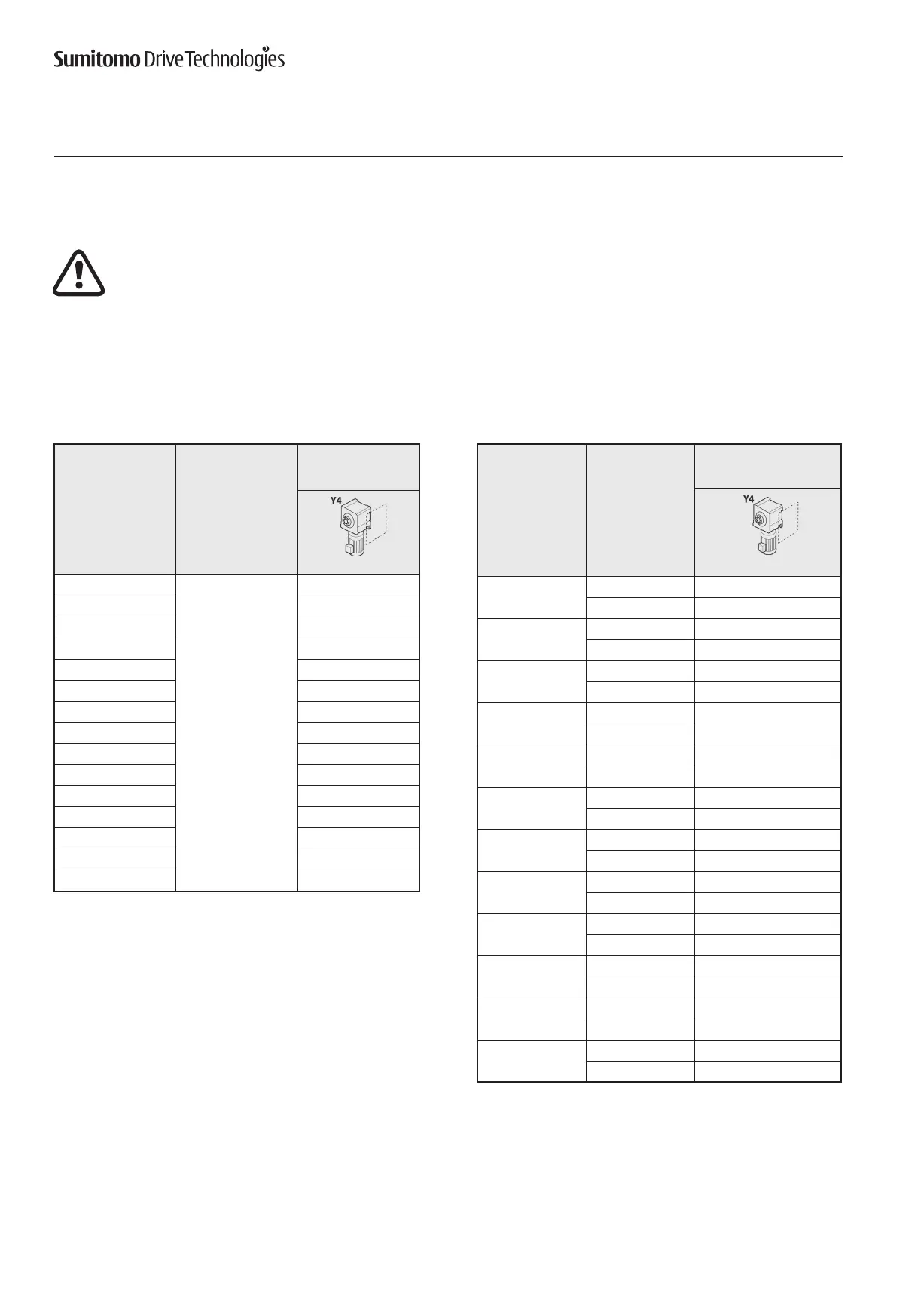

Lubrication, continued
Grease Quantities
Unit Size
Unit Lubrication
Portion
Lube Quantity
gram
only
4A100/105
Cyclo
120
4A110/115 190
4A120/125 250
4A140/145 450
4B120/125 250
4B140/145 450
4B160/165 750
4C140/145 450
4C160/165 750
4C170/175 1000
4D160/165 750
4D170/175 1000
4E170/175 1000
4F180/185 1100
4F190/195 1500
Unit Size Cyclo Stage
Lube Quantity
gram
only
4A10DA
First (Input) 25
Second 120
4A12DA
First (Input) 25
Second 250
4A12DB
First (Input) 60
Second 250
4B12DA
First (Input) 25
Second 250
4B12DB
First (Input) 60
Second 250
4B14DA
First (Input) 25
Second 450
4B14DB
First (Input) 60
Second 450
4C14DA
First (Input) 25
Second 450
4C14DB
First (Input) 60
Second 450
4C14DC
First (Input) 120
Second 450
4C16DA
First (Input) 60
Second 750
4C16DB
First (Input) 120
Second 750
Grease Quantities
•GreasequantitieslistedinthissectionarefortheCycloportionofthereducer/gearmotor.
•TheBevelportionisalwaysoillubricatedunlessotherwisespeciedattimeoforderentry.
•RefertotheOilQuantitiessection,Tables20&21.forBevelportionoilquantities.
•InstallinggreaseintoBevelGearportionwillresultindamagetotheunit.
The Cyclo (input) portion of only Y4 double reduction units is grease lubricated at the factory. Additional grease is not required before initial
start-up. All assemblies other than Y4 have oil lubricated Cyclo portions. The following tables are provided for user rebuild or refurbishment
reference.
Table22.SingleReductionApproximateGreaseQuantity
Units:gram
Table 23. Double Reduction Approximate Grease Quantity
Units:gram
